A12010.8
A12010.8
A12010.8

A12010.8

UGC DOR5968538
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.30 CAD - $19.30 CAD
$19.30 CAD
$19.30 CAD - $19.30 CAD
$19.30 CAD

Vendu en lots de : 5

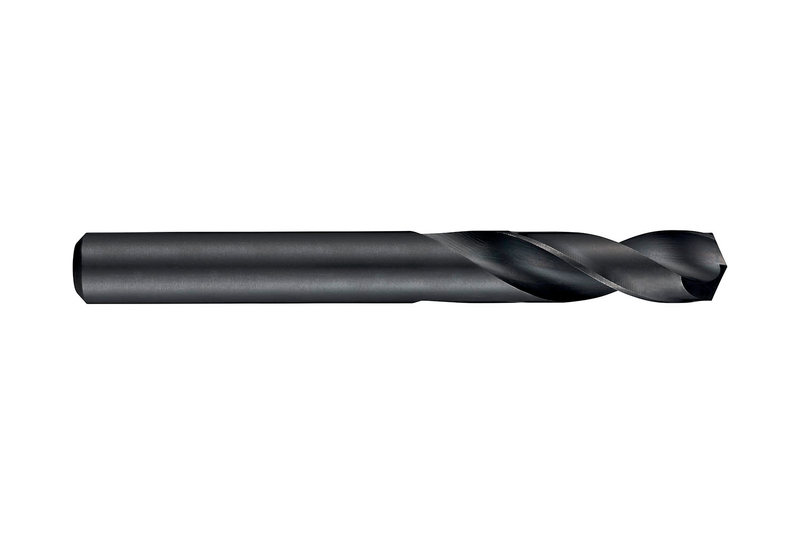

Foret court à queue cylindrique, diamètre 10,8 mm, longueur totale 95 mm et longueur de coupe 47 mm, selon la norme DIN 1897, avec pointe en croix à 135°, en acier rapide (HSS) avec finition revenue à la vapeur pour le perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12010.8
GradeTrempé à la vapeur
Product Number5968538
Product FamilyA120
Dimensions
Cutting Diameter — in (DC)0.4252"
Cutting Diameter — mm (DC)10.8 mm
Overall Length — in (OAL)3.7402"
Overall Length — mm (OAL)95.0 mm
Flute Length — in (LCF)1.8504"
Flute Length — mm (LCF)47.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4252"
Connection Dia. — mm (DCON)10.8 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number16442
EAN7320760016442
File Type Download
A12010.8 — 3D Model STP Download
A12010.8 — Line Drawing PDF Download
