A1206.7
A1206.7
A1206.7

A1206.7

UGC DOR5968547
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.90 CAD - $9.90 CAD
$9.90 CAD
$9.90 CAD - $9.90 CAD
$9.90 CAD

Vendu en lots de : 10

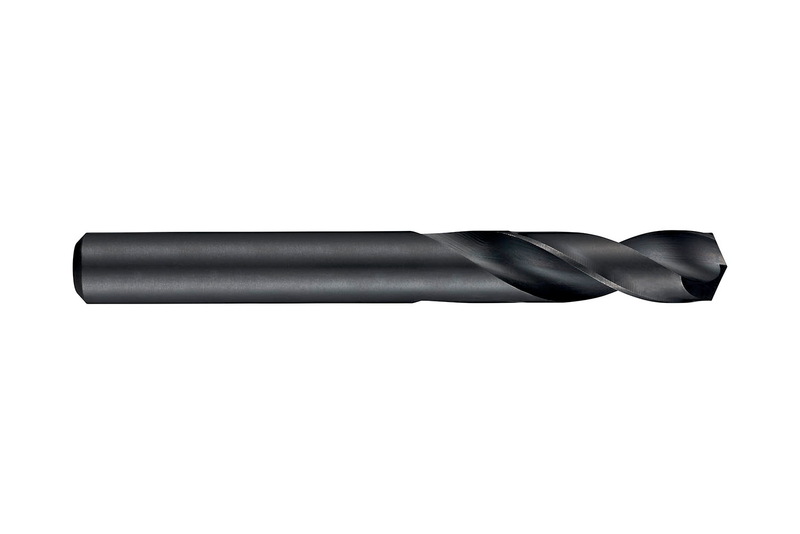

Foret court à queue cylindrique, diamètre 6,7 mm, longueur totale 70 mm et longueur de coupe 31 mm, conforme à la norme DIN 1897, avec pointe en croix à 135°, en acier rapide (HSS) avec finition revenu vapeur pour un perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1206.7
GradeTrempé à la vapeur
Product Number5968547
Product FamilyA120
Dimensions
Cutting Diameter — in (DC)0.2638"
Cutting Diameter — mm (DC)6.7 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Flute Length — in (LCF)1.2205"
Flute Length — mm (LCF)31.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2638"
Connection Dia. — mm (DCON)6.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number17876
EAN7320760017876
File Type Download
A1206.7 — 3D Model STP Download
A1206.7 — Line Drawing PDF Download
