A12011.0
A12011.0
A12011.0

A12011.0

UGC DOR5968553
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.91 CAD - $16.91 CAD
$16.91 CAD
$16.91 CAD - $16.91 CAD
$16.91 CAD

Vendu en lots de : 5

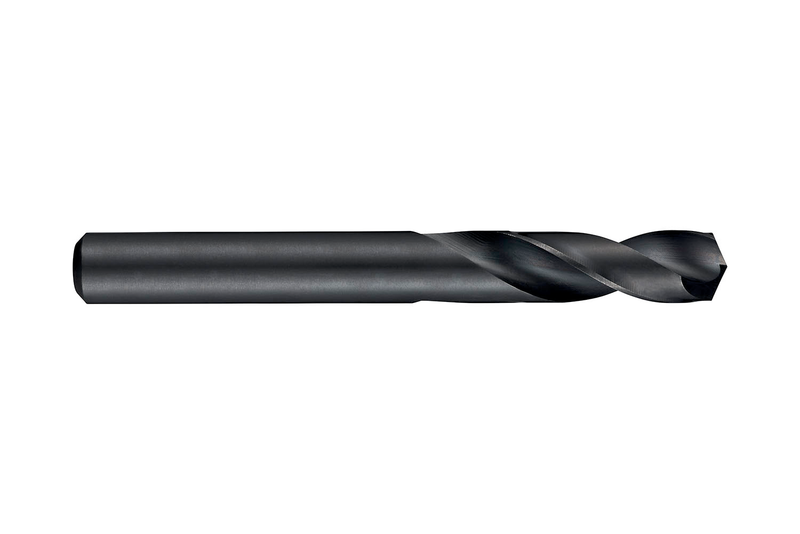

Foret court à queue cylindrique, diamètre 11 mm, longueur totale 95 mm et longueur de coupe 47 mm, conforme à la norme DIN 1897, avec pointe en croix à 135°, en acier rapide HSS, avec finition revenu vapeur pour un perçage sans débourrage jusqu'à 2,5xD dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12011.0
GradeTrempé à la vapeur
Product Number5968553
Product FamilyA120
Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)3.7402"
Overall Length — mm (OAL)95.0 mm
Flute Length — in (LCF)1.8504"
Flute Length — mm (LCF)47.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number16466
EAN7320760016466
File Type Download
A12011.0 — 3D Model STP Download
A12011.0 — Line Drawing PDF Download
