A1207.8
A1207.8
A1207.8

A1207.8

UGC DOR5968626
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.74 CAD - $15.74 CAD
$15.74 CAD
$15.74 CAD - $15.74 CAD
$15.74 CAD

Vendu en lots de : 10

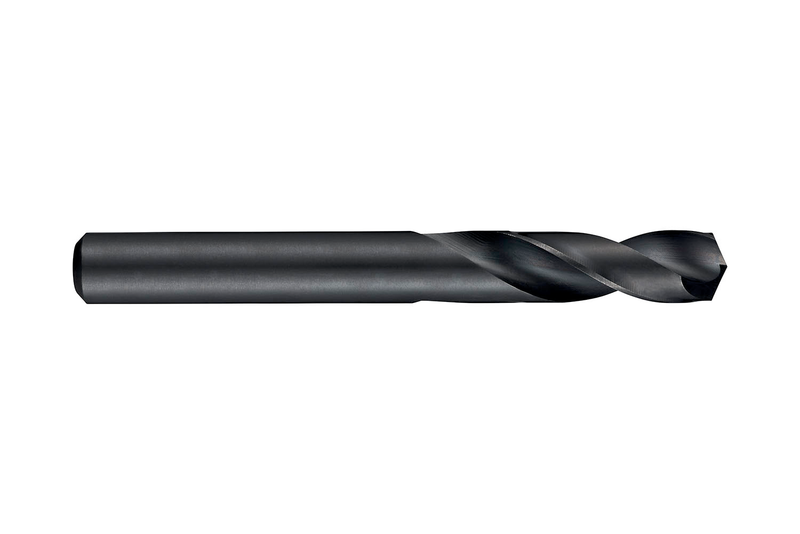

Forets courts à queue cylindrique, diamètre 7,8mm, longueur totale 79mm, longueur de coupe 37mm selon la norme DIN 1897 avec pointe fendue à 135°, HSS avec finition trempée vapeur pour perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1207.8
GradeTrempé à la vapeur
Product Number5968626
Product FamilyA120
Dimensions
Cutting Diameter — in (DC)0.3071"
Cutting Diameter — mm (DC)7.8 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)1.4567"
Flute Length — mm (LCF)37.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3071"
Connection Dia. — mm (DCON)7.8 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number18002
EAN7320760018002
File Type Download
A1207.8 — 3D Model STP Download
A1207.8 — Line Drawing PDF Download
