A12212.0X120
A12212.0X120
A12212.0X120
A12212.0X120

A12212.0X120

UGC DOR5968642
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.14 CAD - $49.14 CAD
$49.14 CAD
$49.14 CAD - $49.14 CAD
$49.14 CAD

Vendu en lots de : 5

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12212.0X120
GradeLumineux
Product Number5968642
Product FamilyA122

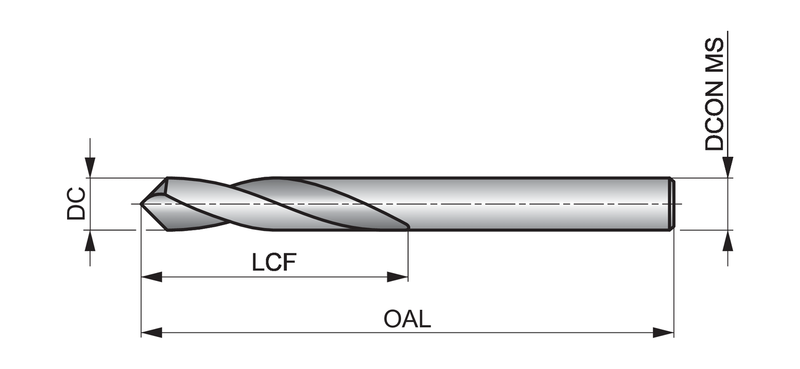

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Flute Length — in (LCF)1.5748"
Flute Length — mm (LCF)40.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number19177
EAN7320760019177
File Type Download
A12212.0X120 — 3D Model STP Download
A12212.0X120 — Line Drawing PDF Download
