A12220.0X90
A12220.0X90
A12220.0X90
A12220.0X90

A12220.0X90

UGC DOR5968652
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.59 CAD - $102.59 CAD
$102.59 CAD
$102.59 CAD - $102.59 CAD
$102.59 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12220.0X90
GradeLumineux
Product Number5968652
Product FamilyA122

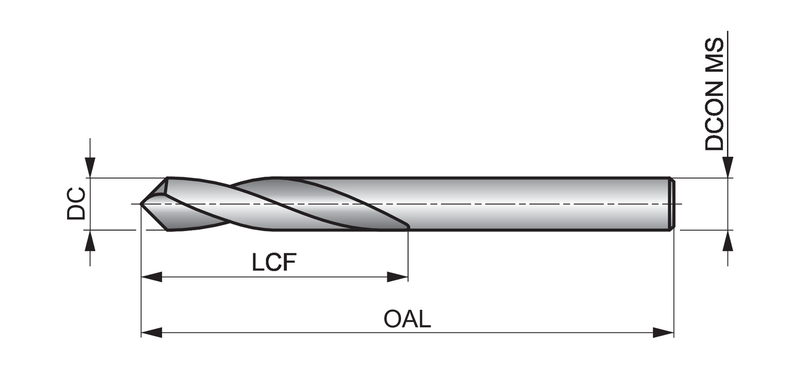

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)5.1575"
Overall Length — mm (OAL)131.0 mm
Flute Length — in (LCF)2.1654"
Flute Length — mm (LCF)55.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number19221
EAN7320760019221
File Type Download
A12220.0X90 — 3D Model STP Download
A12220.0X90 — Line Drawing PDF Download
