A1207.9
A1207.9
A1207.9

A1207.9

UGC DOR5968654
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.66 CAD - $16.66 CAD
$16.66 CAD
$16.66 CAD - $16.66 CAD
$16.66 CAD

Vendu en lots de : 10

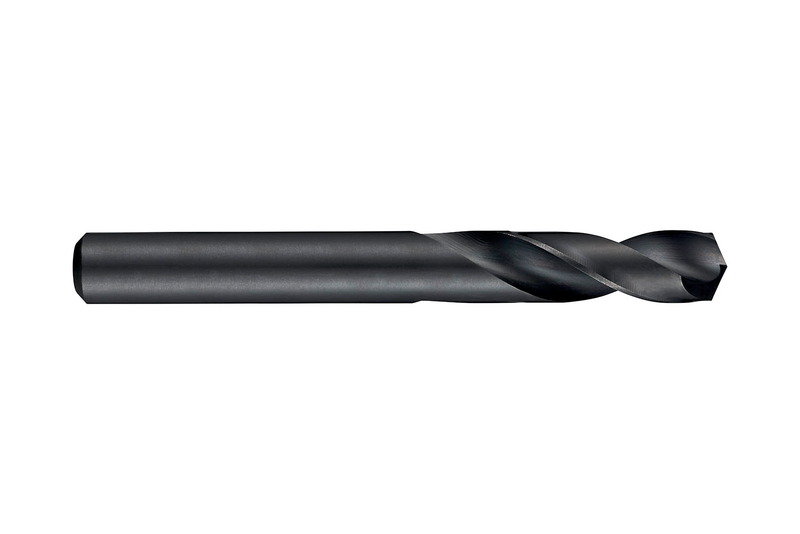

Foret court à queue cylindrique, diamètre 7,9mm, longueur totale 79mm et longueur de la partie coupante 37mm selon la norme DIN 1897 avec pointe auto-centrante à 135°, en acier rapide (HSS) finition trempée vapeur pour le perçage de 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1207.9
GradeTrempé à la vapeur
Product Number5968654
Product FamilyA120
Dimensions
Cutting Diameter — in (DC)0.311"
Cutting Diameter — mm (DC)7.9 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)1.4567"
Flute Length — mm (LCF)37.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.311"
Connection Dia. — mm (DCON)7.9 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number18019
EAN7320760018019
File Type Download
A1207.9 — 3D Model STP Download
A1207.9 — Line Drawing PDF Download
