A1226.0X120
A1226.0X120
A1226.0X120
A1226.0X120

A1226.0X120

UGC DOR5968656
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.87 CAD - $18.87 CAD
$18.87 CAD
$18.87 CAD - $18.87 CAD
$18.87 CAD

Vendu en lots de : 10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1226.0X120
GradeLumineux
Product Number5968656
Product FamilyA122

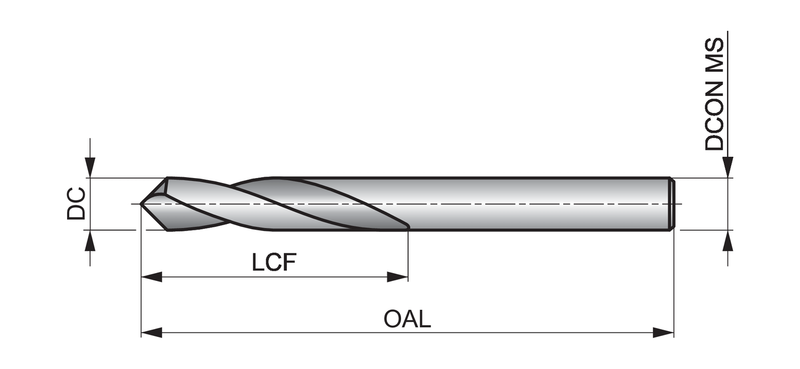

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)1.1811"
Flute Length — mm (LCF)30.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number19238
EAN7320760019238
File Type Download
A1226.0X120 — 3D Model STP Download
A1226.0X120 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
