UGC DOR5968690
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.09 CAD - $165.09 CAD
$165.09 CAD
$165.09 CAD - $165.09 CAD
$165.09 CAD

Vendu en lots de : 1

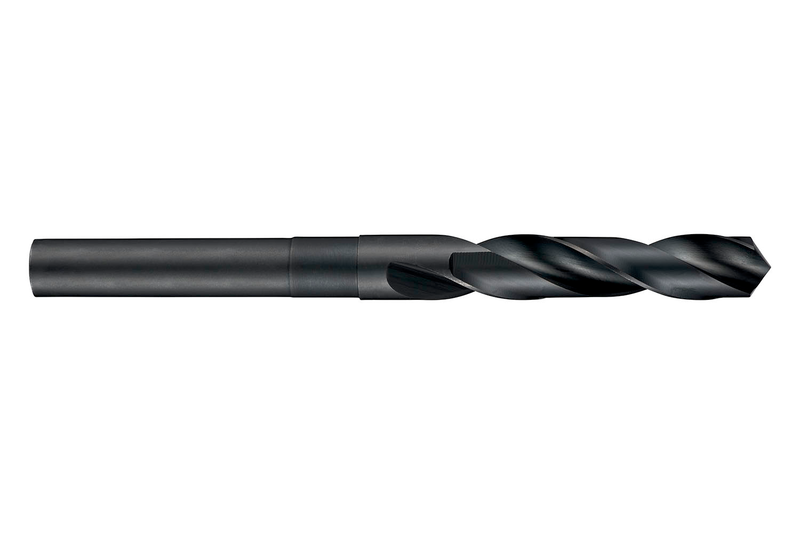

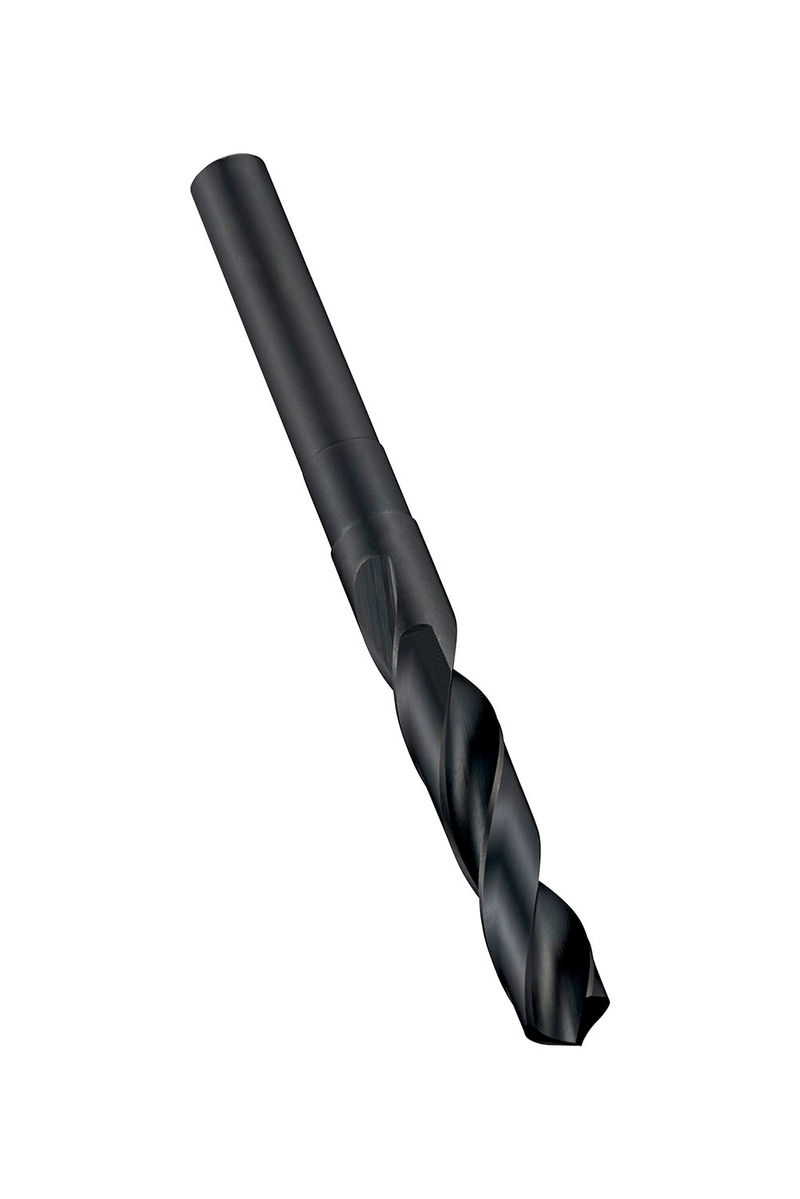

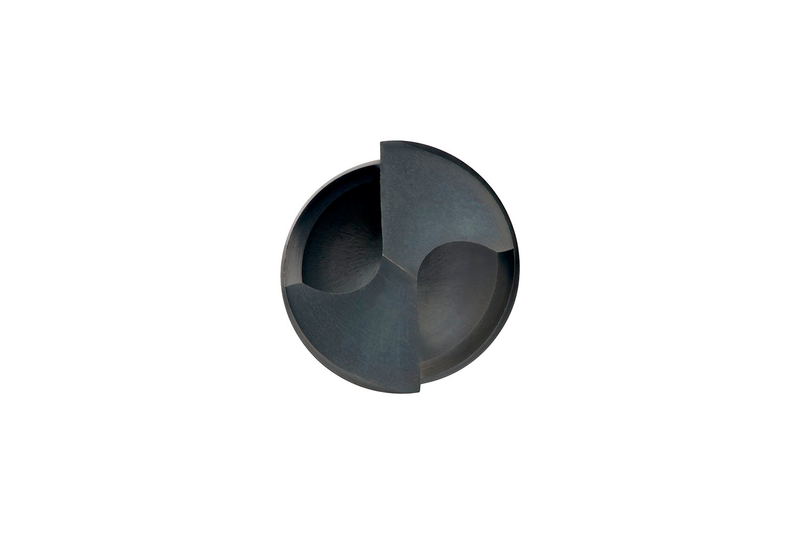

Foret de longueur standard avec queue cylindrique réduite de 12,7 mm (1/2"), diamètre de 15,5 mm, longueur totale de 156 mm et longueur de coupe de 83 mm selon la norme DORMER, avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A17015.5
GradeTrempé à la vapeur
Product Number5968690
Product FamilyA170
Dimensions
Cutting Diameter — in (DC)0.6102"
Cutting Diameter — mm (DC)15.5 mm
Overall Length — in (OAL)6.1417"
Overall Length — mm (OAL)156.0 mm
Flute Length — in (LCF)3.2677"
Flute Length — mm (LCF)83.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number30226
EAN7320760030226
File Type Download
A17015.5 — 3D Model STP Download
A17015.5 — Line Drawing PDF Download
