UGC DOR5968702
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.31 CAD - $108.31 CAD
$108.31 CAD
$108.31 CAD - $108.31 CAD
$108.31 CAD

Vendu en lots de : 1

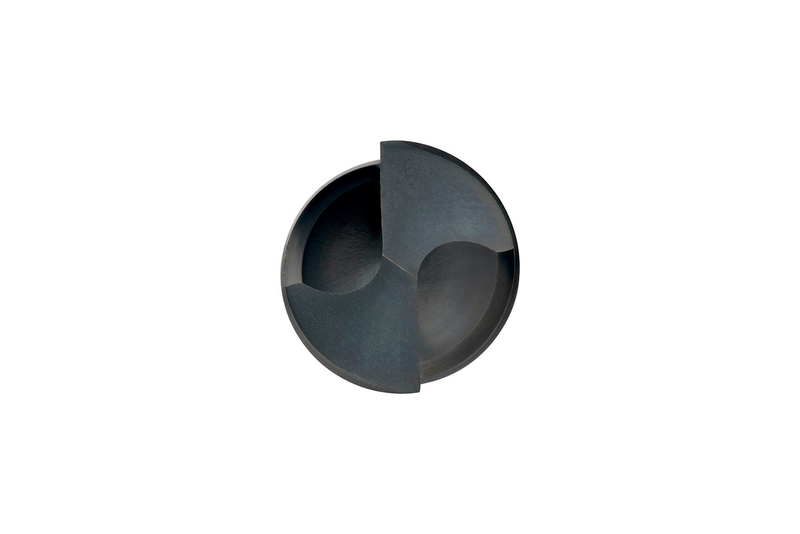

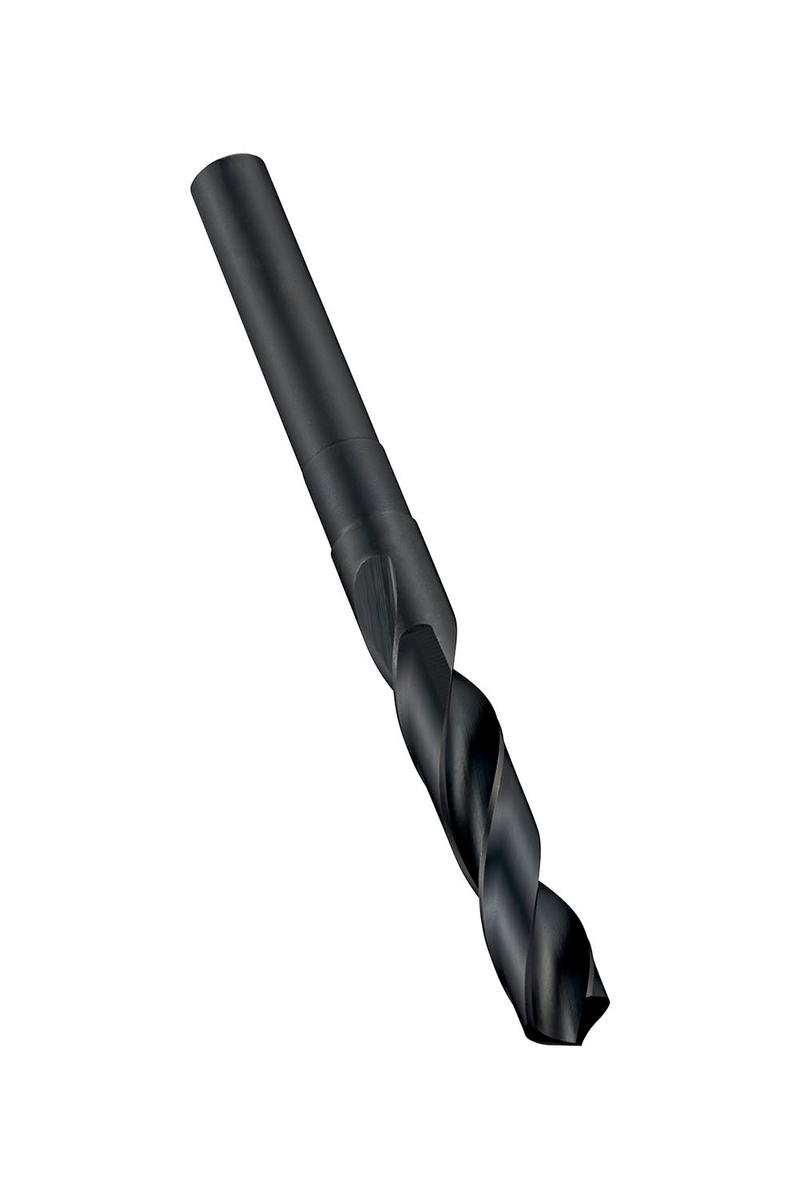

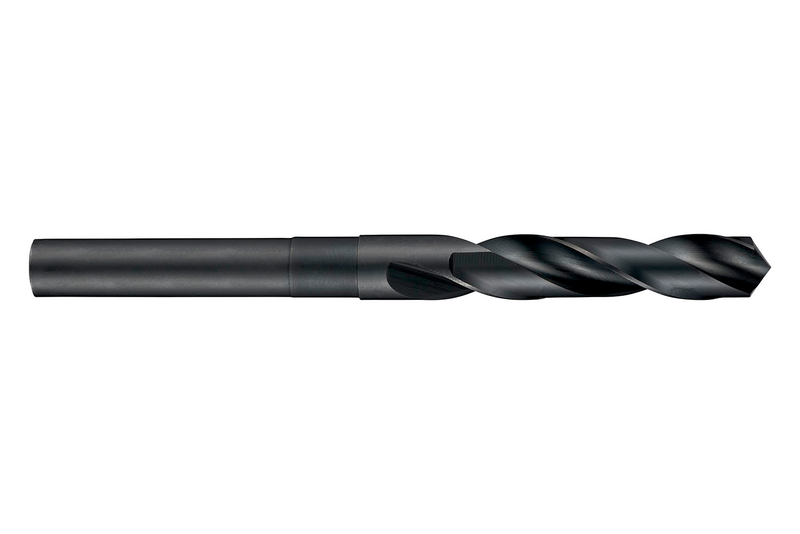

Foret de longueur standard à queue cylindrique réduite de 1/2", diamètre 17 mm avec une longueur totale de 157 mm et une longueur de goujure de 84 mm selon la norme DORMER avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A17017.0
GradeTrempé à la vapeur
Product Number5968702
Product FamilyA170
Dimensions
Cutting Diameter — in (DC)0.6693"
Cutting Diameter — mm (DC)17.0 mm
Overall Length — in (OAL)6.1811"
Overall Length — mm (OAL)157.0 mm
Flute Length — in (LCF)3.3071"
Flute Length — mm (LCF)84.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number30264
EAN7320760030264
File Type Download
A17017.0 — 3D Model STP Download
A17017.0 — Line Drawing PDF Download
