A1308.6
A1308.6
A1308.6

A1308.6

UGC DOR5968724
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.60 CAD - $60.60 CAD
$60.60 CAD
$60.60 CAD - $60.60 CAD
$60.60 CAD

Vendu en lots de : 1

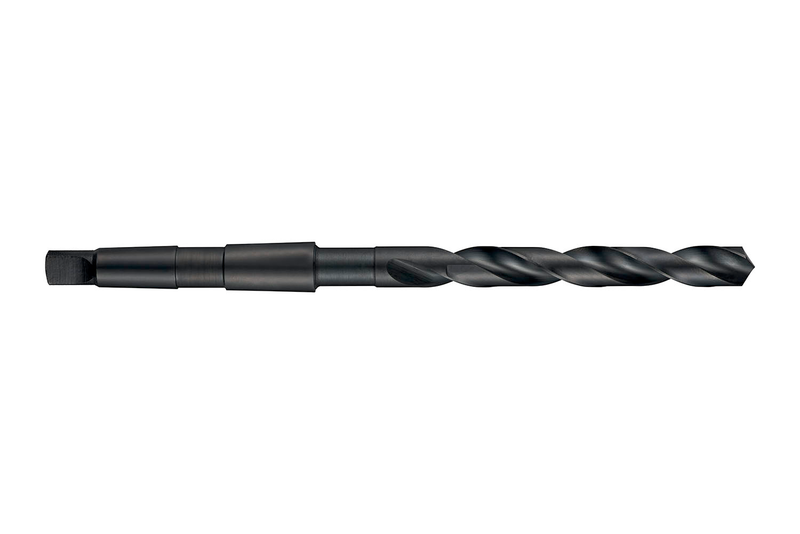

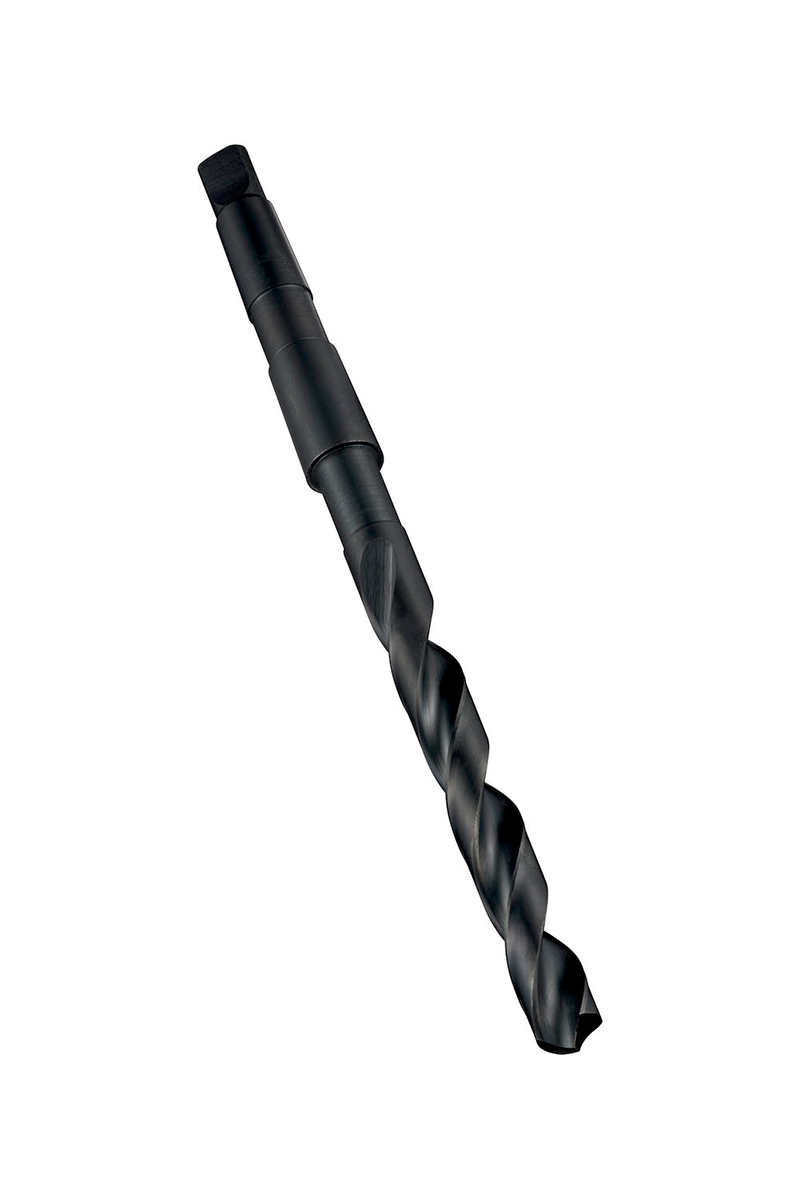

Foret jobber à queue conique, diamètre 8,6 mm avec une longueur totale de 162 mm et une longueur de coupe de 81 mm selon la norme DIN 345 avec une pointe conique amincie de 118°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1308.6
GradeTrempé à la vapeur
Product Number5968724
Product FamilyA130
Dimensions
Cutting Diameter — in (DC)0.3386"
Cutting Diameter — mm (DC)8.6 mm
Overall Length — in (OAL)6.378"
Overall Length — mm (OAL)162.0 mm
Flute Length — in (LCF)3.189"
Flute Length — mm (LCF)81.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number25932
EAN7320760025932
File Type Download
A1308.6 — 3D Model STP Download
A1308.6 — Line Drawing PDF Download
