A1308.7
A1308.7
A1308.7

A1308.7

UGC DOR5968732
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.60 CAD - $60.60 CAD
$60.60 CAD
$60.60 CAD - $60.60 CAD
$60.60 CAD

Vendu en lots de : 1

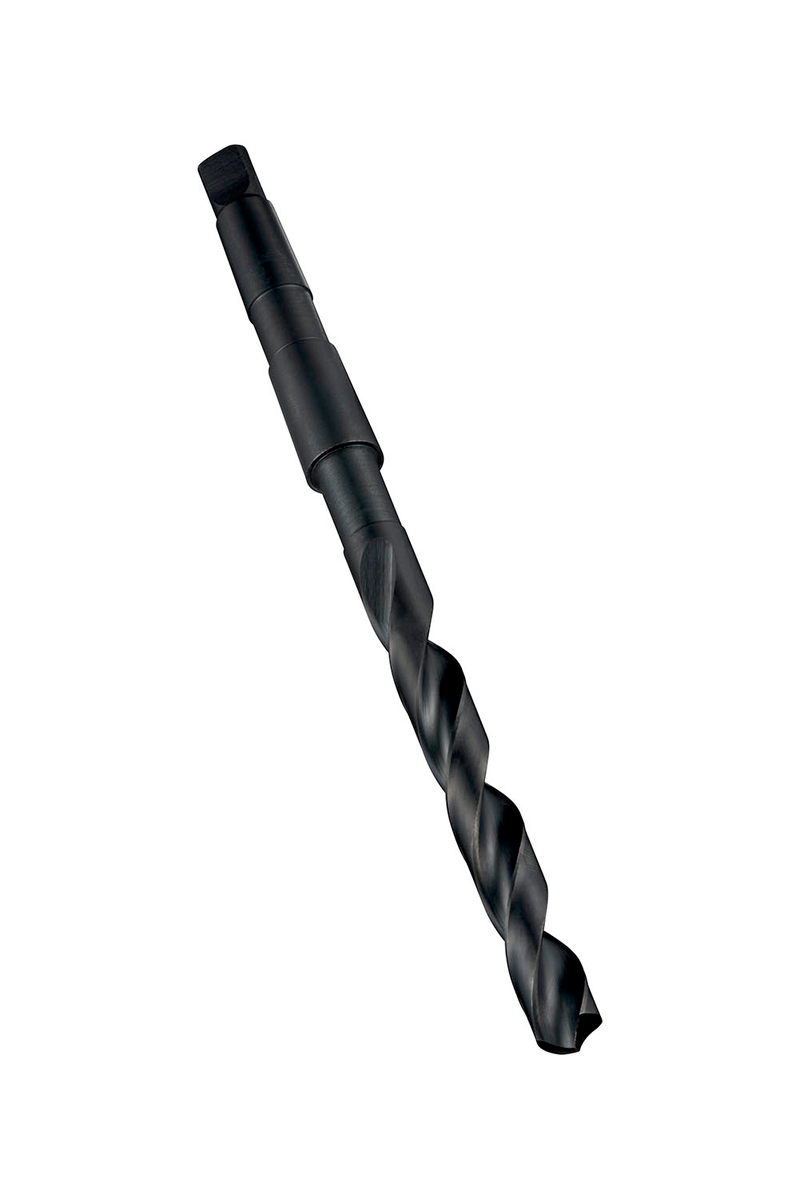

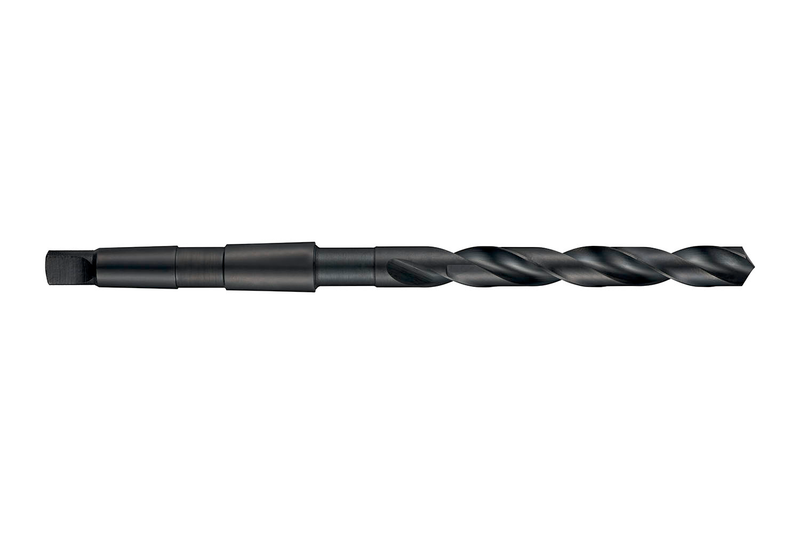

Foret queue conique longueur Jobber, diamètre 8,7 mm, longueur totale 162 mm et longueur de coupe 81 mm selon la norme DIN 345 avec pointe conique amincie 118°, en HSS avec finition trempée vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1308.7
GradeTrempé à la vapeur
Product Number5968732
Product FamilyA130
Dimensions
Cutting Diameter — in (DC)0.3425"
Cutting Diameter — mm (DC)8.7 mm
Overall Length — in (OAL)6.378"
Overall Length — mm (OAL)162.0 mm
Flute Length — in (LCF)3.189"
Flute Length — mm (LCF)81.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number25949
EAN7320760025949
File Type Download
A1308.7 — 3D Model STP Download
A1308.7 — Line Drawing PDF Download
