A1251.8X160
A1251.8X160
A1251.8X160
A1251.8X160

A1251.8X160

UGC DOR5968837
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.86 CAD - $45.86 CAD
$45.86 CAD
$45.86 CAD - $45.86 CAD
$45.86 CAD

Vendu en lots de : 1

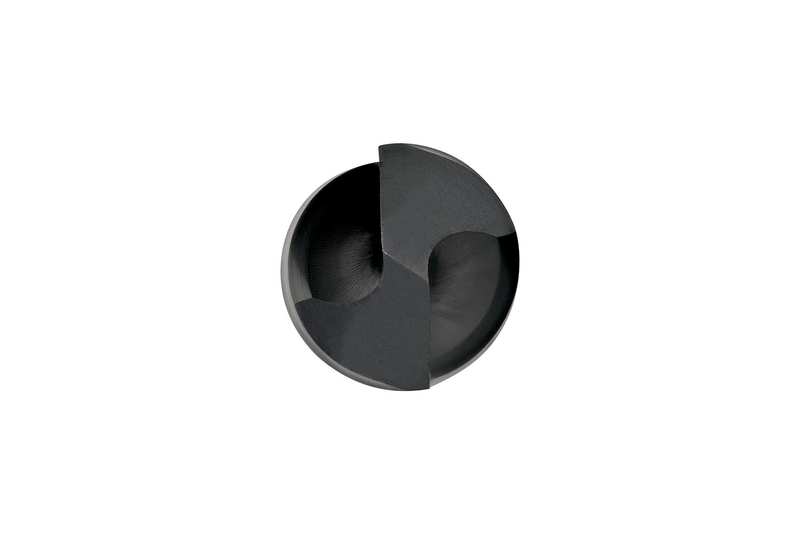

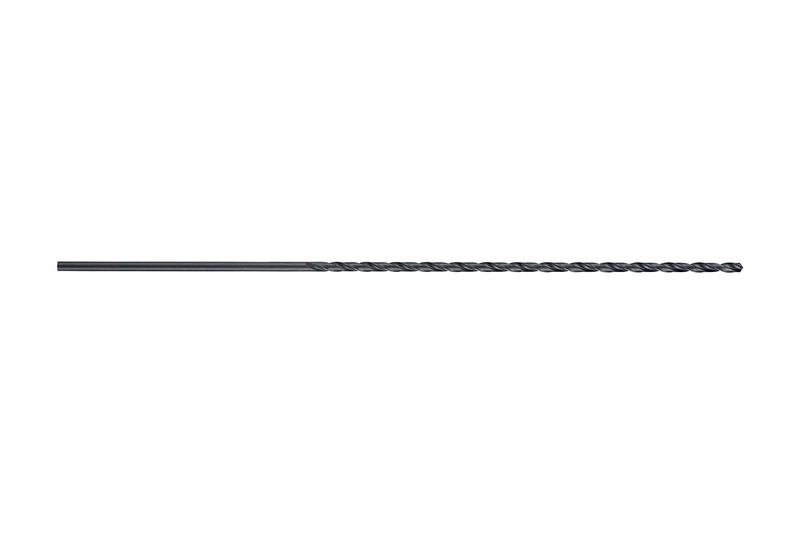

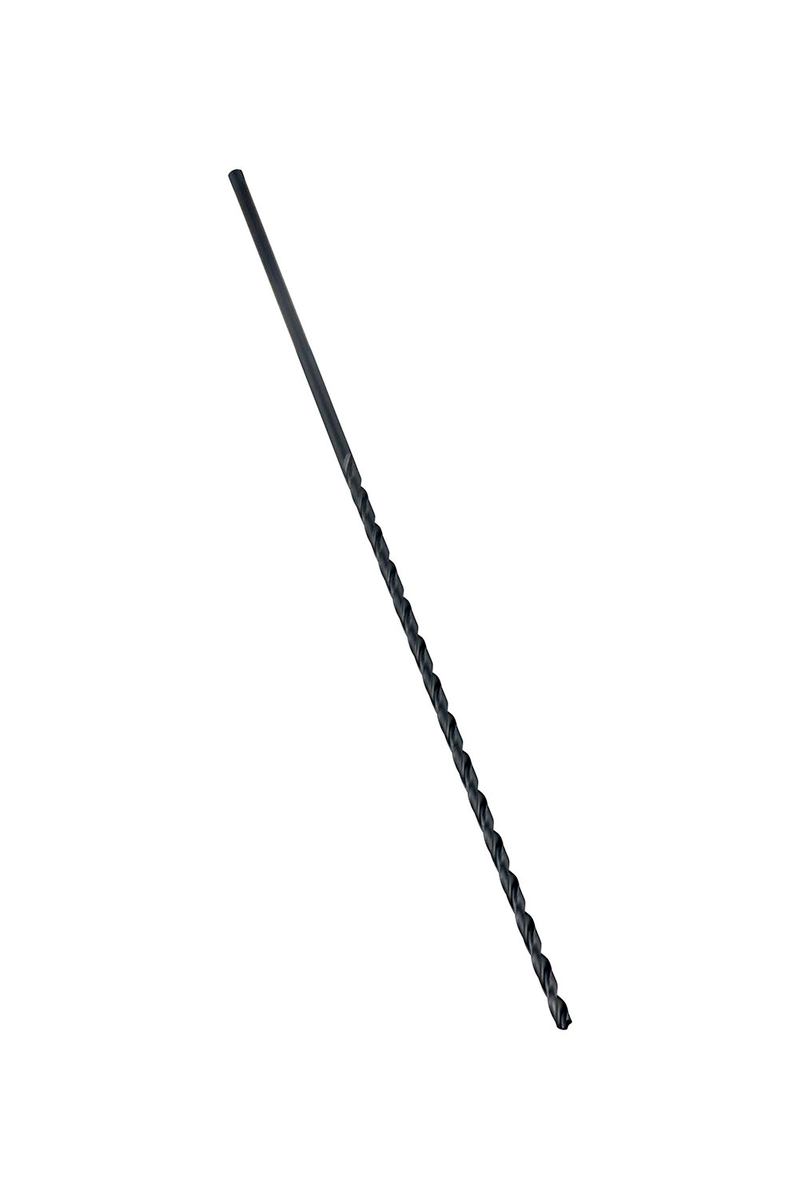

Foret extra-long à queue cylindrique, diamètre 1,8 mm avec une longueur totale de 160 mm et une longueur de coupe de 100 mm selon la norme BS 328 avec pointe conique à 118°, HSS avec finition brillante pour un perçage 10xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1251.8X160
GradeLumineux
Product Number5968837
Product FamilyA125
Dimensions
Cutting Diameter — in (DC)0.0709"
Cutting Diameter — mm (DC)1.8 mm
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Flute Length — in (LCF)3.937"
Flute Length — mm (LCF)100.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.0709"
Connection Dia. — mm (DCON)1.8 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number19863
EAN7320760019863
File Type Download
A1251.8X160 — 3D Model STP Download
A1251.8X160 — Line Drawing PDF Download
