A17049/64
A17049/64
A17049/64
A17049/64

A17049/64

UGC DOR5968842
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.80 CAD - $66.80 CAD
$66.80 CAD
$66.80 CAD - $66.80 CAD
$66.80 CAD

Vendu en lots de : 1

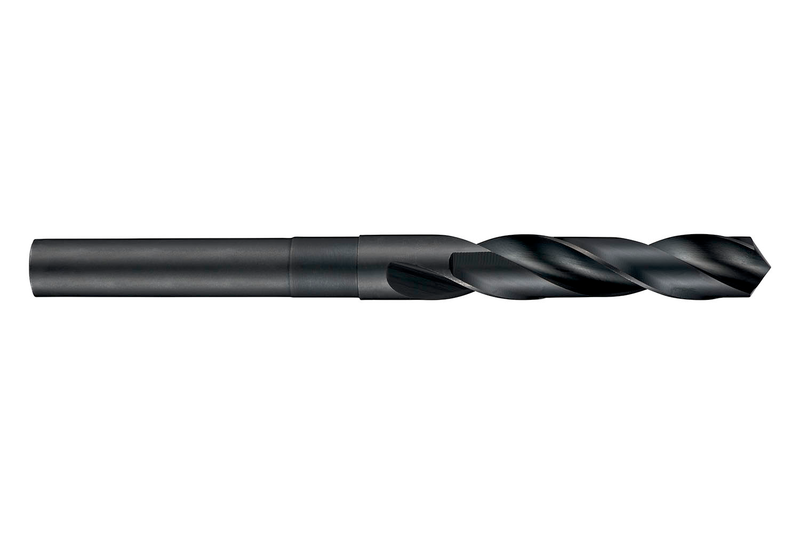

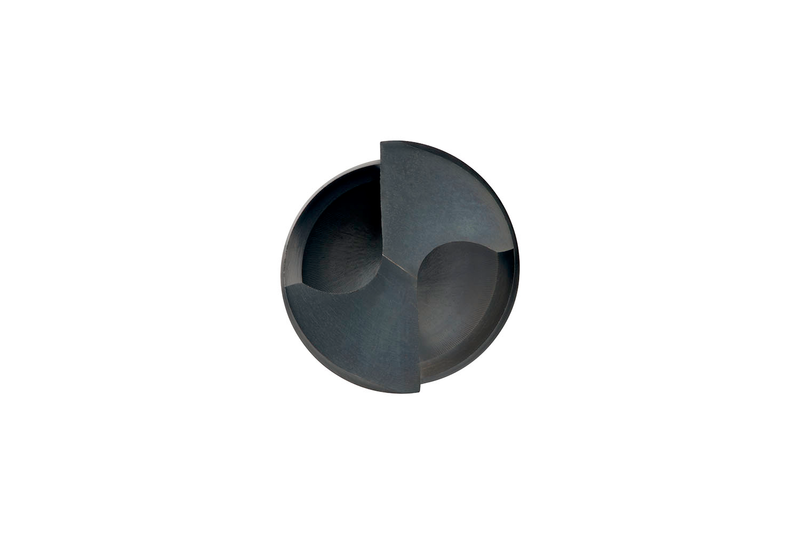

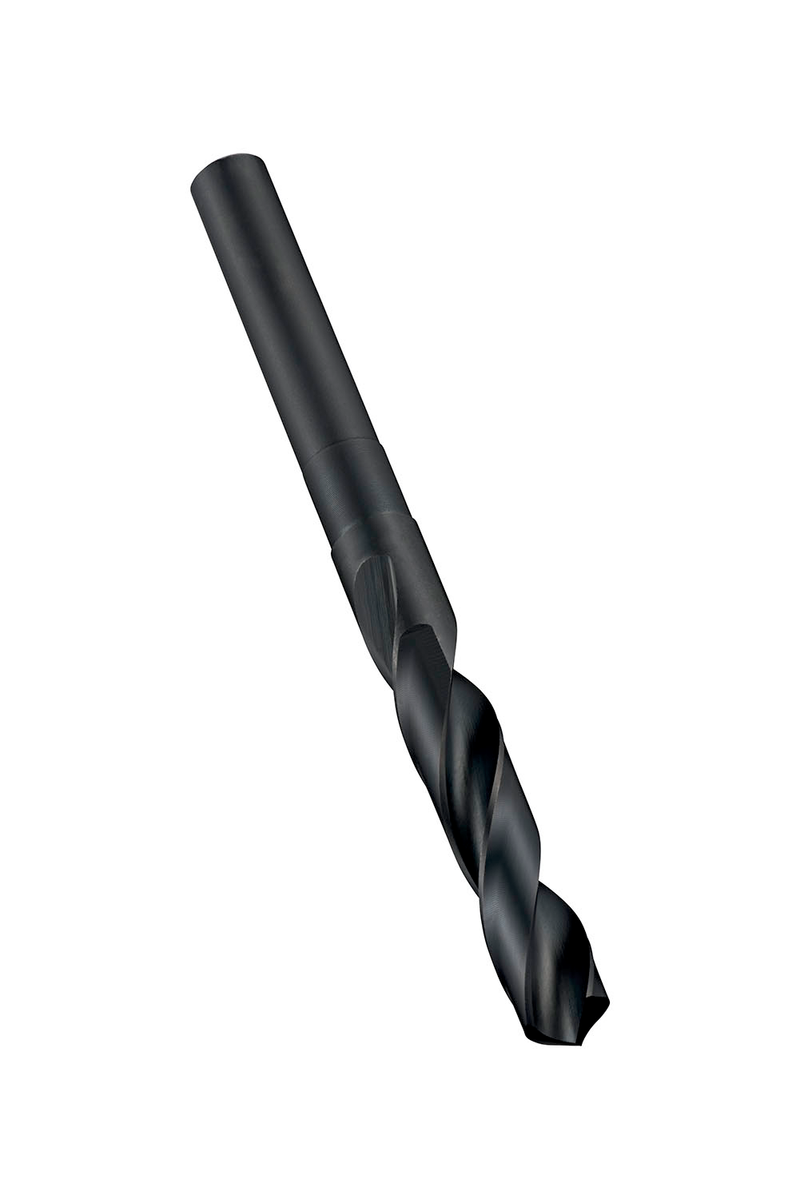

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre 0,7656" (49/64) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme DORMER avec un angle de pointe de 118°, HSS avec finition trempe à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A17049/64
GradeTrempé à la vapeur
Product Number5968842
Product FamilyA170
Dimensions
Cutting Diameter — in (DC)0.7656"
Cutting Diameter — mm (DC)19.45 mm
Cutting Diameter — Fractional49/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number121931
EAN7320760121931
File Type Download
A17049/64 — 3D Model STP Download
A17049/64 — Line Drawing PDF Download
