UGC DOR5968854
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.54 CAD - $34.54 CAD
$34.54 CAD
$34.54 CAD - $34.54 CAD
$34.54 CAD

Vendu en lots de : 1

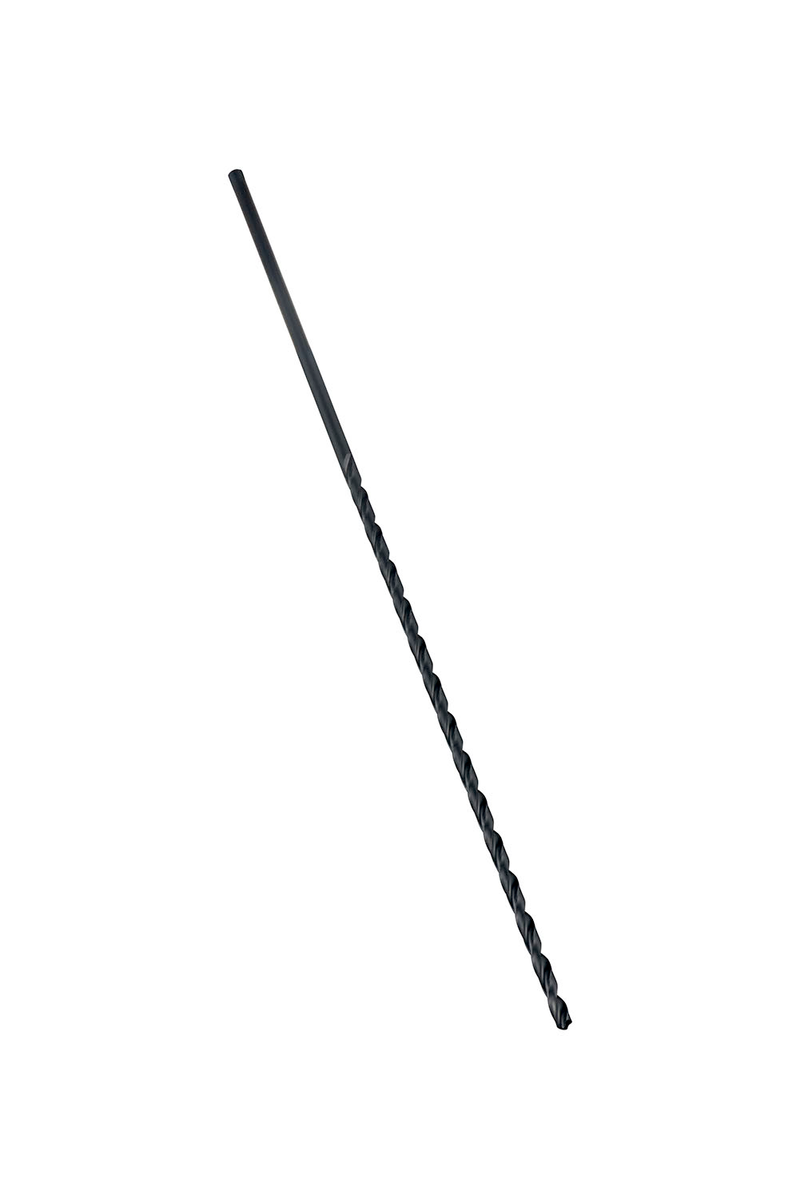

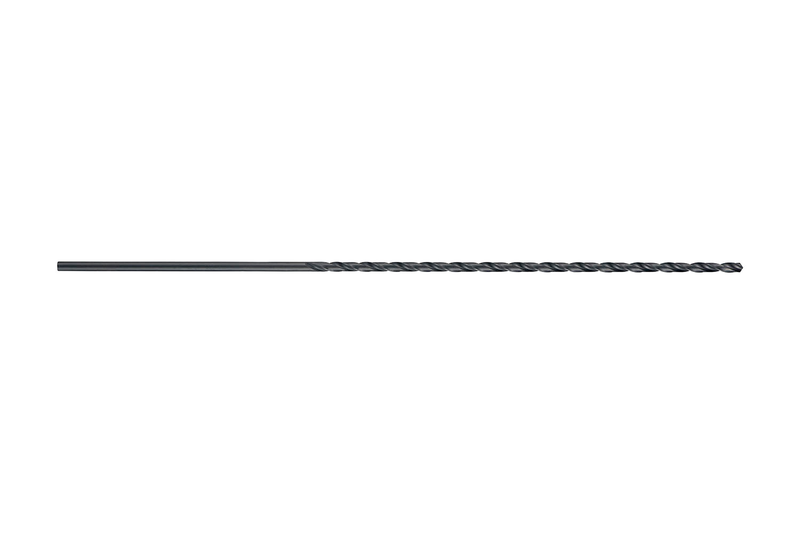

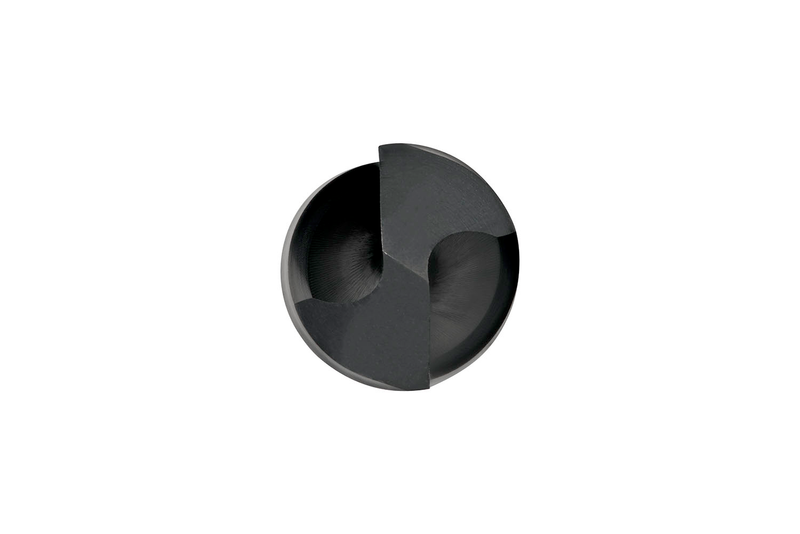

Foret extra-long à queue cylindrique, diamètre 0,0781" (5/64) avec une longueur totale de 125 mm et une longueur de coupe de 80 mm selon la norme BS 328 avec une pointe conique de 118°, en HSS avec finition brillante pour un perçage 10xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1255/64X125
GradeLumineux
Product Number5968854
Product FamilyA125
Dimensions
Cutting Diameter — in (DC)0.0781"
Cutting Diameter — mm (DC)1.98 mm
Cutting Diameter — Fractional5/64
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Flute Length — in (LCF)3.1496"
Flute Length — mm (LCF)80.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.078"
Connection Dia. — mm (DCON)1.98 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number173671
EAN7320760173671
File Type Download
A1255/64X125 — 3D Model STP Download
A1255/64X125 — Line Drawing PDF Download
