A13011.0
A13011.0
A13011.0

A13011.0

UGC DOR5968957
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.57 CAD - $50.57 CAD
$50.57 CAD
$50.57 CAD - $50.57 CAD
$50.57 CAD

Vendu en lots de : 1

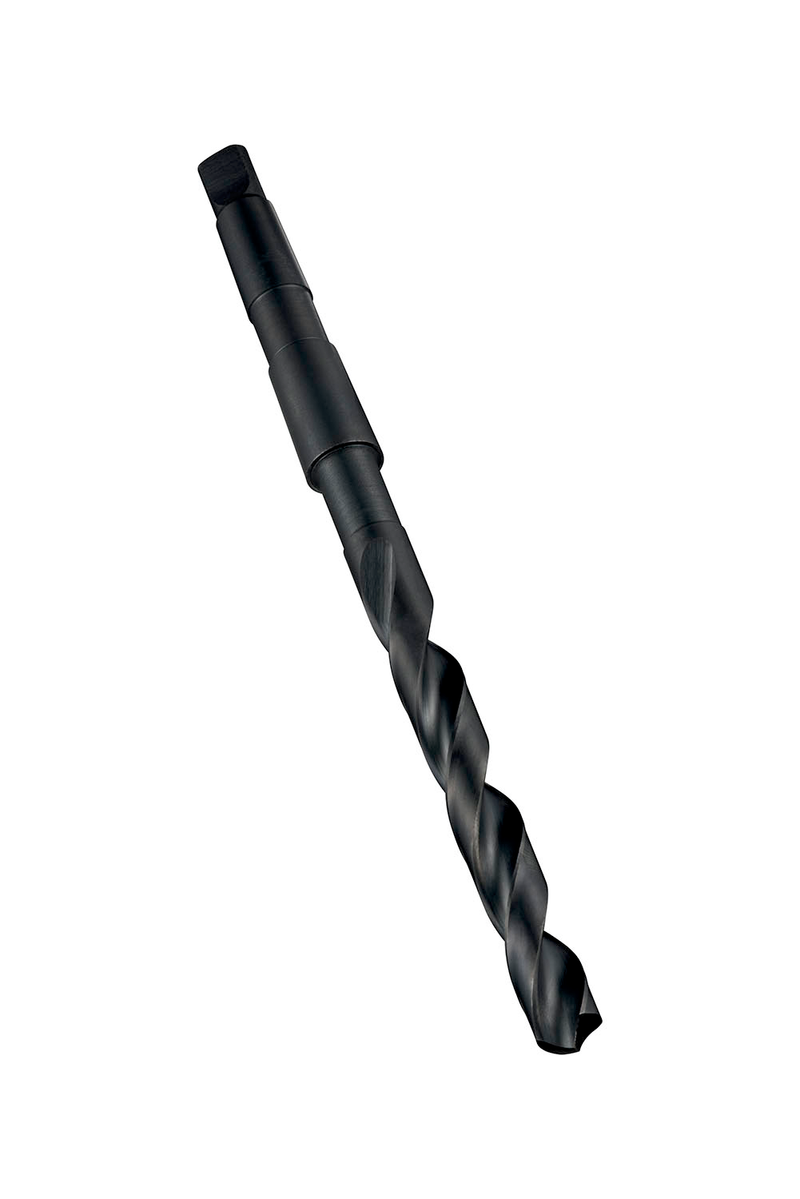

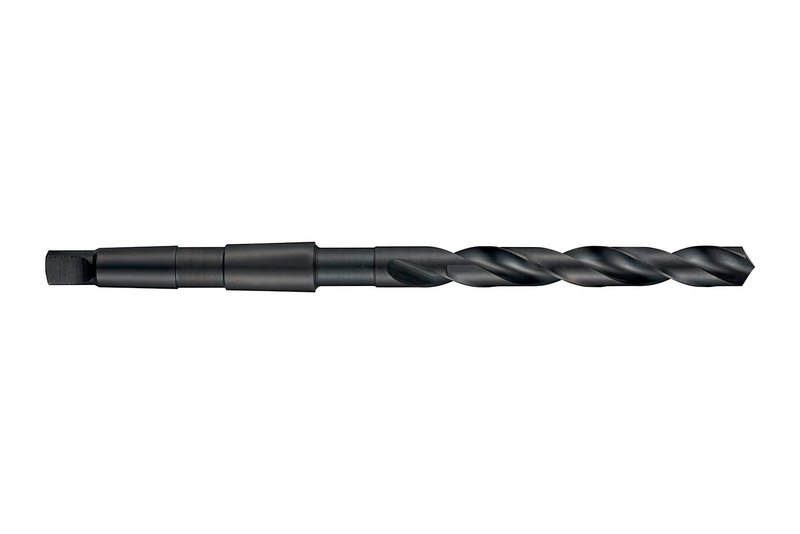

Foret queue conique de longueur jobber, diamètre 11mm avec une longueur totale de 175mm et une longueur utile de 94mm selon la norme DIN 345 avec une pointe conique amincie de 118°, en HSS avec finition trempée à la vapeur pour un perçage sans débourrage jusqu'à 4xD dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A13011.0
GradeTrempé à la vapeur
Product Number5968957
Product FamilyA130
Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)6.8898"
Overall Length — mm (OAL)175.0 mm
Flute Length — in (LCF)3.7008"
Flute Length — mm (LCF)94.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number22207
EAN7320760022207
File Type Download
A13011.0 — 3D Model STP Download
A13011.0 — Line Drawing PDF Download
