A13011.8
A13011.8
A13011.8

A13011.8

UGC DOR5969006
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$77.30 CAD - $77.30 CAD
$77.30 CAD
$77.30 CAD - $77.30 CAD
$77.30 CAD

Vendu en lots de : 1

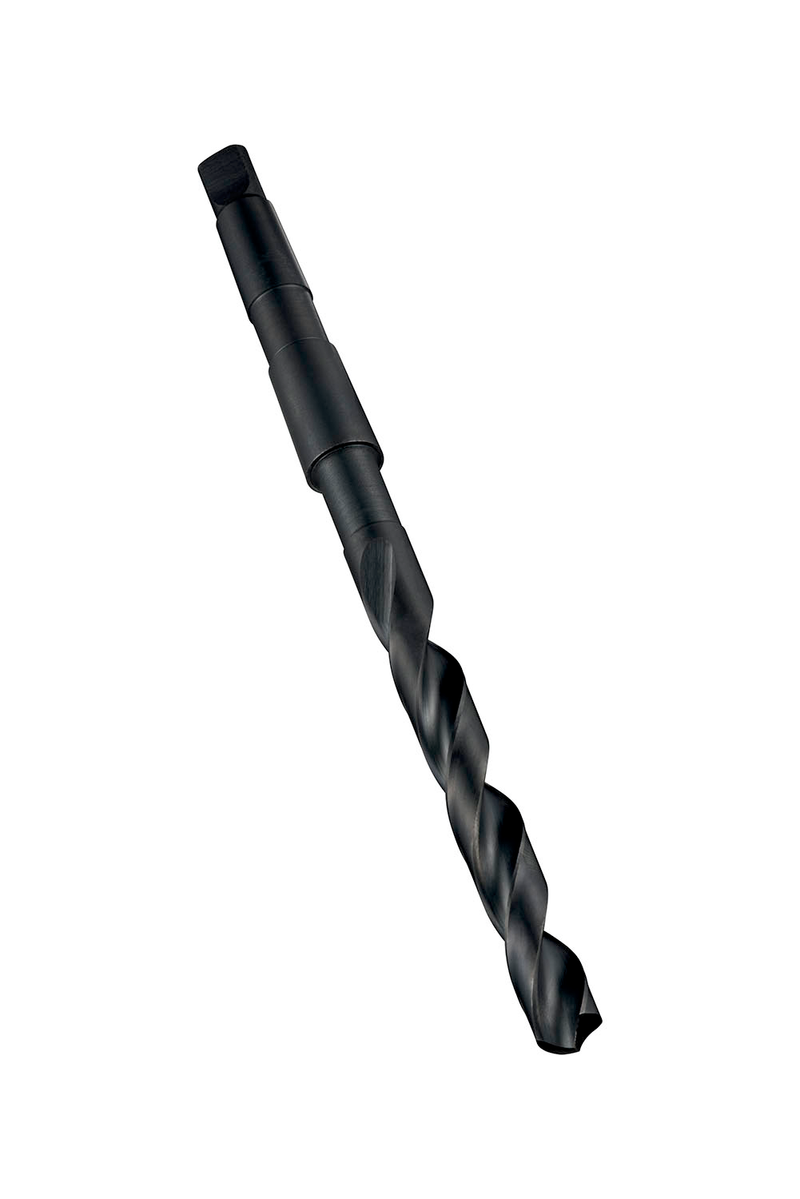

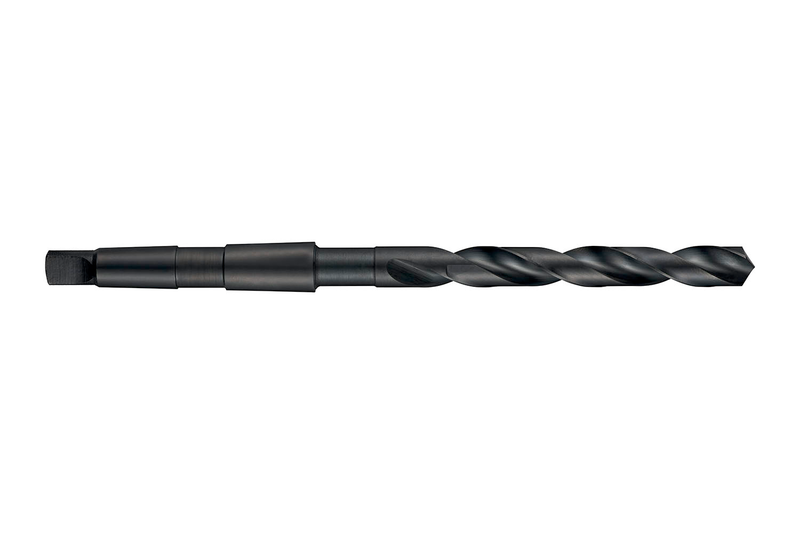

Foret de longueur normale à queue conique, diamètre 11,8 mm avec une longueur totale de 175 mm et une longueur de coupe de 94 mm selon la norme DIN 345 avec une pointe conique amincie de 118°, en HSS avec finition trempée à la vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A13011.8
GradeTrempé à la vapeur
Product Number5969006
Product FamilyA130
Dimensions
Cutting Diameter — in (DC)0.4646"
Cutting Diameter — mm (DC)11.8 mm
Overall Length — in (OAL)6.8898"
Overall Length — mm (OAL)175.0 mm
Flute Length — in (LCF)3.7008"
Flute Length — mm (LCF)94.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number22306
EAN7320760022306
File Type Download
A13011.8 — 3D Model STP Download
A13011.8 — Line Drawing PDF Download
