A221N0
A221N0

A221N0

UGC DOR5969065
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.33 CAD - $10.33 CAD
$10.33 CAD
$10.33 CAD - $10.33 CAD
$10.33 CAD

Vendu en lots de : 1

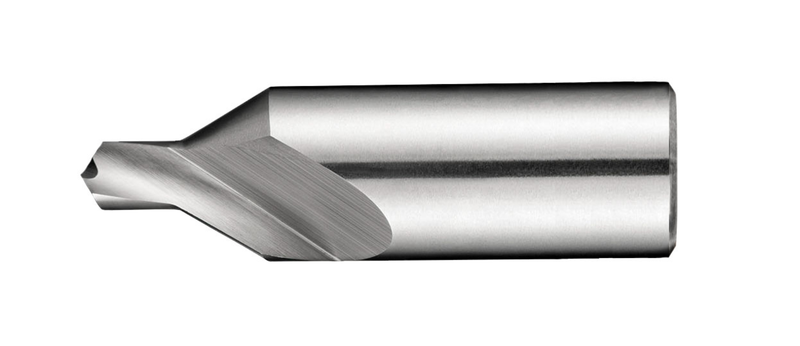

Foret à centrer (combiné perçage et chanfreinage) avec forme conique droite de 60°, double extrémité et corps cylindrique, taille 0 avec un diamètre de perçage de 1/32", un diamètre de corps de 1/8" et une longueur totale de 1.1/8", selon la norme ANSI pour produire des trous de centrage de forme A, en HSS-E à base de cobalt et finition brillante pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés et fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A221N0
GradeLumineux
Product Number5969065
Product FamilyA221
Dimensions
Cutting Diameter — in (DC)0.0313"
Cutting Diameter — mm (DC)0.8 mm
Cutting Diameter — Fractional1/32
Overall Length — in (OAL)1.125"
Overall Length — mm (OAL)28.58 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number241844
EAN7320760241844
File Type Download
A221N0 — Line Drawing PDF Download
