A13012.8
A13012.8
A13012.8

A13012.8

UGC DOR5969091
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.19 CAD - $69.19 CAD
$69.19 CAD
$69.19 CAD - $69.19 CAD
$69.19 CAD

Vendu en lots de : 1

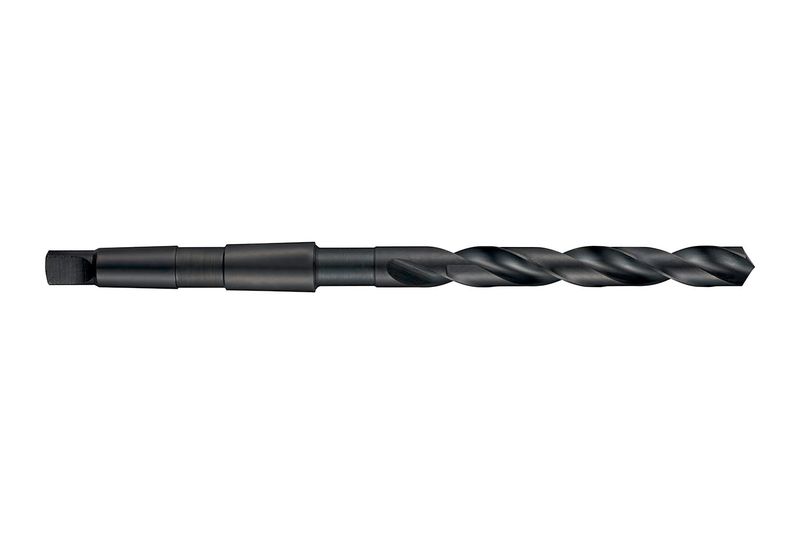

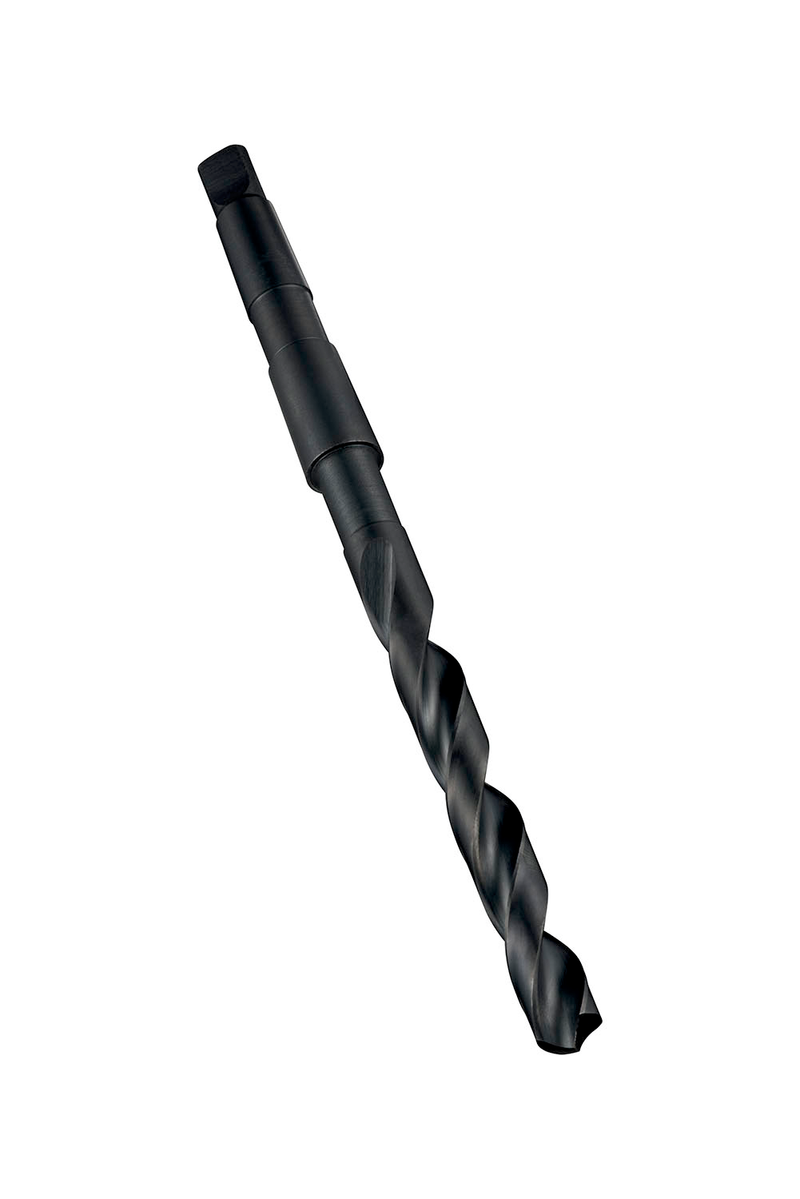

Foret queue conique longueur Jobber, diamètre 12,8 mm avec une longueur totale de 182 mm et une longueur de coupe de 101 mm selon la norme DIN 345 avec pointe conique amincie de 118°, HSS avec finition trempe vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)A13012,8
Product Name (ISO)A13012.8
GradeTrempé à la vapeur
Product Number5969091
Product FamilyA130
Dimensions
Cutting Diameter — in (DC)0.5039"
Cutting Diameter — mm (DC)12.8 mm
Overall Length — in (OAL)7.1654"
Overall Length — mm (OAL)182.0 mm
Flute Length — in (LCF)3.9764"
Flute Length — mm (LCF)101.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number22467
EAN7320760022467
File Type Download
A13012.8 — 3D Model STP Download
A13012.8 — Line Drawing PDF Download
