A225BS1
A225BS1
A225BS1
A225BS1

A225BS1

UGC DOR5969157
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.54 CAD - $7.54 CAD
$7.54 CAD
$7.54 CAD - $7.54 CAD
$7.54 CAD

Vendu en lots de : 1

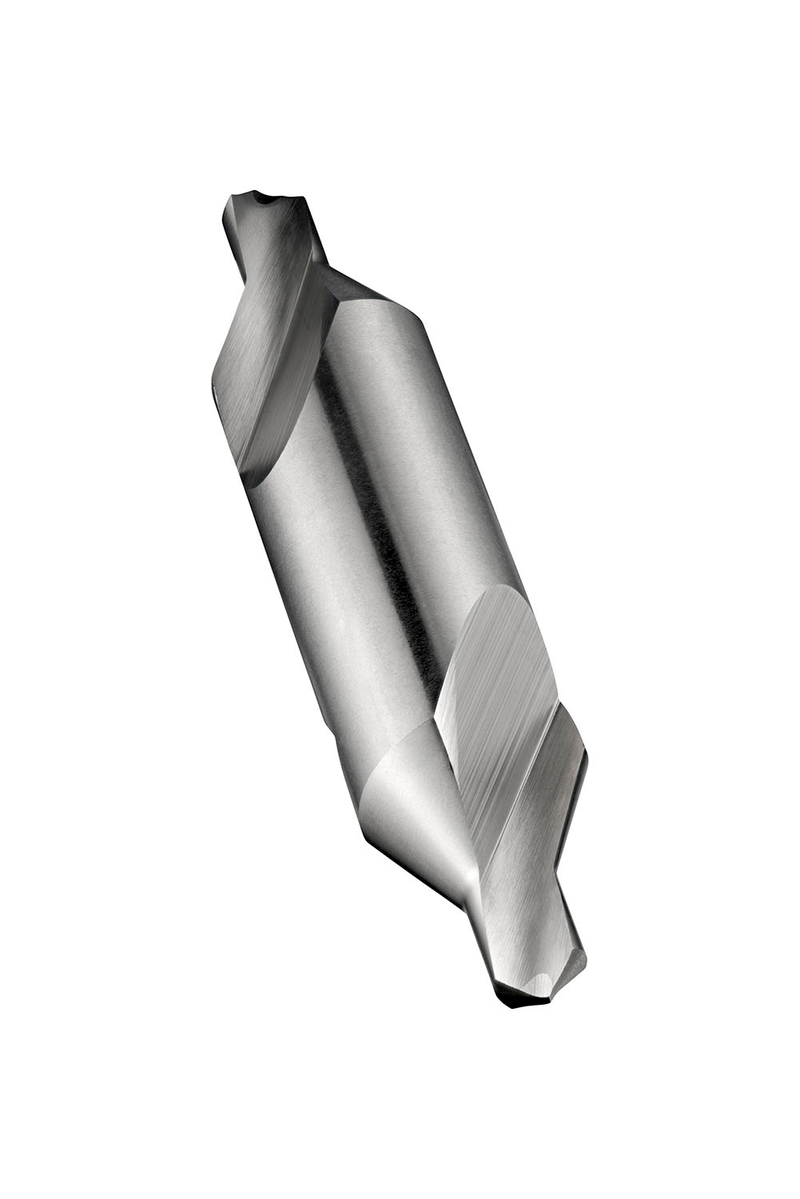

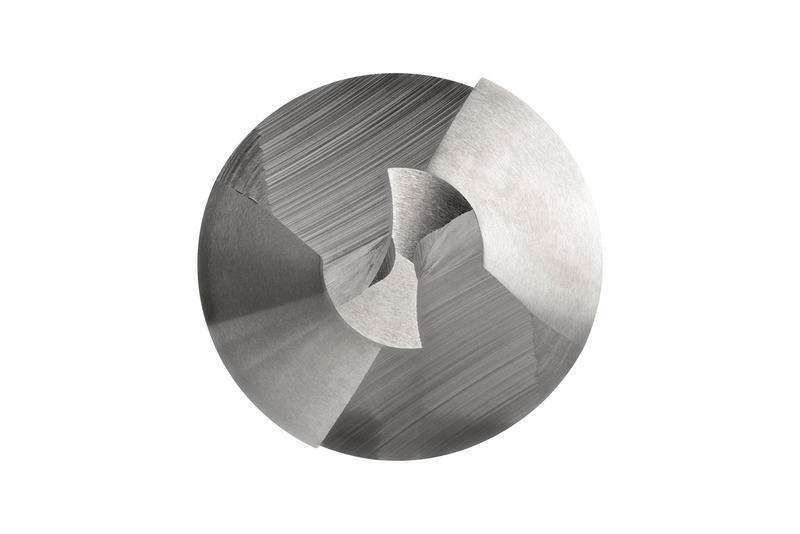

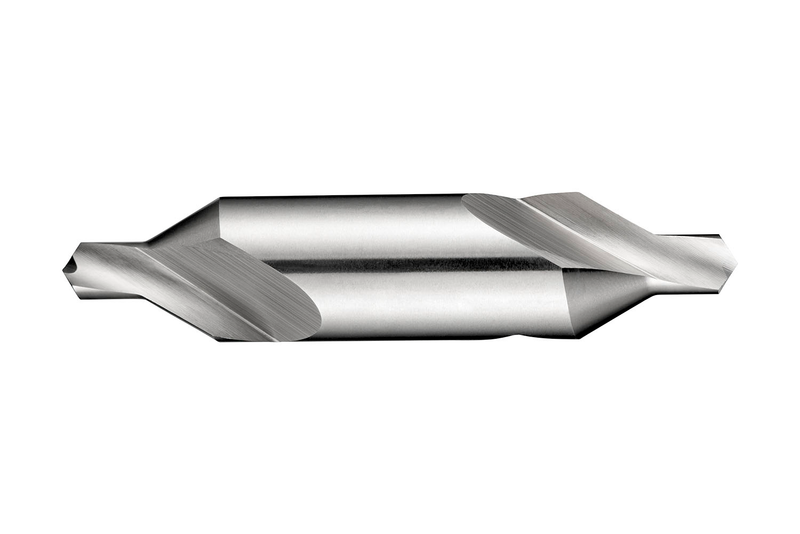

Foret à centrer (combiné foret et fraise à chambrer) avec forme conique droite de 60°, à double extrémité et corps cylindrique, taille BS1 avec diamètre de perçage de 3/64", diamètre de corps de 1/8" et longueur totale de 1.1/2", selon la norme BS 328 pour produire des avant-trous de forme A, en HSS et finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS1
GradeLumineux
Product Number5969157
Product FamilyA225
Dimensions
Cutting Diameter — in (DC)0.0469"
Cutting Diameter — mm (DC)1.19 mm
Cutting Diameter — Fractional3/64
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNF 328
Reference Numbers
EDP Number172988
EAN7320760172988
File Type Download

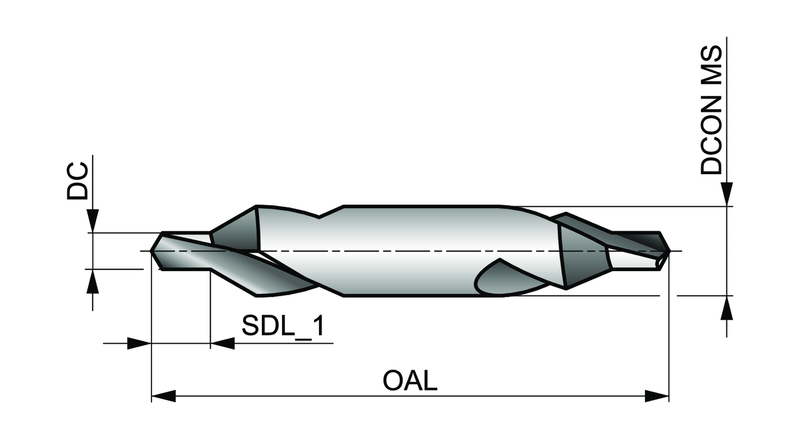

A225BS1 — Line Drawing PDF Download
