UGC DOR5969160
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.30 CAD - $8.30 CAD
$8.30 CAD
$8.30 CAD - $8.30 CAD
$8.30 CAD

Vendu en lots de : 1

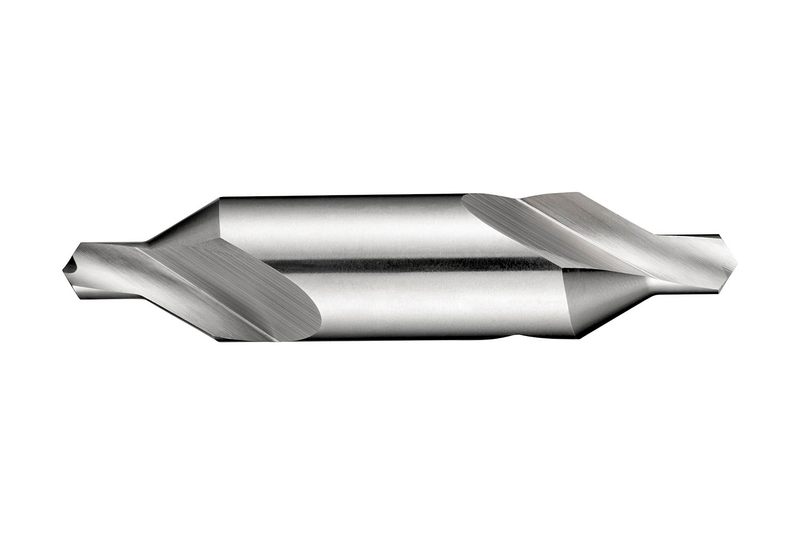

Foret à centrer (combiné foret et chanfrein) de forme conique droite à 60°, à double extrémité et corps cylindrique, taille BS2 avec un diamètre de foret de 1/16", un diamètre de corps de 3/16" et une longueur totale de 1,3/4", selon la norme BS 328 pour produire des trous de centrage de forme A, en HSS et finition brillante pour l'usinage de l'acier à usinage facile, de l'acier au carbone non allié et allié et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS2
GradeLumineux
Product Number5969160
Product FamilyA225
Dimensions
Cutting Diameter — in (DC)0.0625"
Cutting Diameter — mm (DC)1.59 mm
Cutting Diameter — Fractional1/16
Overall Length — in (OAL)1.75"
Overall Length — mm (OAL)44.45 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number172995
EAN7320760172995
File Type Download

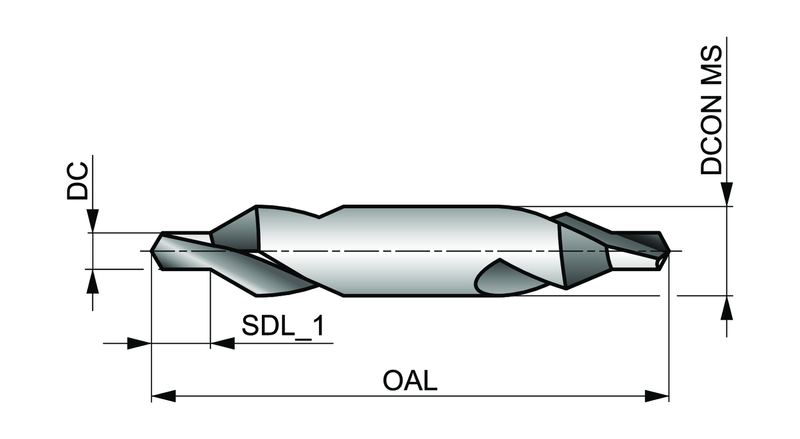

A225BS2 — Line Drawing PDF Download
