A225BS3
A225BS3
A225BS3
A225BS3

A225BS3

UGC DOR5969163
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.26 CAD - $10.26 CAD
$10.26 CAD
$10.26 CAD - $10.26 CAD
$10.26 CAD

Vendu en lots de : 1

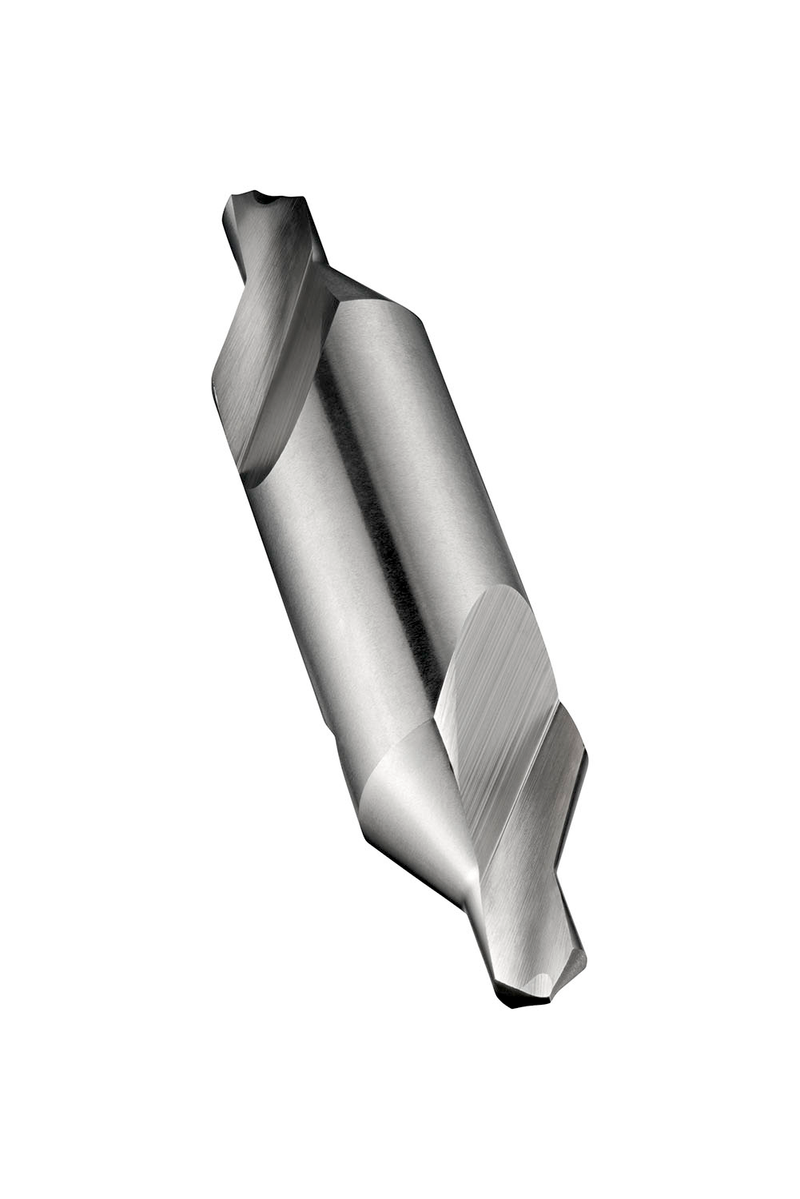

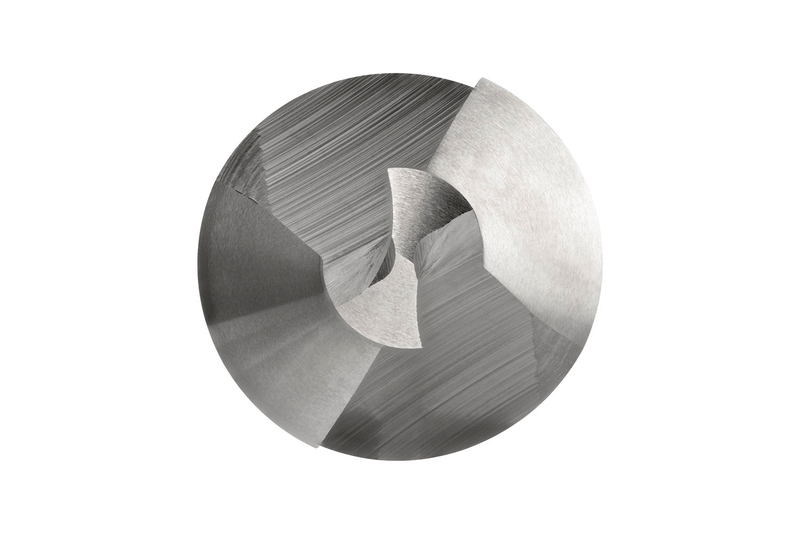

Foret à centrer (foret et fraise à chambrer combinés) à forme conique droite de 60°, à double extrémité et corps cylindrique, taille BS3 avec un diamètre de perçage de 3/32", un diamètre de corps de 1/4" et une longueur totale de 2", selon la norme BS 328 pour produire des trous de centrage de forme A, en HSS et finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS3
GradeLumineux
Product Number5969163
Product FamilyA225
Dimensions
Cutting Diameter — in (DC)0.0938"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number173008
EAN7320760173008
File Type Download
A225BS3 — Line Drawing PDF Download
