A225BS4
A225BS4
A225BS4
A225BS4

A225BS4

UGC DOR5969166
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.31 CAD - $13.31 CAD
$13.31 CAD
$13.31 CAD - $13.31 CAD
$13.31 CAD

Vendu en lots de : 1

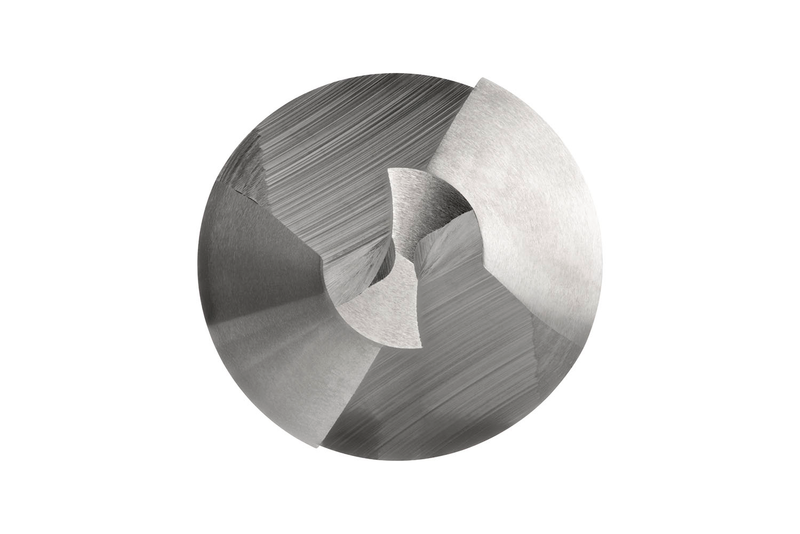

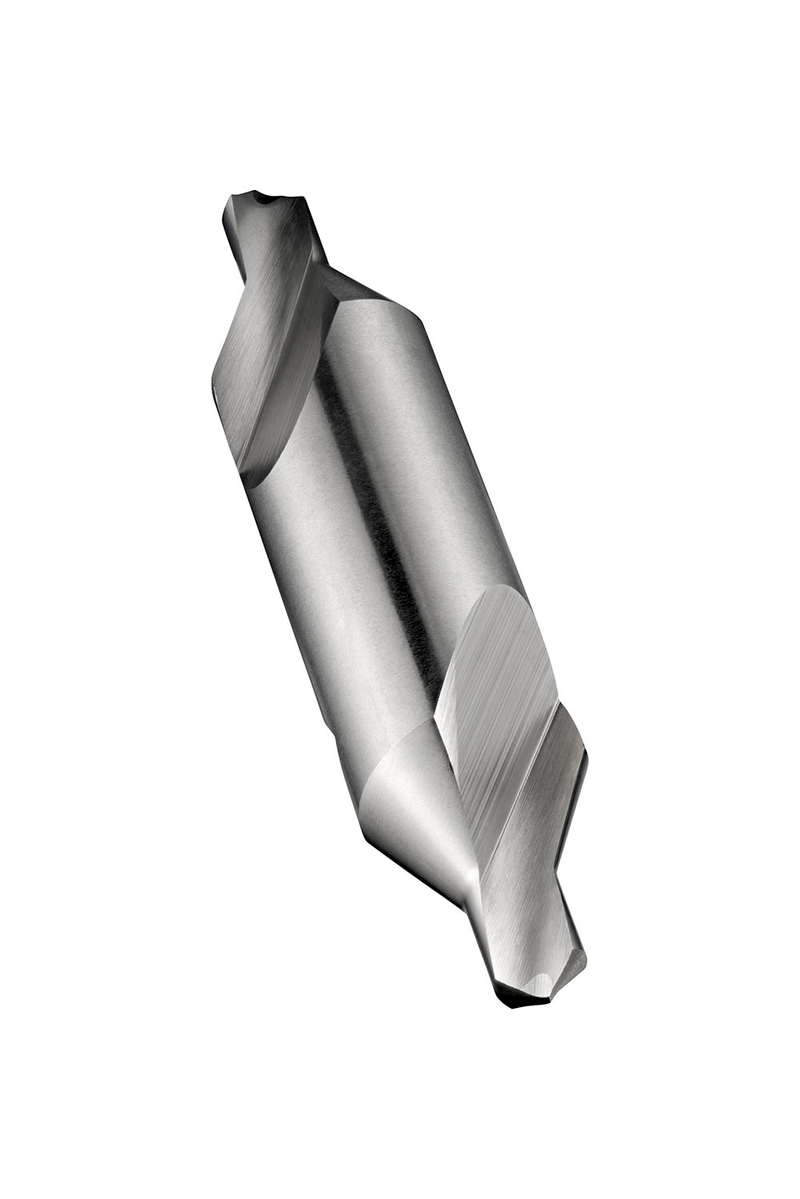

Foret à centrer (combiné foret et chanfreineur) avec forme conique droite de 60°, double extrémité et corps cylindrique, taille BS4 avec diamètre de foret de 1/8", un diamètre de corps de 5/16" et une longueur totale de 2.1/4", selon la norme BS 328 pour produire des trous de centrage de forme A, en HSS et finition brillante pour l'usinage d'acier à usinage libre, d'acier au carbone non allié et allié et de fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS4
GradeLumineux
Product Number5969166
Product FamilyA225
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.25"
Overall Length — mm (OAL)57.15 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number173015
EAN7320760173015
File Type Download
A225BS4 — Line Drawing PDF Download
