UGC DOR5969169
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.30 CAD - $19.30 CAD
$19.30 CAD
$19.30 CAD - $19.30 CAD
$19.30 CAD

Vendu en lots de : 1

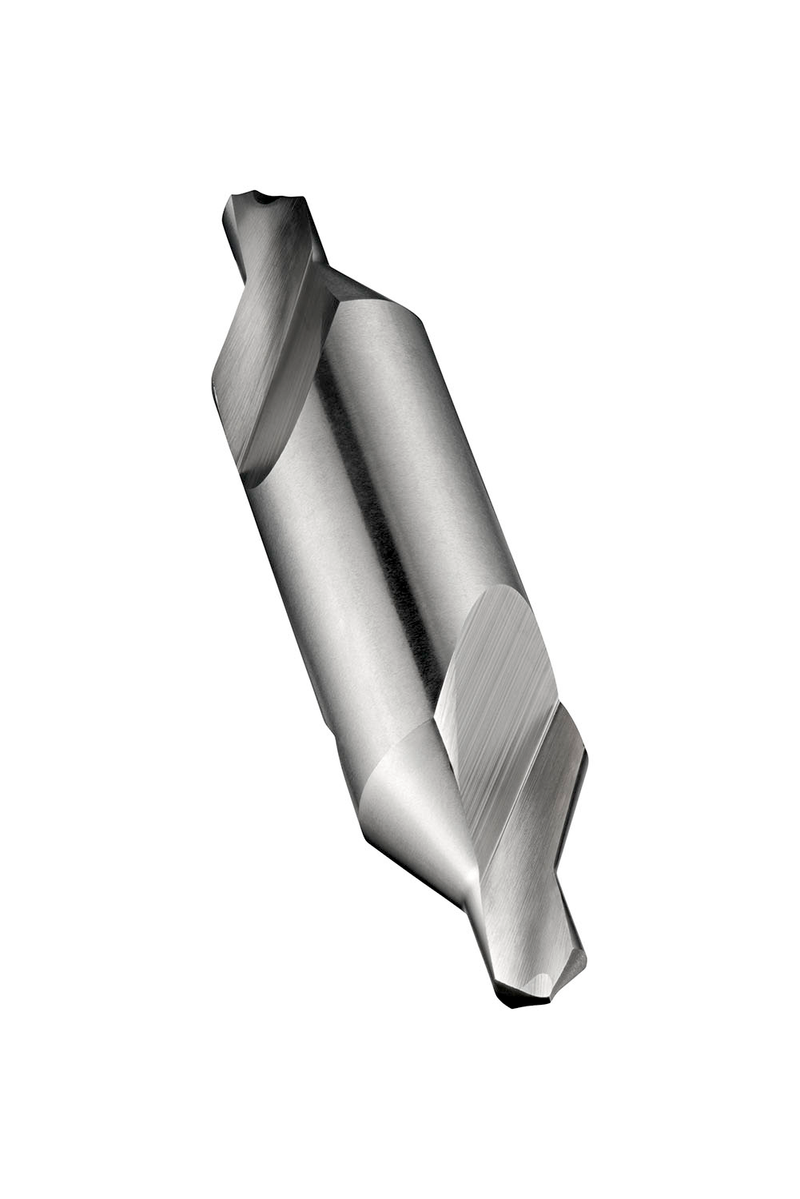

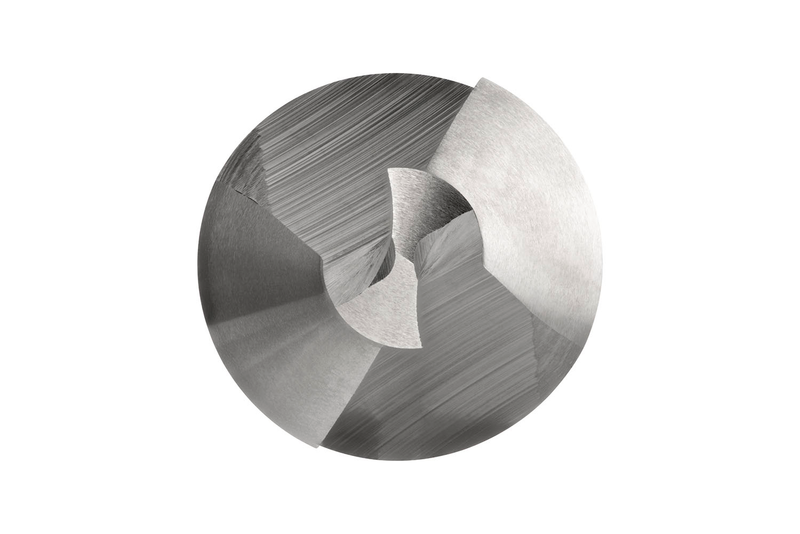

Foret à centrer (foret et fraise à chambrer combinés) à forme conique droite de 60°, à double extrémité et corps cylindrique, taille BS5 avec un diamètre de foret de 3/16", un diamètre de corps de 7/16" et une longueur totale de 2.1/2", selon la norme BS 328 pour la production de trous de centrage de forme A, en HSS et finition brillante pour l'usinage d'acier à usinage facile, d'acier au carbone non allié et allié et de fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS5
GradeLumineux
Product Number5969169
Product FamilyA225
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNF 328
Reference Numbers
EDP Number173022
EAN7320760173022
File Type Download
A225BS5 — Line Drawing PDF Download
