A225BS5A
A225BS5A
A225BS5A
A225BS5A

A225BS5A

UGC DOR5969171
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.50 CAD - $34.50 CAD
$34.50 CAD
$34.50 CAD - $34.50 CAD
$34.50 CAD

Vendu en lots de : 1

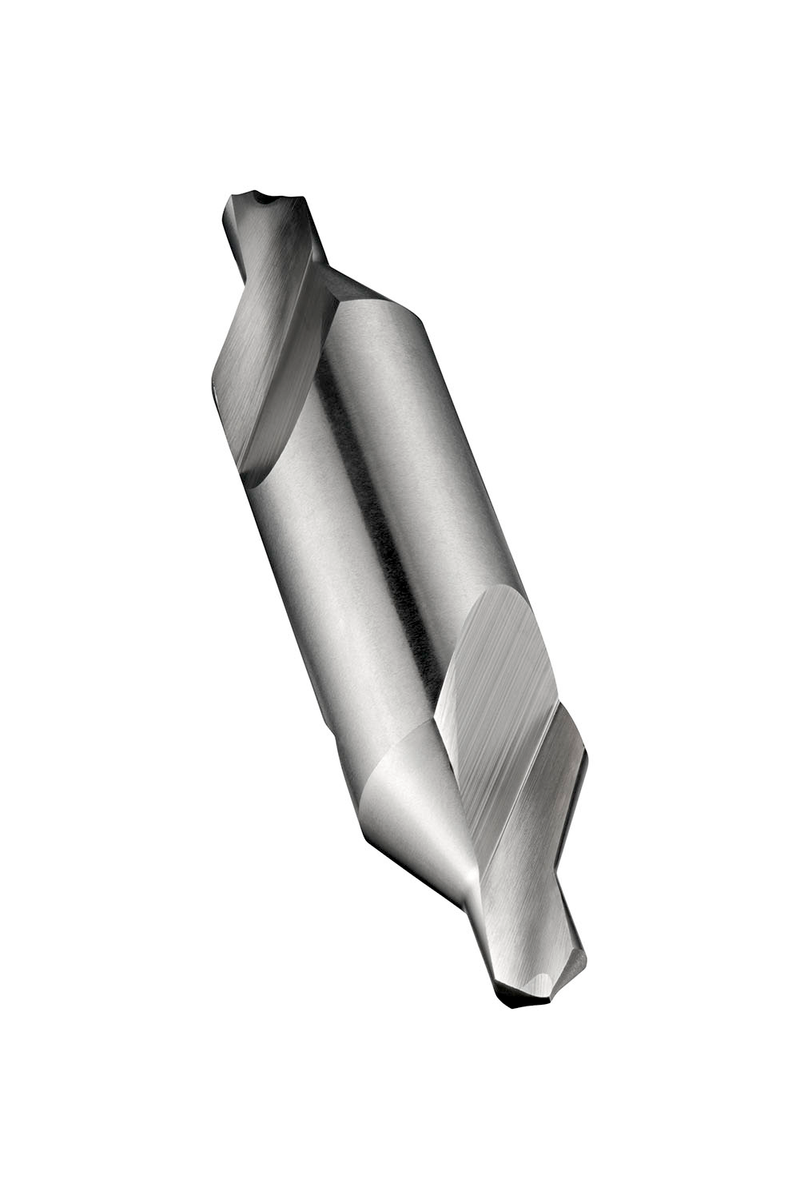

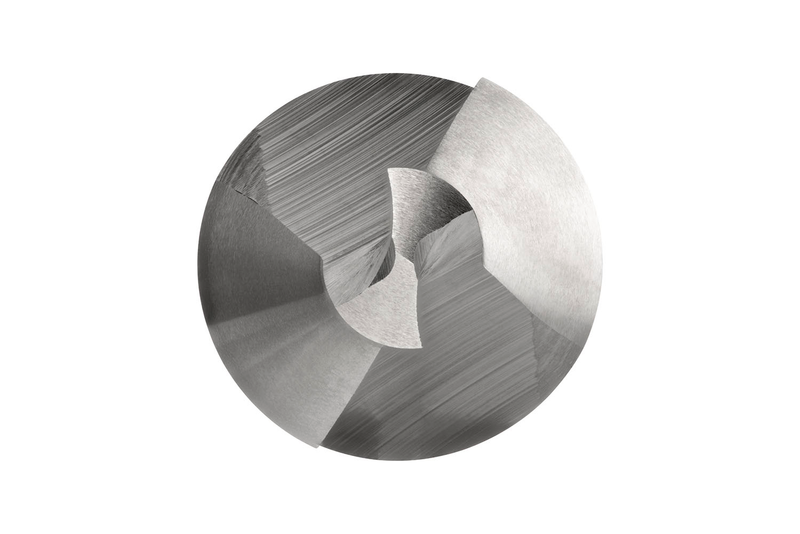

Foret à centrer (combiné perçage et chanfreinage) de forme conique droite de 60°, double-face et corps cylindrique, taille BS5A avec diamètre de perçage de 7/32", un diamètre de corps de 1/2" et une longueur totale de 2.3/4", selon la norme BS 328 pour la production de trous de centrage de forme A, en acier rapide et finition brillante pour l'usinage des aciers de décolletage, aciers au carbone non alliés, aciers alliés et fontes grises

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS5A
GradeLumineux
Product Number5969171
Product FamilyA225
Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)120°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number173039
EAN7320760173039
File Type Download
A225BS5A — Line Drawing PDF Download
