UGC DOR5969173
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.21 CAD - $58.21 CAD
$58.21 CAD
$58.21 CAD - $58.21 CAD
$58.21 CAD

Vendu en lots de : 1

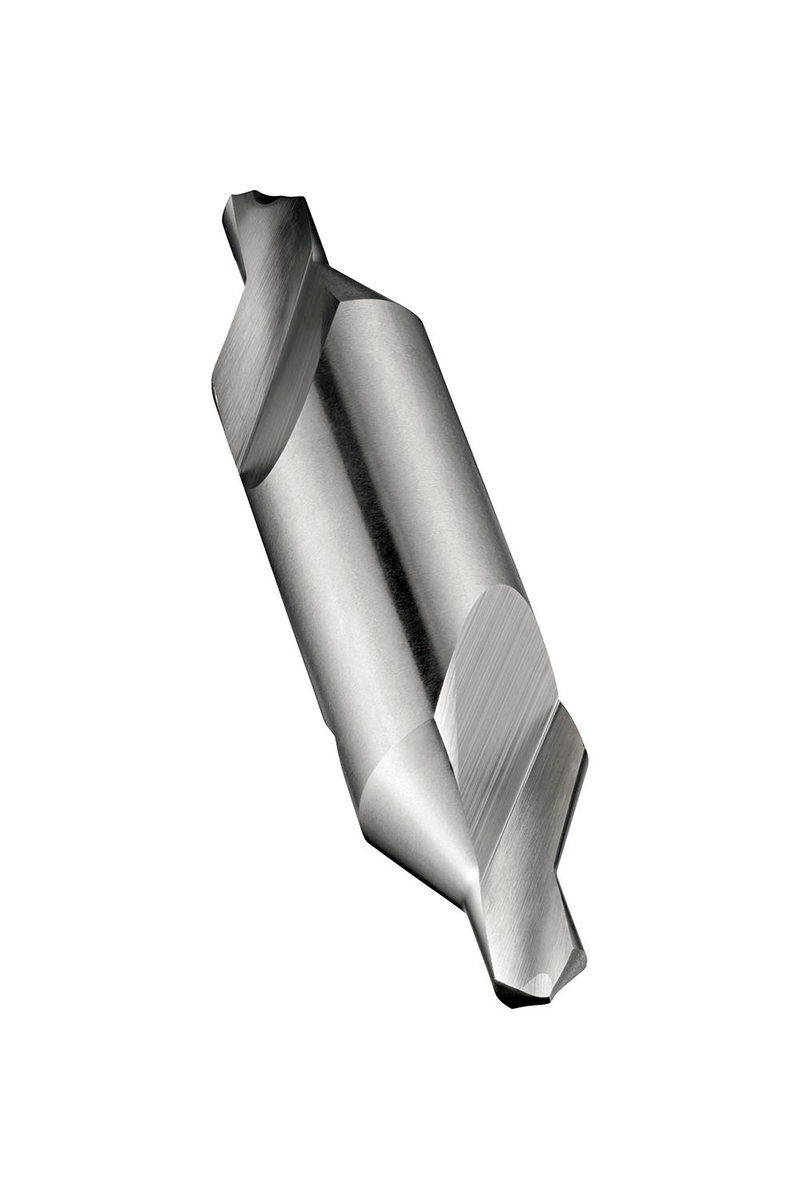

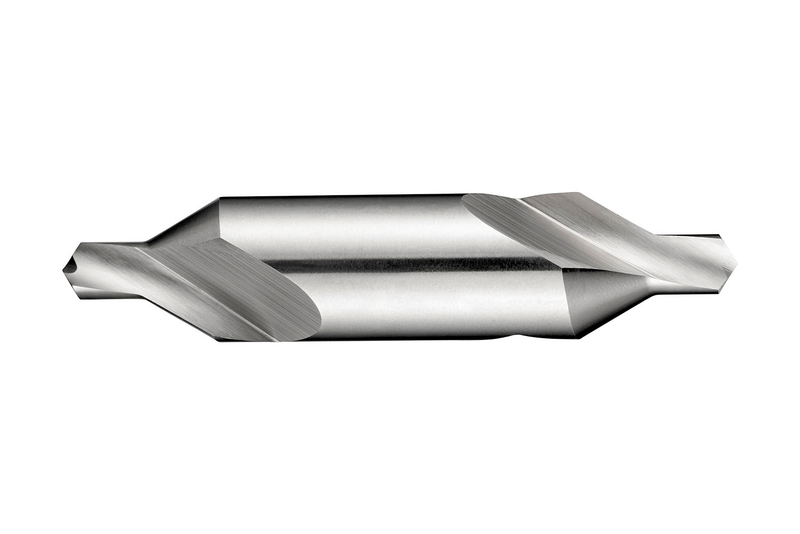

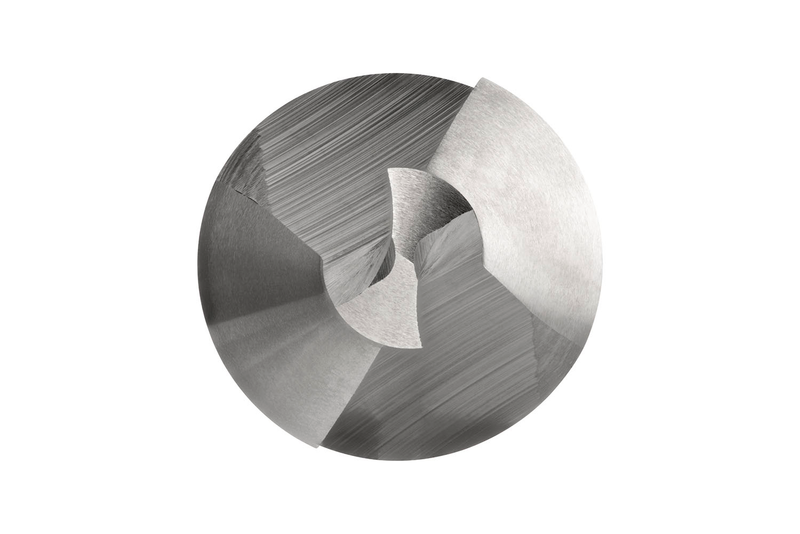

Foret à centrer (combiné perçage et chanfreinage) de forme conique droite 60°, à double extrémité et corps cylindrique, taille BS6 avec diamètre de perçage de 1/4", diamètre de corps de 5/8" et longueur totale de 3", selon la norme BS 328 pour produire des avant-trous de forme A, en HSS et finition brillante pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés et fontes grises

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS6
GradeLumineux
Product Number5969173
Product FamilyA225
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number173046
EAN7320760173046
File Type Download

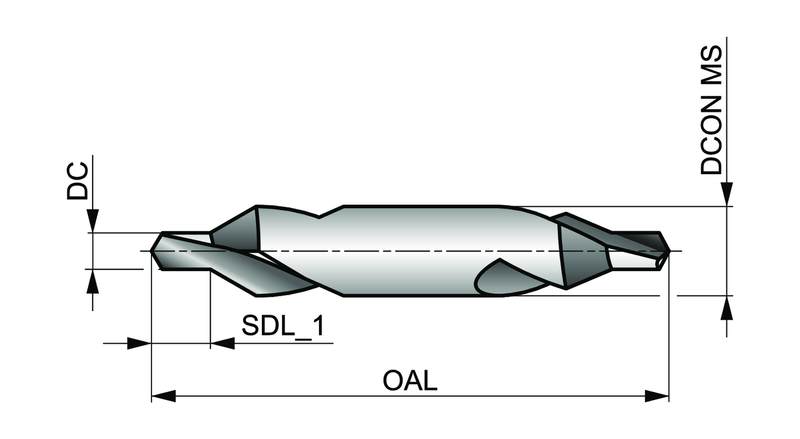

A225BS6 — Line Drawing PDF Download
