UGC DOR5969174
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$84.46 CAD - $84.46 CAD
$84.46 CAD
$84.46 CAD - $84.46 CAD
$84.46 CAD

Vendu en lots de : 1

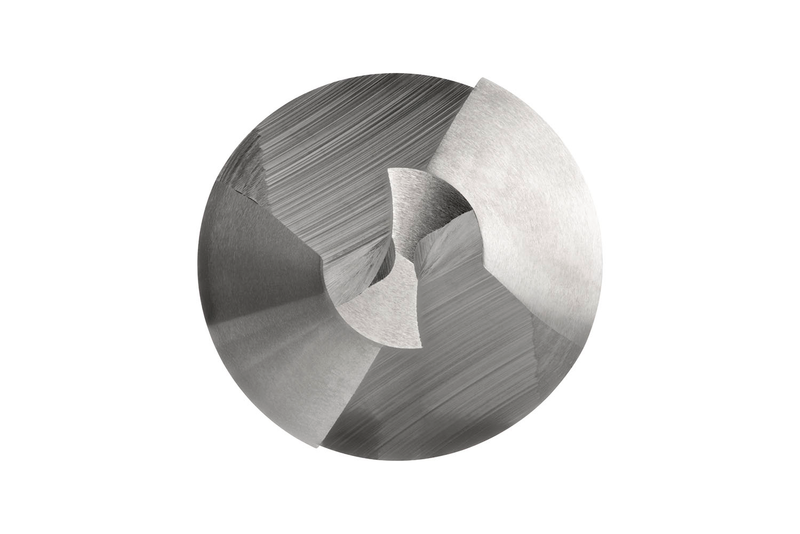

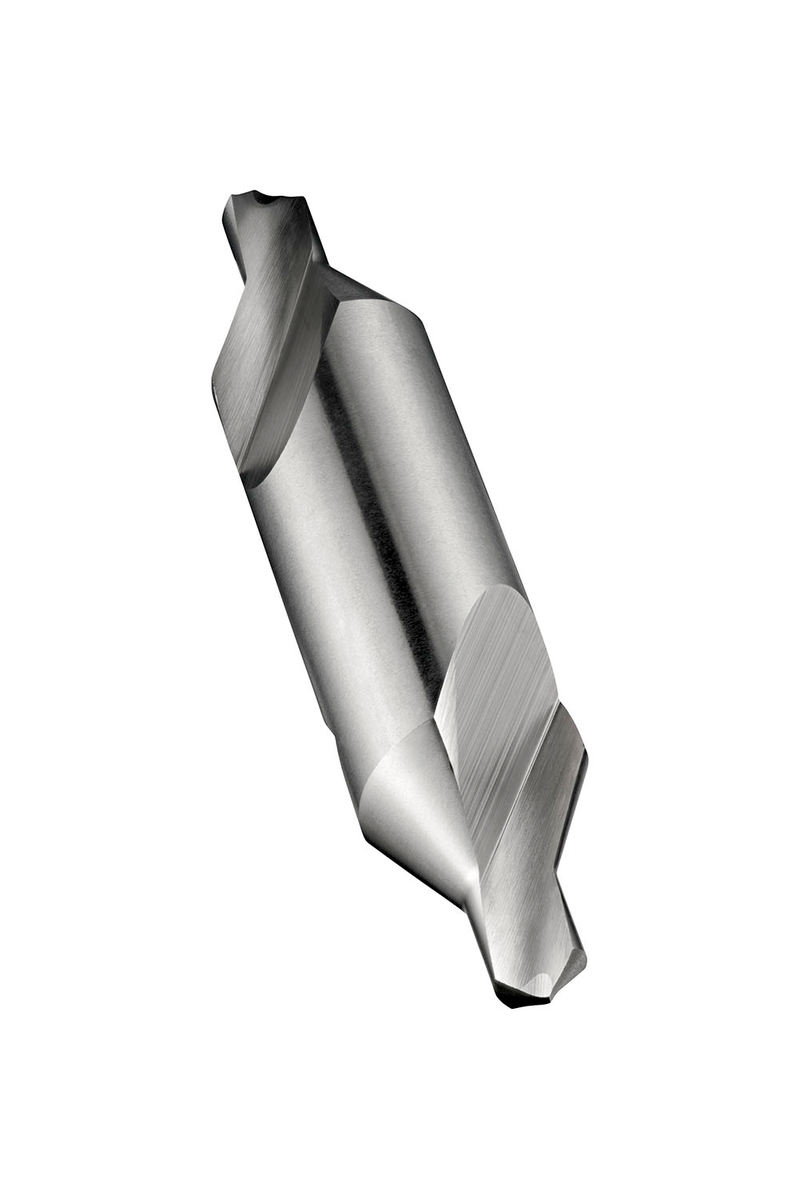

Foret à centrer (combiné foret et fraise à chambrer) avec forme conique droite de 60°, double extrémité et corps cylindrique, taille BS7 avec un diamètre de perçage de 5/16", un diamètre de corps de 3/4" et une longueur totale de 3.1/2", selon la norme BS 328 pour produire des trous de centrage de forme A, en acier rapide (HSS) et finition brillante pour l'usinage d'acier à usinage libre, d'acier au carbone non allié et allié et de fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS7
GradeLumineux
Product Number5969174
Product FamilyA225
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number173053
EAN7320760173053
File Type Download
A225BS7 — Line Drawing PDF Download
