A13042.0
A13042.0
A13042.0

A13042.0

UGC DOR5969210
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$667.04 CAD - $667.04 CAD
$667.04 CAD
$667.04 CAD - $667.04 CAD
$667.04 CAD

Vendu en lots de : 1

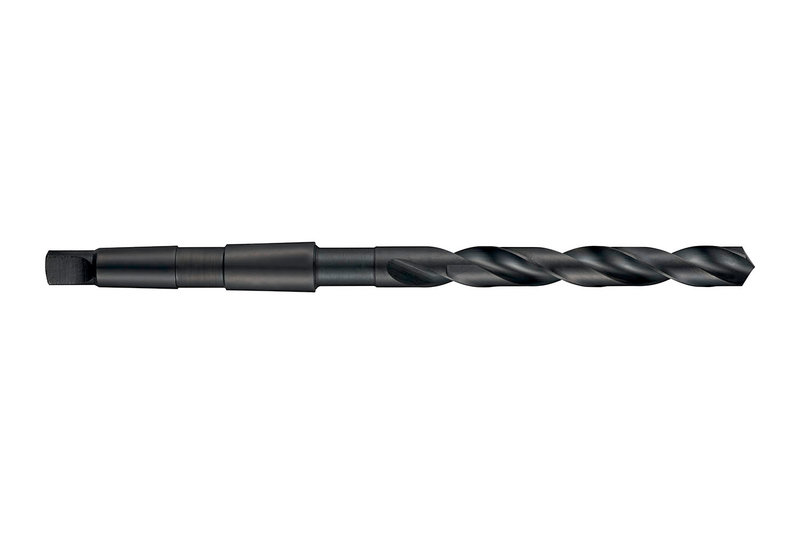

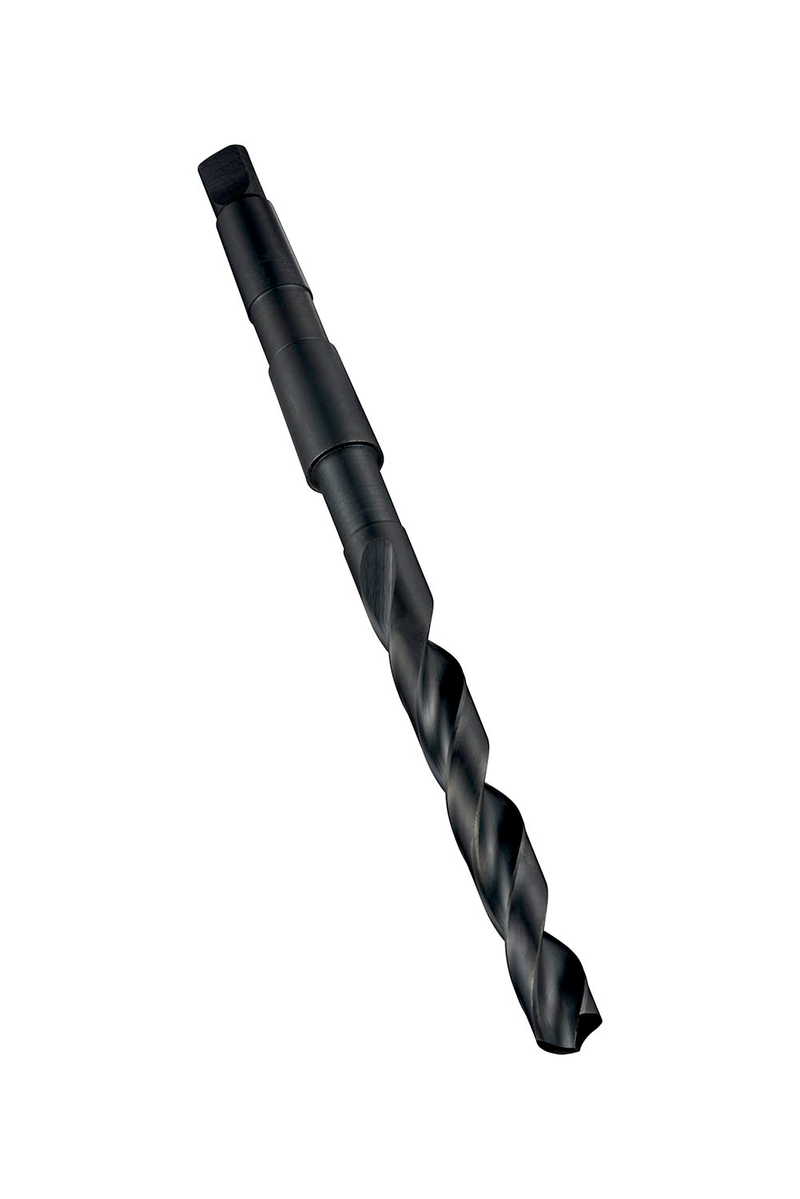

Forets longs à queue conique, diamètre 42mm avec une longueur totale de 354mm et une longueur de coupe de 205mm selon la norme DIN 345 avec une pointe conique amincie de 118°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A13042.0
GradeTrempé à la vapeur
Product Number5969210
Product FamilyA130
Dimensions
Cutting Diameter — in (DC)1.6535"
Cutting Diameter — mm (DC)42.0 mm
Overall Length — in (OAL)13.937"
Overall Length — mm (OAL)354.0 mm
Flute Length — in (LCF)8.0709"
Flute Length — mm (LCF)205.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue de cône Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number24829
EAN7320760024829
File Type Download
A13042.0 — 3D Model STP Download
A13042.0 — Line Drawing PDF Download
