UGC DOR5969233
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.74 CAD - $11.74 CAD
$11.74 CAD
$11.74 CAD - $11.74 CAD
$11.74 CAD

Vendu en lots de : 1

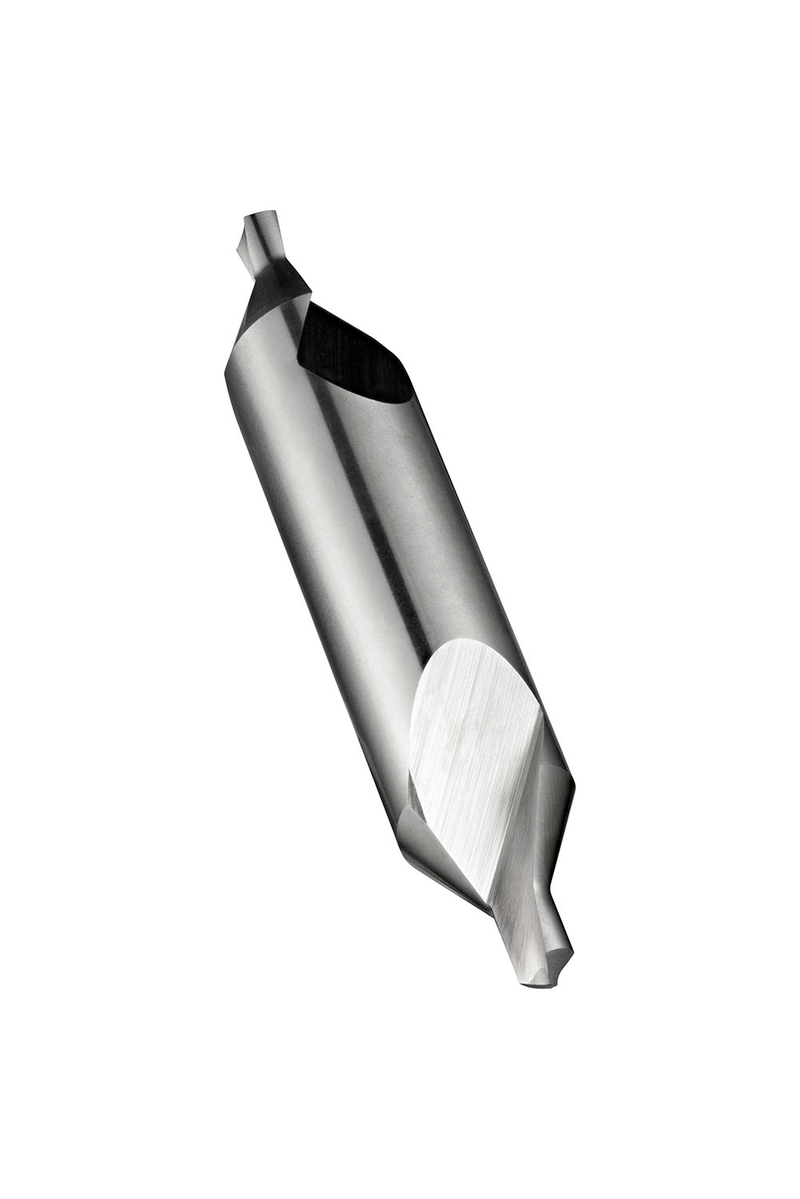

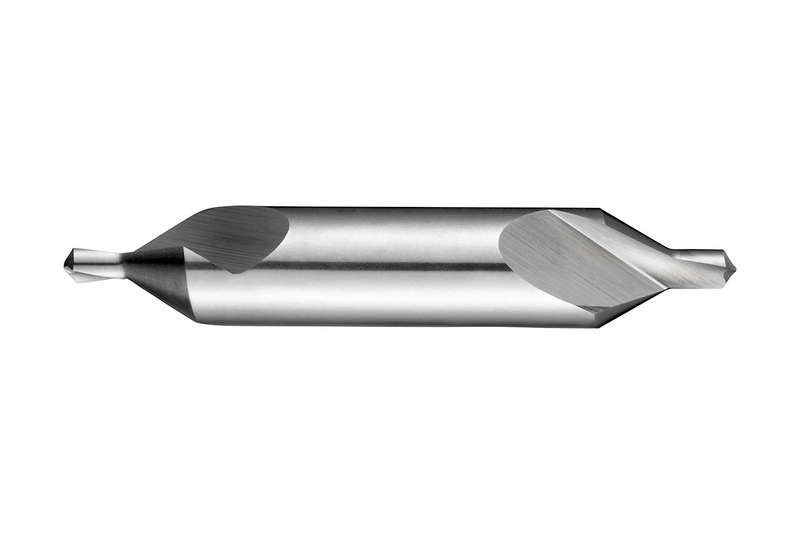

Foret à centrer (combiné foret et chanfreineur) avec forme conique droite de 60°, double extrémité et corps cylindrique, diamètre de foret de 1,60mm, diamètre de corps de 5,00mm et longueur totale de 40mm, selon la norme DORMER pour produire des trous de centrage standardisés selon DIN 332 partie 1 forme A, HSS et finition brillante pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2011.6X5.0
GradeLumineux
Product Number5969233
Product FamilyA201
Dimensions
Cutting Diameter — in (DC)0.063"
Cutting Diameter — mm (DC)1.6 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Drill Point Angle (SIG)122°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number215111
EAN7320760215111
File Type Download

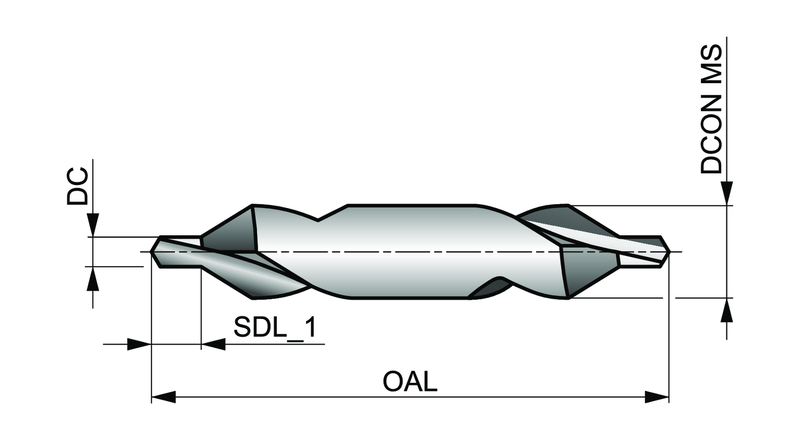

A2011.6X5.0 — Line Drawing PDF Download
