A2012.0X6.0
A2012.0X6.0
A2012.0X6.0
A2012.0X6.0

A2012.0X6.0

UGC DOR5969294
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.29 CAD - $11.29 CAD
$11.29 CAD
$11.29 CAD - $11.29 CAD
$11.29 CAD

Vendu en lots de : 1

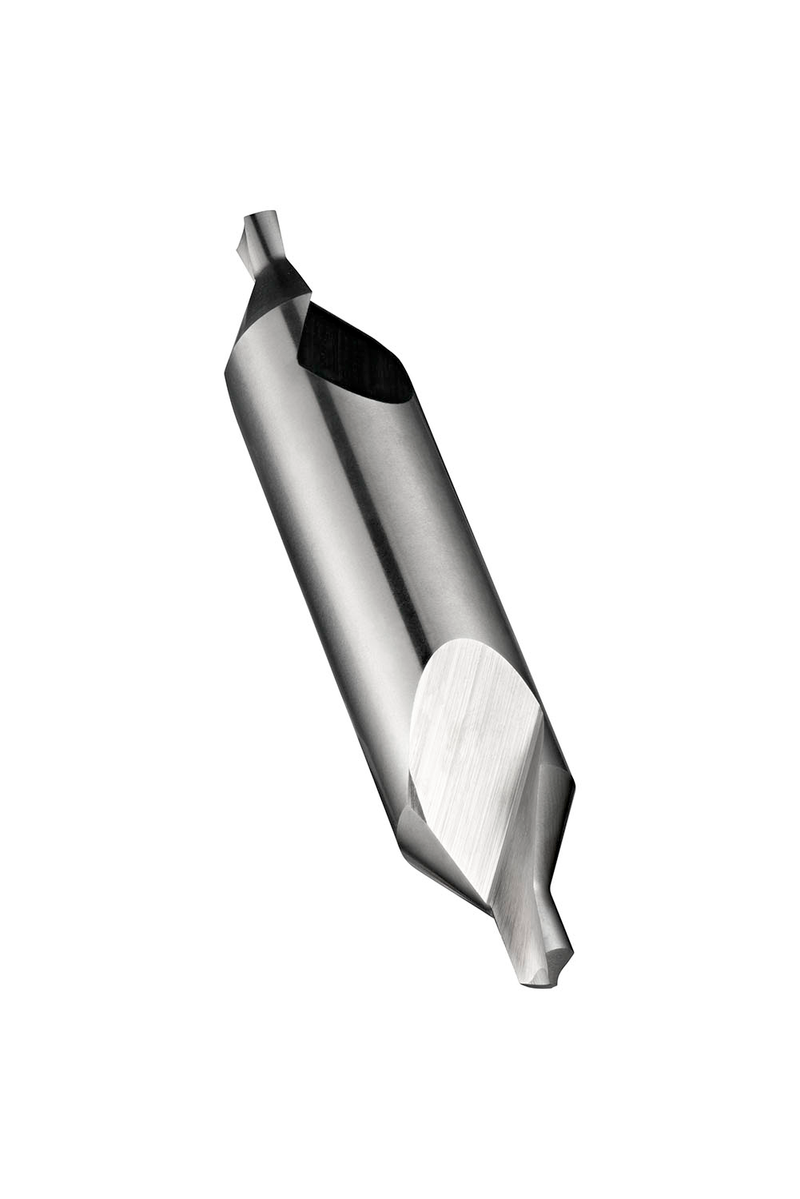

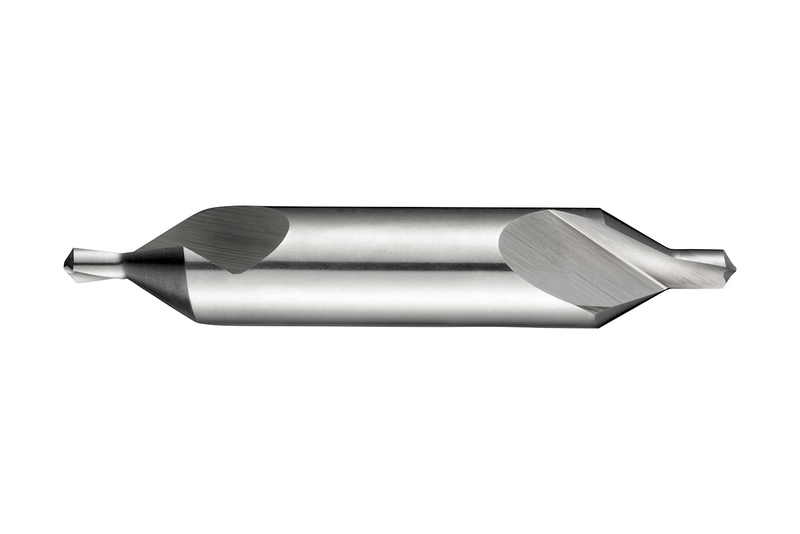

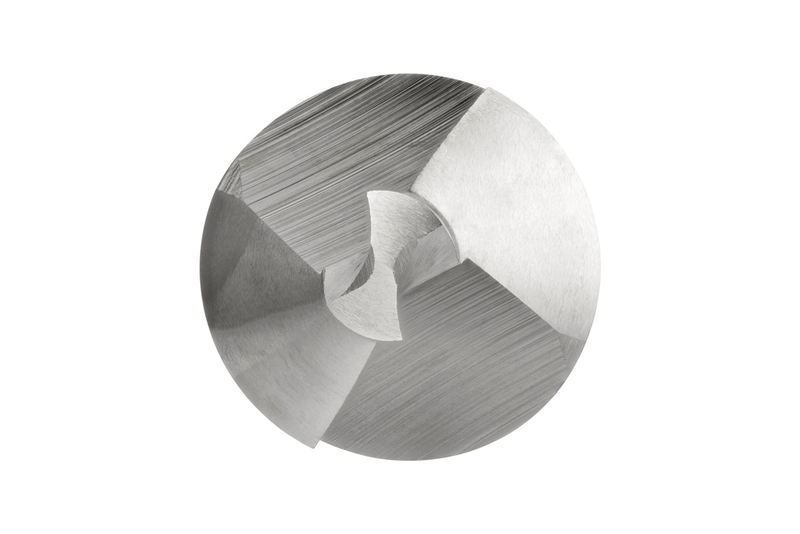

Foret à centrer (combiné foret-chanfreineur) avec une forme conique droite de 60°, double-face et corps cylindrique, diamètre de foret de 2,00mm, un diamètre de corps de 6,00mm et une longueur totale de 45mm, selon la norme DORMER pour produire des trous de centrage normalisés selon la norme DIN 332 partie 1 forme A, HSS et finition brillante pour l'usinage de l'acier à usinage libre, de l'acier au carbone non allié et allié et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2012.0X6.0
GradeLumineux
Product Number5969294
Product FamilyA201

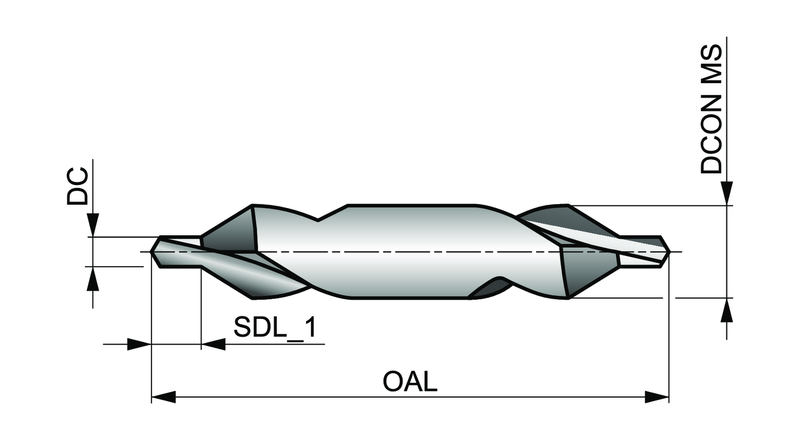

Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)122°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number138892
EAN7320760138892
File Type Download
A2012.0X6.0 — Line Drawing PDF Download
