A210,5X3,15
A210,5X3,15
A210,5X3,15
A210,5X3,15

A210,5X3,15

UGC DOR5969323
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.17 CAD - $13.17 CAD
$13.17 CAD
$13.17 CAD - $13.17 CAD
$13.17 CAD

Vendu en lots de : 1

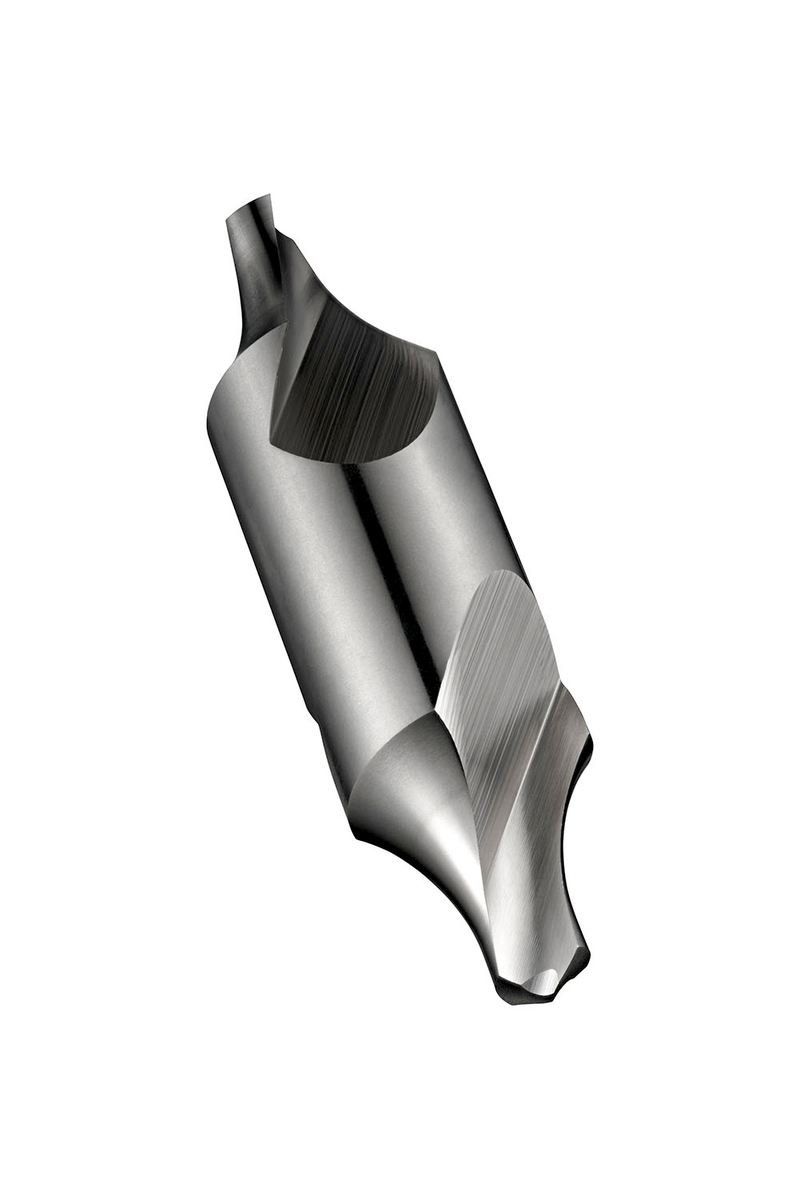

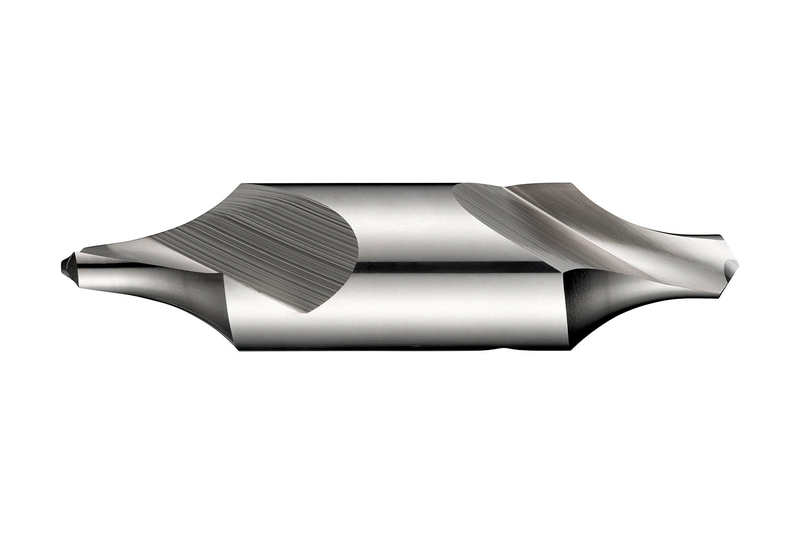

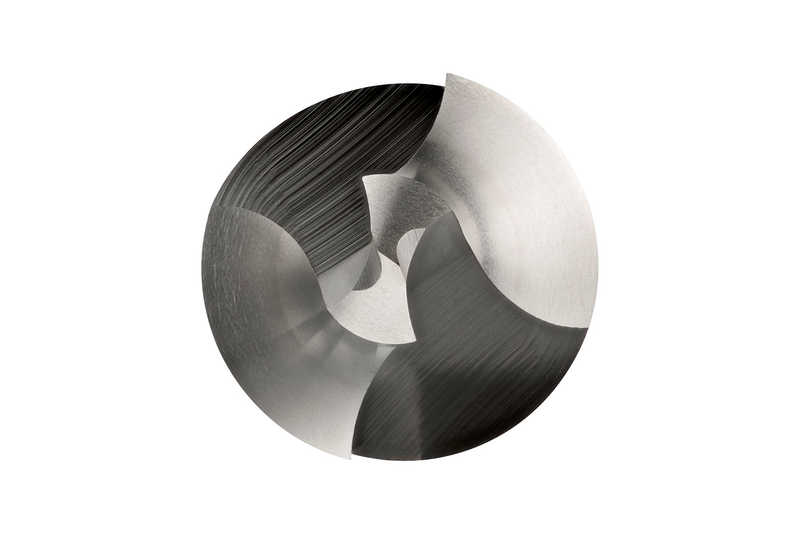

Foret à centrer (foret-fraise combiné) à forme conique courbée à 60°, double extrémité et corps cylindrique, diamètre de foret de 0,50 mm, diamètre de corps de 3,15 mm et longueur totale de 25 mm, selon la norme DIN 333R pour réaliser des trous de centrage normalisés selon la norme DIN 332 partie 1 forme R, HSS et finition brillante pour l'usinage de l'acier à coupe libre, de l'acier au carbone et allié et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI)A210.5X3.15
Product Name (ISO)A210.5X3,15
GradeLumineux
Product Number5969323
Product FamilyA210

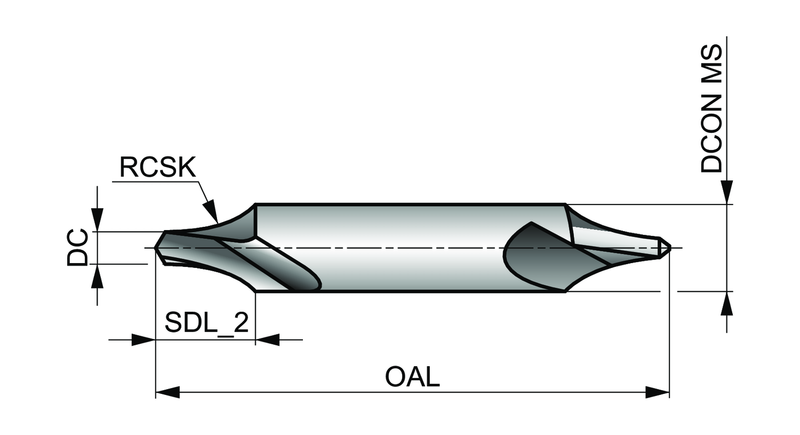

Dimensions
Cutting Diameter — in (DC)0.0197"
Cutting Diameter — mm (DC)0.5 mm
Overall Length — in (OAL)0.9843"
Overall Length — mm (OAL)25.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333R
Reference Numbers
EDP Number214374
EAN7320760214374
File Type Download
A210,5X3,15 — Line Drawing PDF Download
