A210.8X3.15
A210.8X3.15
A210.8X3.15
A210.8X3.15

A210.8X3.15

UGC DOR5969328
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.29 CAD - $11.29 CAD
$11.29 CAD
$11.29 CAD - $11.29 CAD
$11.29 CAD

Vendu en lots de : 1

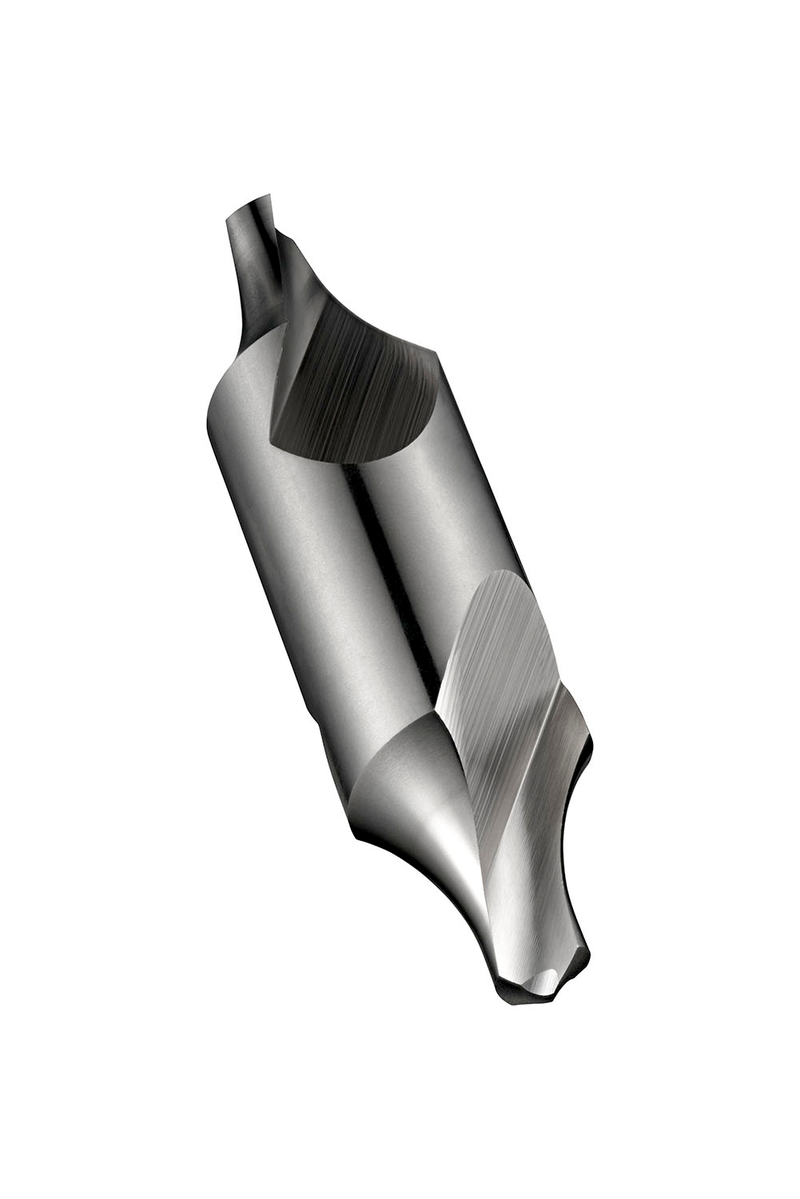

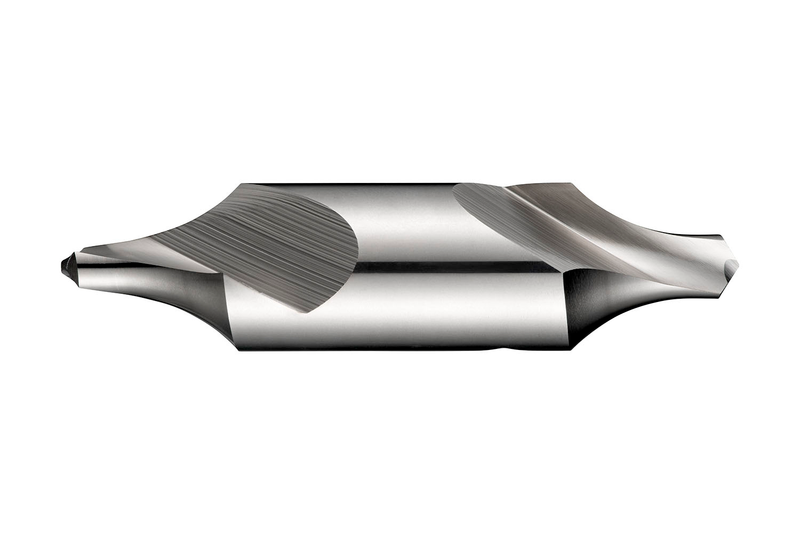

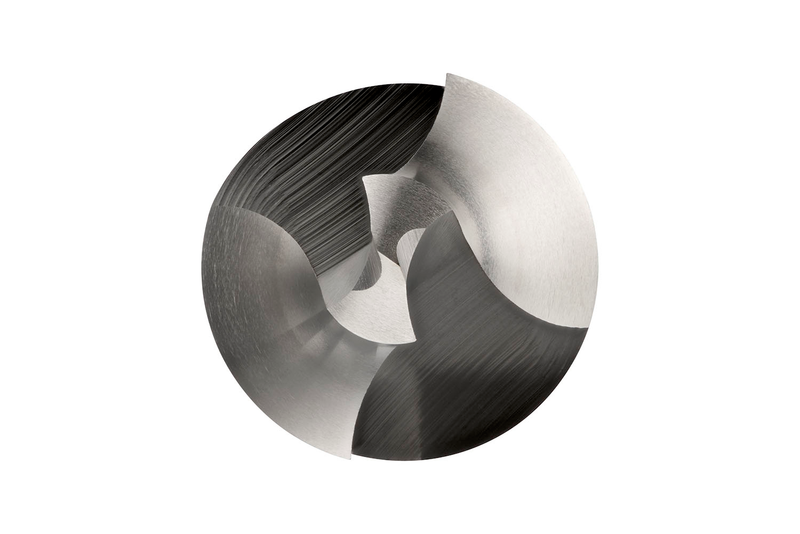

Foret à centrer (foret et fraise à chambrer combinés) à forme conique incurvée de 60°, à double extrémité et corps cylindrique, diamètre de perçage de 0,80 mm, diamètre de corps de 3,15 mm et longueur totale de 25 mm, selon la norme DIN 333R pour la production de trous de centrage normalisés selon la norme DIN 332 partie 1 forme R, HSS et finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A210.8X3.15
GradeLumineux
Product Number5969328
Product FamilyA210
Dimensions
Cutting Diameter — in (DC)0.0315"
Cutting Diameter — mm (DC)0.8 mm
Overall Length — in (OAL)0.9843"
Overall Length — mm (OAL)25.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333R
Reference Numbers
EDP Number31049
EAN7320760031049
File Type Download

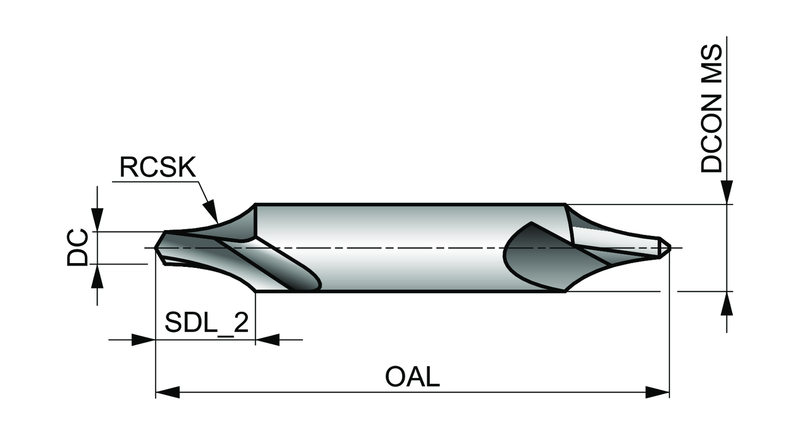

A210.8X3.15 — Line Drawing PDF Download
