UGC DOR5969333
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.11 CAD - $11.11 CAD
$11.11 CAD
$11.11 CAD - $11.11 CAD
$11.11 CAD

Vendu en lots de : 1

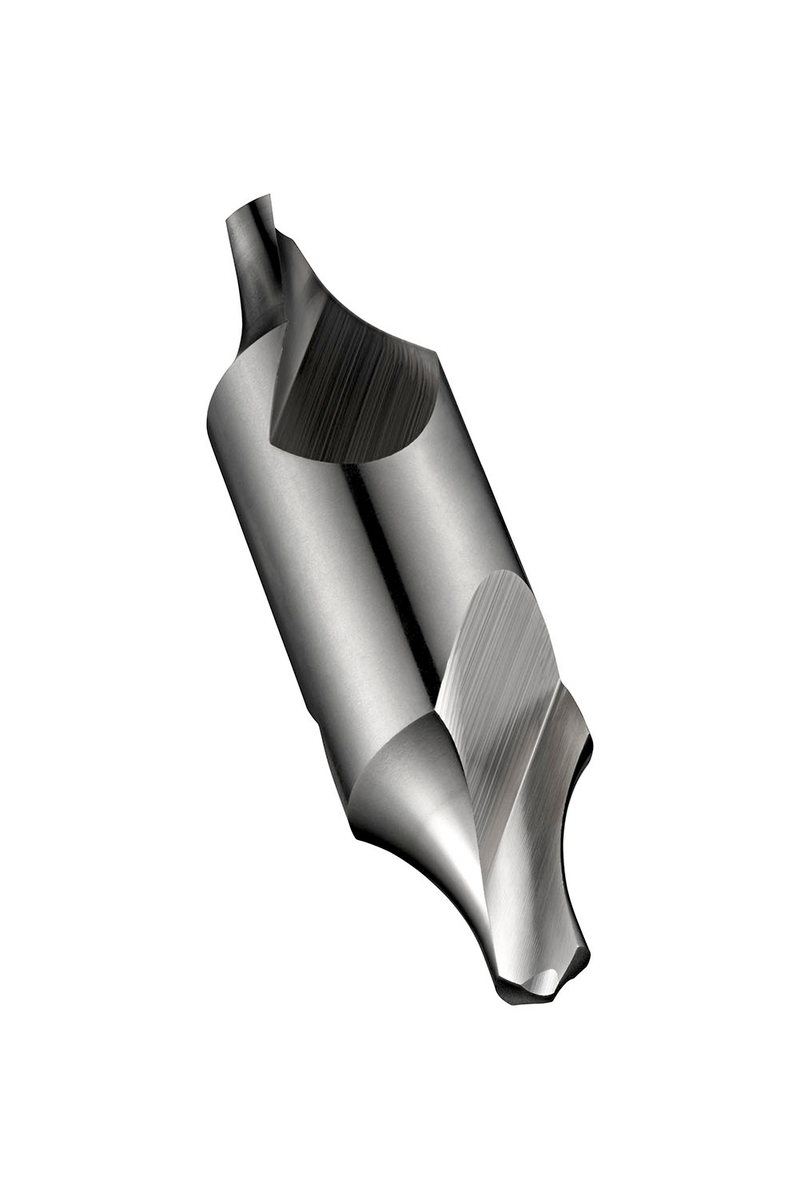

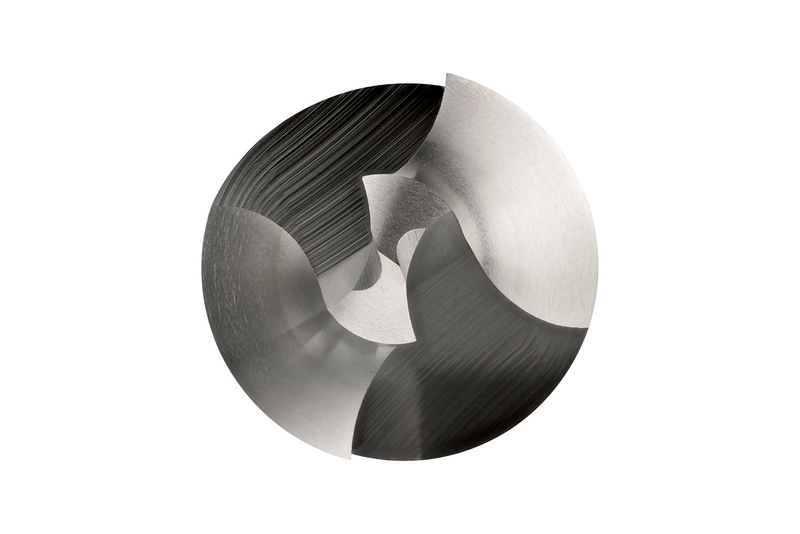

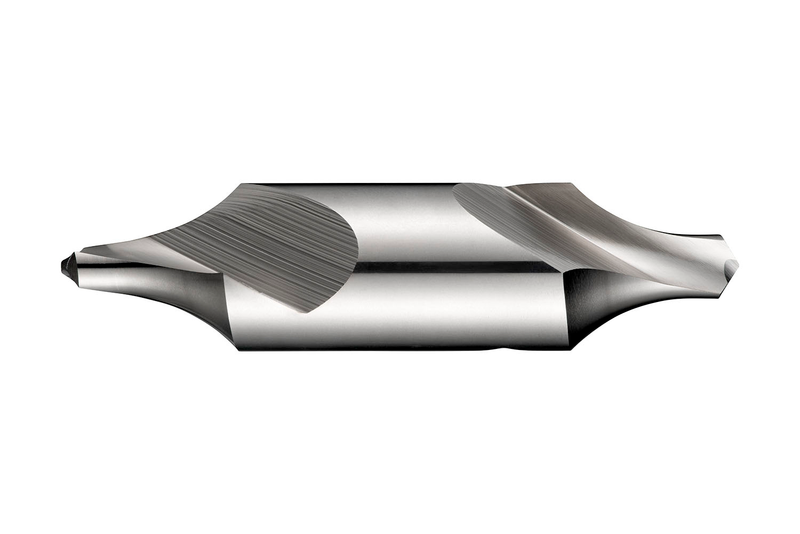

Foret à centrer (combiné perçage et chanfreinage) avec une forme conique courbée de 60°, double extrémité et corps cylindrique, diamètre de perçage de 1,00 mm, un diamètre de corps de 3,15 mm et une longueur totale de 31 mm, selon la norme DIN 333R pour la production de trous de centrage normalisés selon la norme DIN 332 partie 1 forme R, HSS et finition brillante pour l'usinage d'aciers de décolletage, d'aciers au carbone non alliés et alliés, et de fontes grises

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2101.0X3.15
GradeLumineux
Product Number5969333
Product FamilyA210

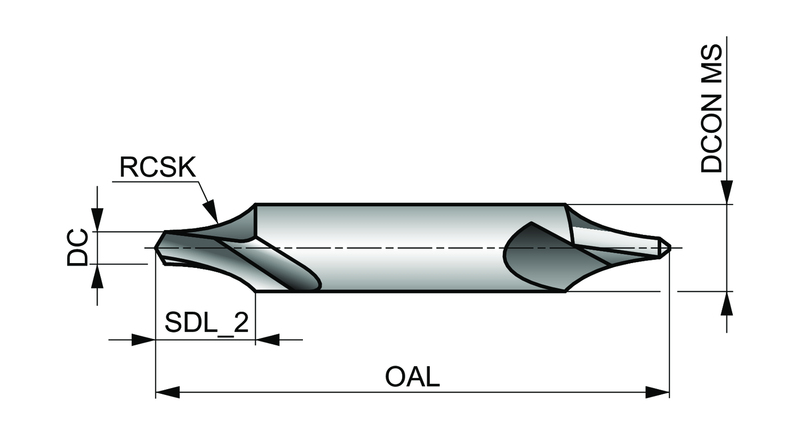

Dimensions
Cutting Diameter — in (DC)0.0394"
Cutting Diameter — mm (DC)1.0 mm
Overall Length — in (OAL)1.2205"
Overall Length — mm (OAL)31.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333R
Reference Numbers
EDP Number31056
EAN7320760031056
File Type Download
A2101.0X3.15 — Line Drawing PDF Download
