A2101.6X4.0
A2101.6X4.0
A2101.6X4.0
A2101.6X4.0

A2101.6X4.0

UGC DOR5969342
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.11 CAD - $11.11 CAD
$11.11 CAD
$11.11 CAD - $11.11 CAD
$11.11 CAD

Vendu en lots de : 1

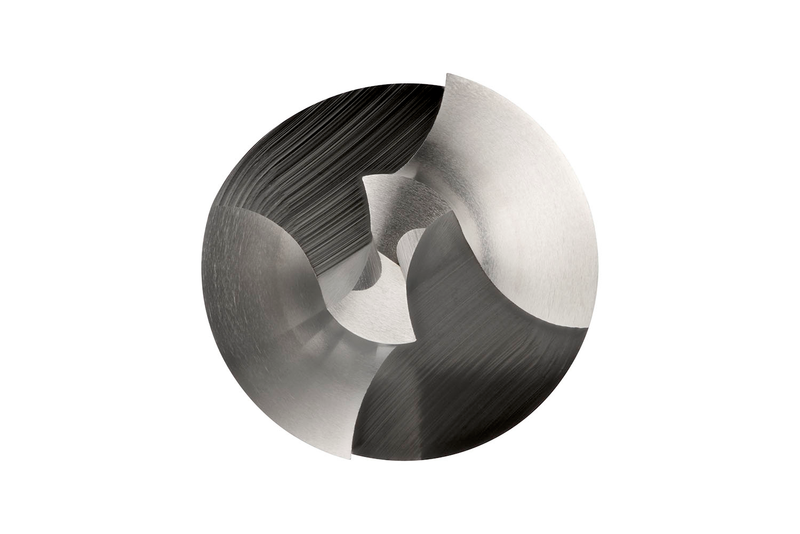

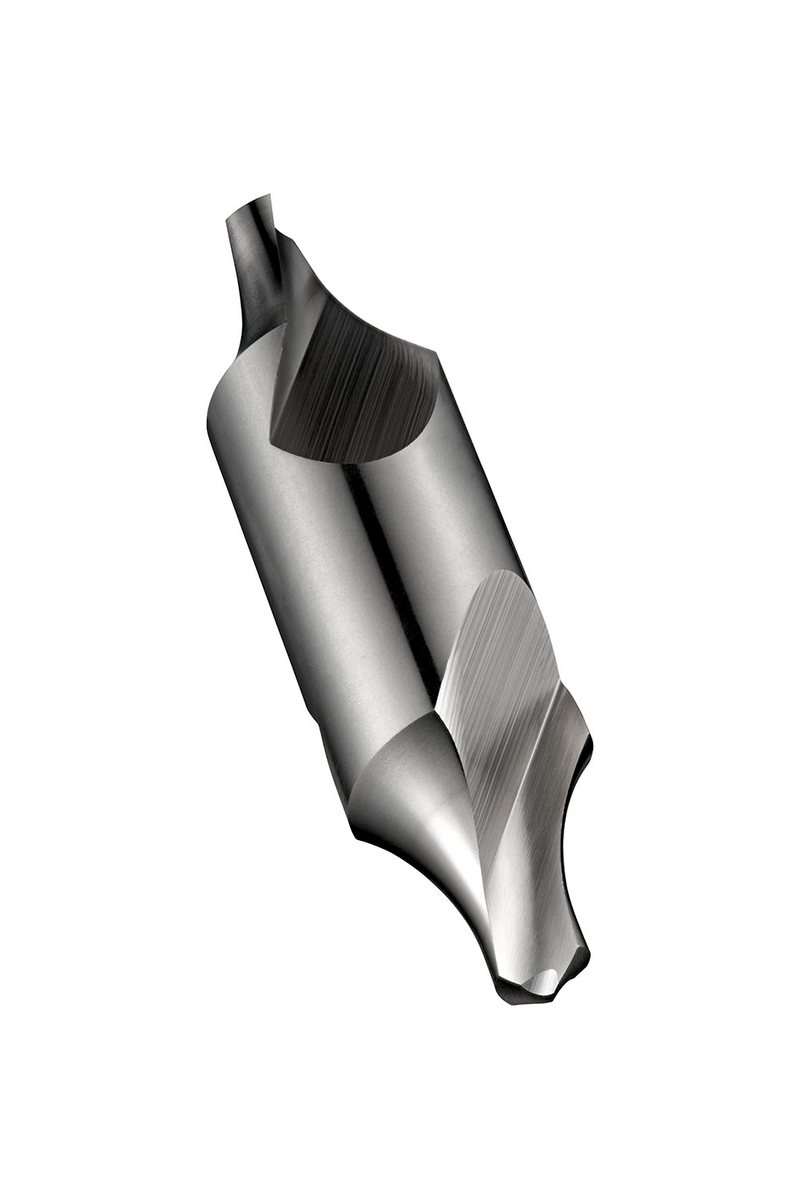

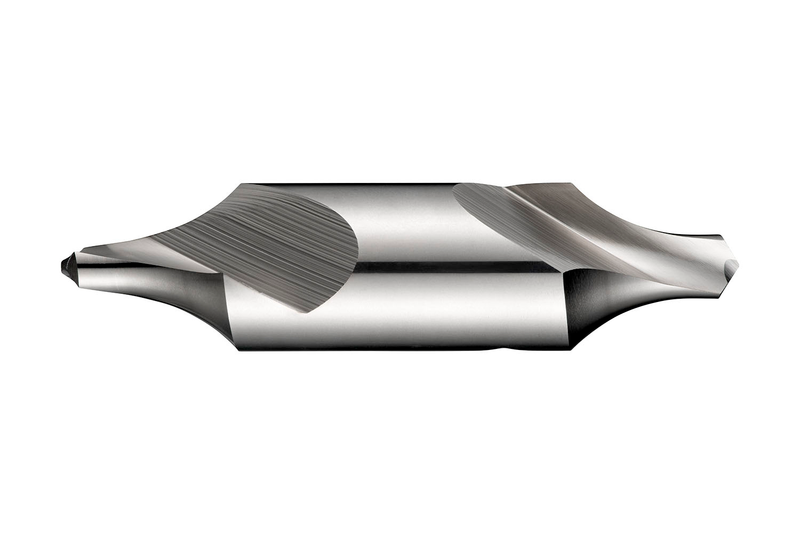

Foret à centrer (combiné perçage et chanfreinage) avec une forme conique incurvée de 60°, double extrémité et corps cylindrique, diamètre de perçage de 1,60mm, un diamètre de corps de 4,00mm et une longueur totale de 35mm, selon la norme DIN 333R pour produire des trous de centrage normalisés selon la norme DIN 332 partie 1 forme R, en HSS et finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2101.6X4.0
GradeLumineux
Product Number5969342
Product FamilyA210

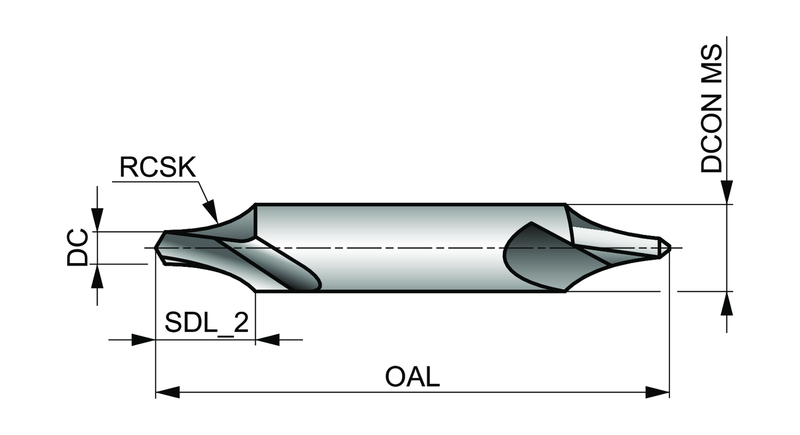

Dimensions
Cutting Diameter — in (DC)0.063"
Cutting Diameter — mm (DC)1.6 mm
Overall Length — in (OAL)1.378"
Overall Length — mm (OAL)35.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333R
Reference Numbers
EDP Number31070
EAN7320760031070
File Type Download
A2101.6X4.0 — Line Drawing PDF Download
