A2102.0X5.0
A2102.0X5.0
A2102.0X5.0
A2102.0X5.0

A2102.0X5.0

UGC DOR5969364
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.93 CAD - $11.93 CAD
$11.93 CAD
$11.93 CAD - $11.93 CAD
$11.93 CAD

Vendu en lots de : 1

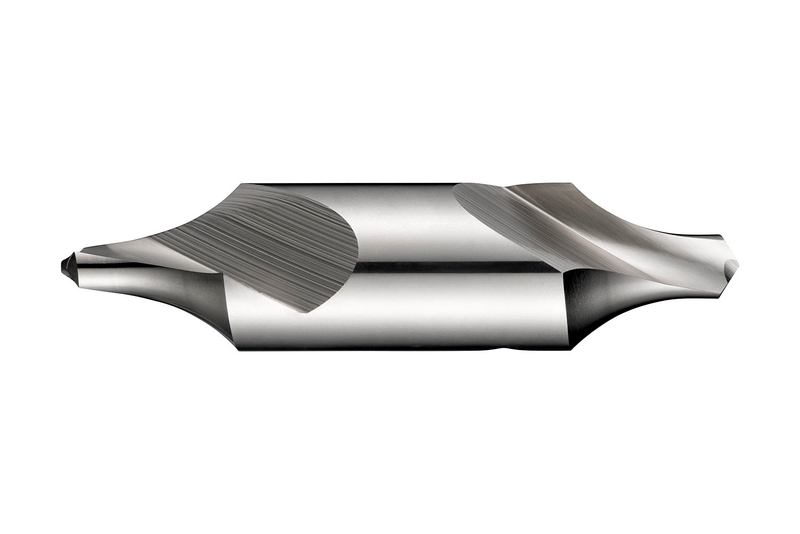

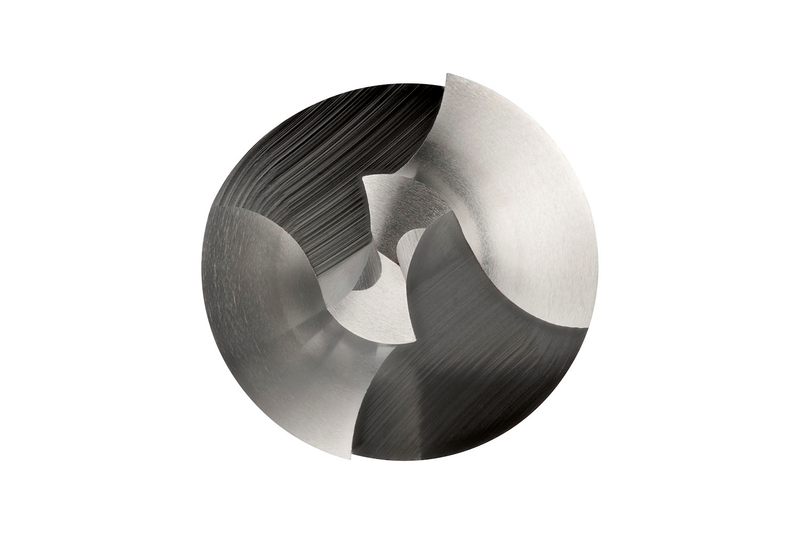

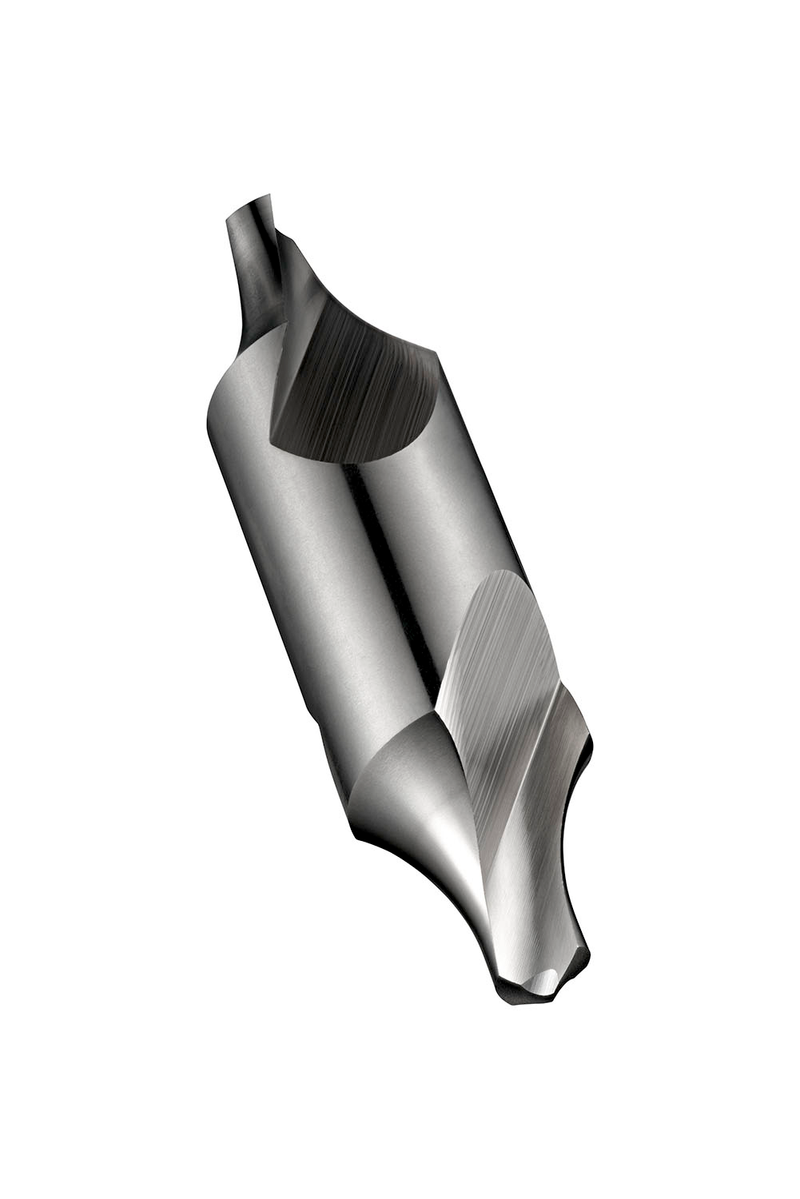

Foret à centrer (foret-taraud combiné) avec forme conique incurvée à 60°, double extrémité et corps cylindrique, diamètre de perçage de 2,00 mm, diamètre de corps de 5,00 mm et longueur totale de 40 mm, selon la norme DIN 333R pour produire des trous de centrage normalisés selon la norme DIN 332 partie 1 forme R, HSS et finition brillante pour l'usinage de l'acier à usinage libre, de l'acier au carbone non allié et allié et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2102.0X5.0
GradeLumineux
Product Number5969364
Product FamilyA210

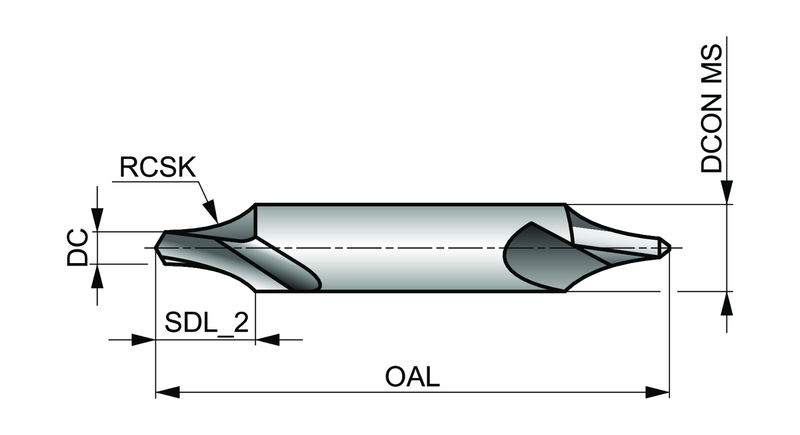

Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333R
Reference Numbers
EDP Number31094
EAN7320760031094
File Type Download
A2102.0X5.0 — Line Drawing PDF Download
