A2102.5X6.3
A2102.5X6.3
A2102.5X6.3
A2102.5X6.3

A2102.5X6.3

UGC DOR5969369
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.24 CAD - $13.24 CAD
$13.24 CAD
$13.24 CAD - $13.24 CAD
$13.24 CAD

Vendu en lots de : 1

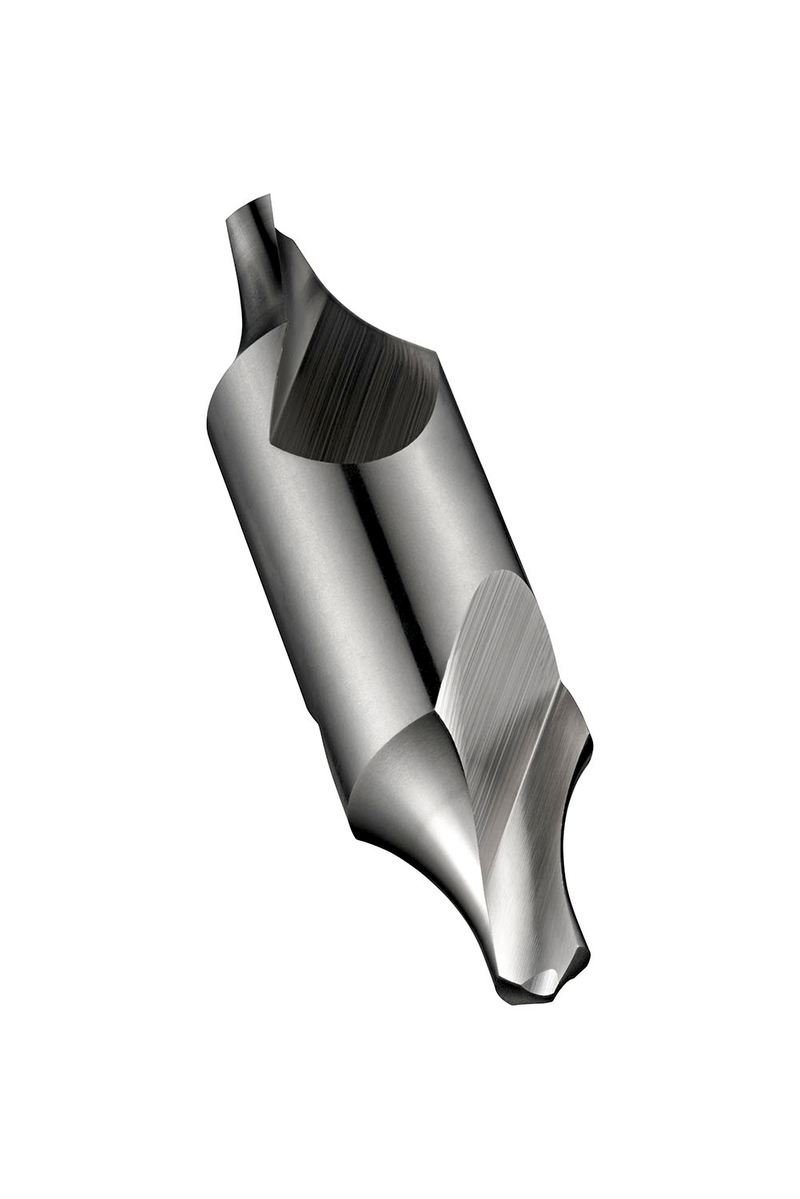

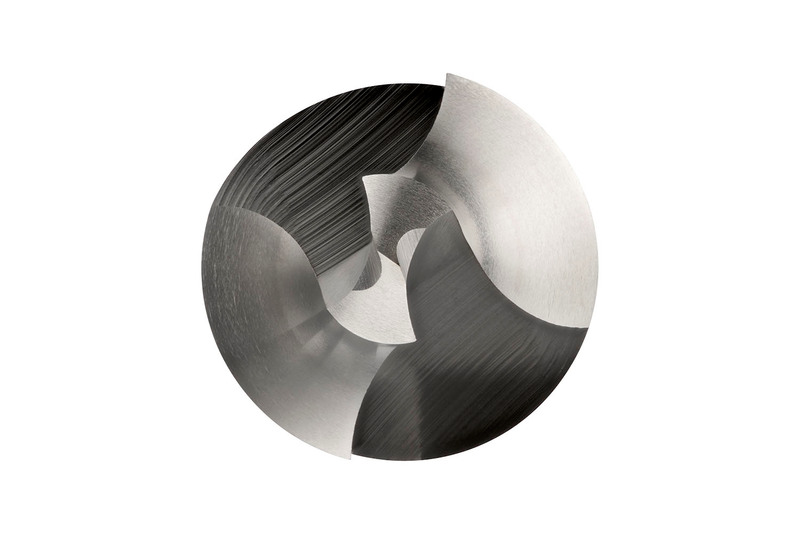

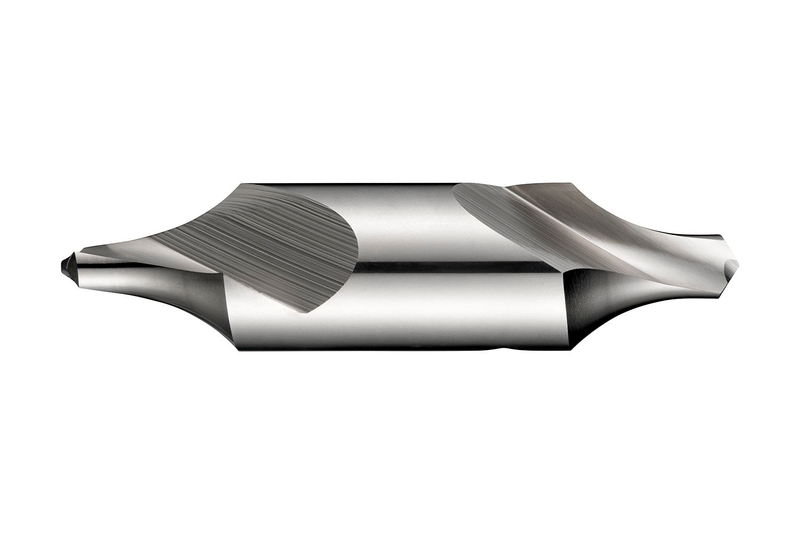

Foret à centrer (combiné foret et chanfrein) à forme conique incurvée à 60°, double extrémité et corps cylindrique, diamètre de perçage de 2,50 mm, diamètre de corps de 6,30 mm et longueur totale de 45 mm, selon la norme DIN 333R pour produire des trous de centrage normalisés selon la norme DIN 332 partie 1 forme R, HSS et finition brillante pour l'usinage d'aciers de décolletage, d'aciers au carbone non alliés et alliés et de fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI)A2102.5X6.3
Product Name (ISO)A2102,5X6,3
GradeLumineux
Product Number5969369
Product FamilyA210

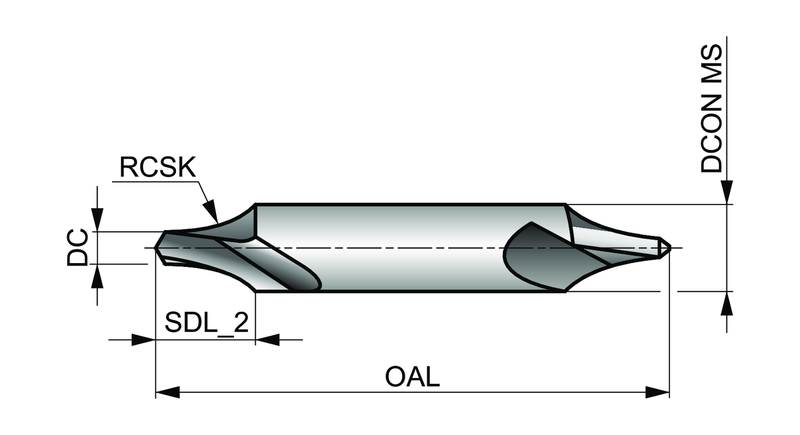

Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333R
Reference Numbers
EDP Number31100
EAN7320760031100
File Type Download
A2102.5X6.3 — Line Drawing PDF Download
