UGC DOR5969377
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.77 CAD - $24.77 CAD
$24.77 CAD
$24.77 CAD - $24.77 CAD
$24.77 CAD

Vendu en lots de : 1

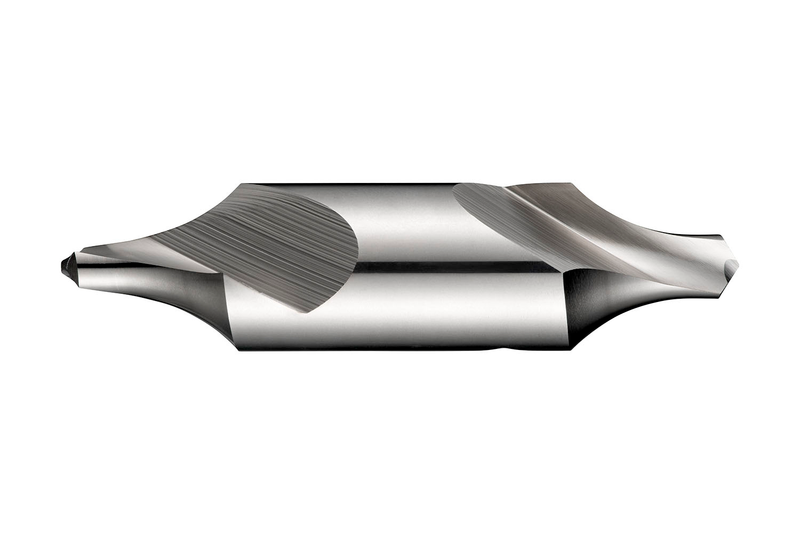

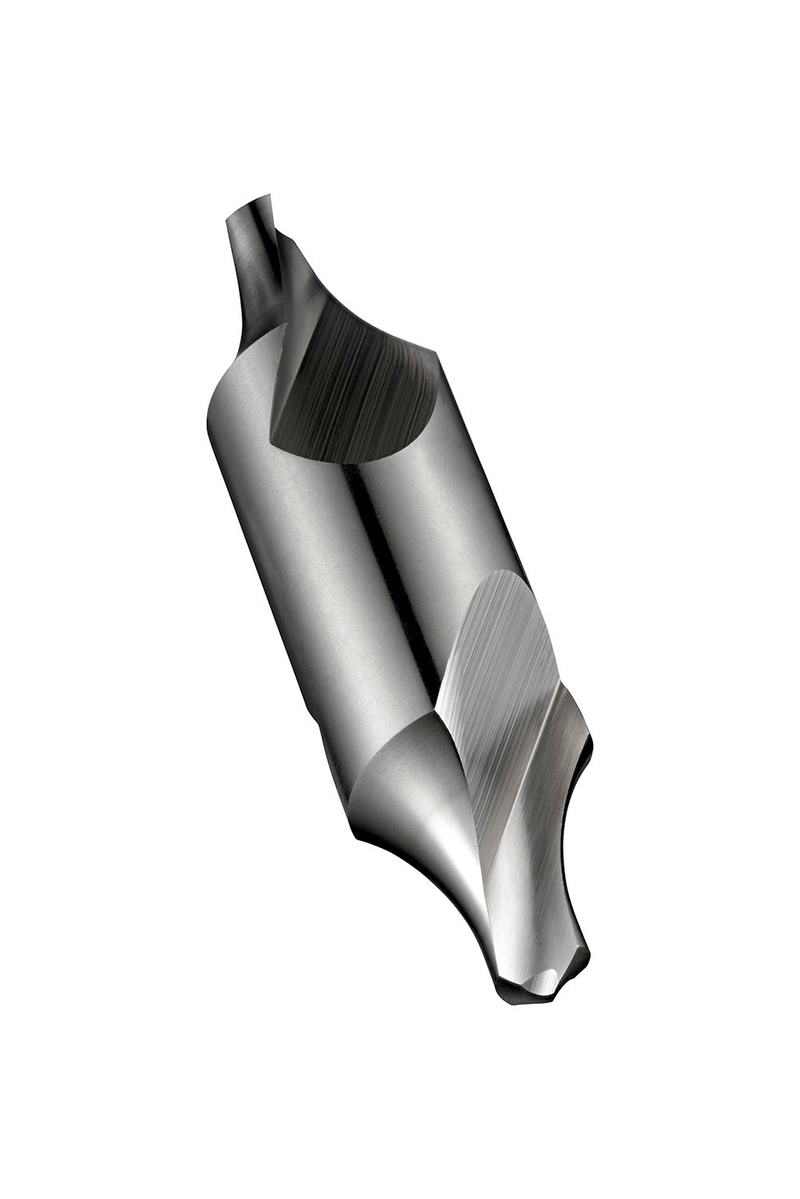

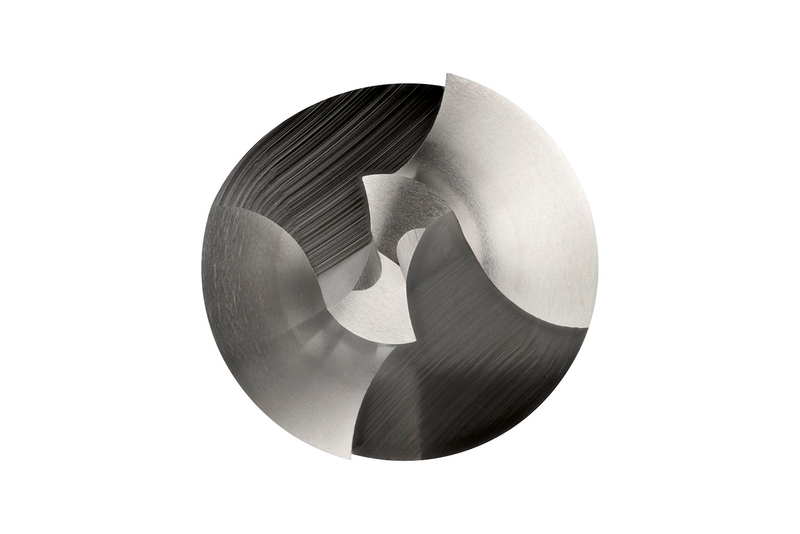

Foret à centrer (foret-taraud combiné) avec une forme conique courbe de 60°, à double extrémité et corps cylindrique, diamètre de perçage de 4,00 mm, diamètre de corps de 10,00 mm et longueur totale de 55 mm, selon la norme DIN 333R pour produire des trous de centrage normalisés selon la norme DIN 332 partie 1 forme R, HSS et finition brillante pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2104.0X10.0
GradeLumineux
Product Number5969377
Product FamilyA210

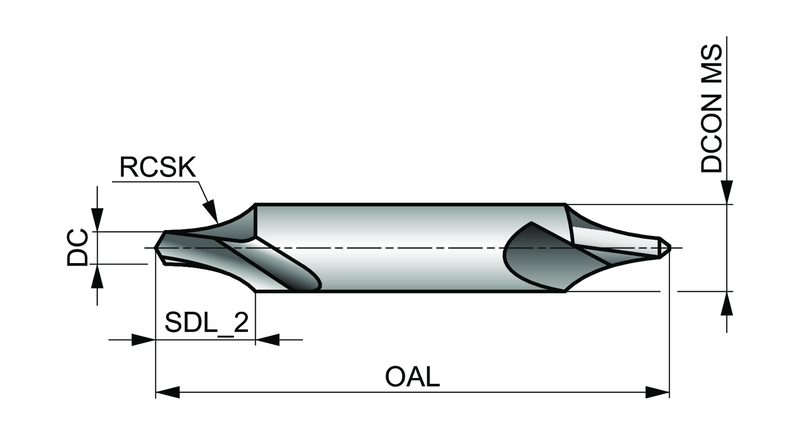

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333R
Reference Numbers
EDP Number31124
EAN7320760031124
File Type Download
A2104.0X10.0 — Line Drawing PDF Download
