A2105.0X12.5
A2105.0X12.5
A2105.0X12.5
A2105.0X12.5

A2105.0X12.5

UGC DOR5969381
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.07 CAD - $35.07 CAD
$35.07 CAD
$35.07 CAD - $35.07 CAD
$35.07 CAD

Vendu en lots de : 1

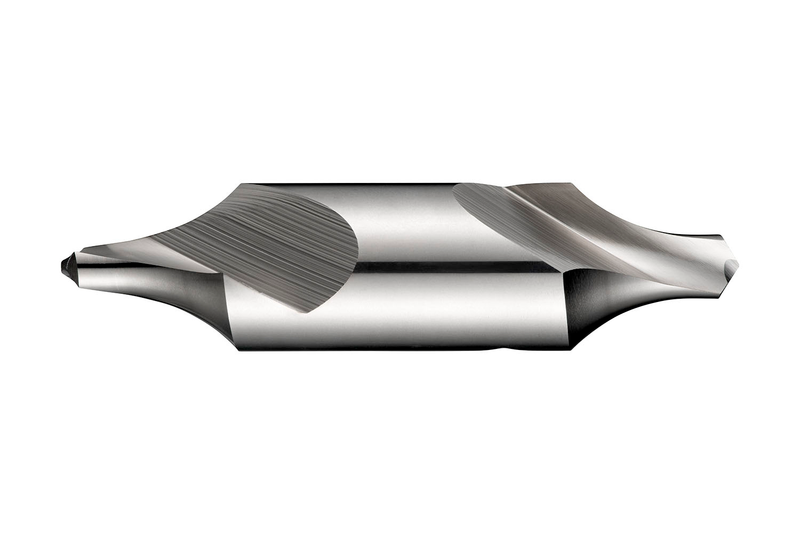

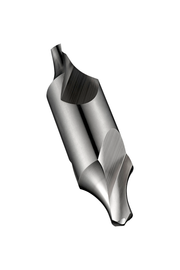

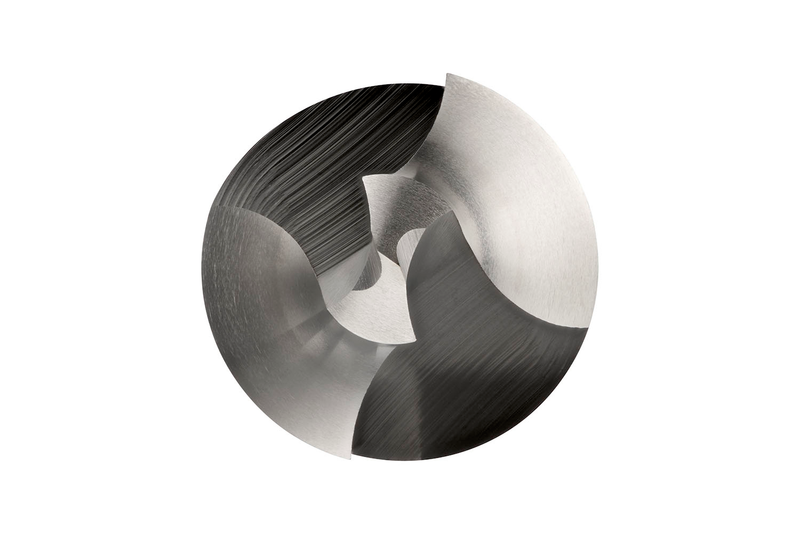

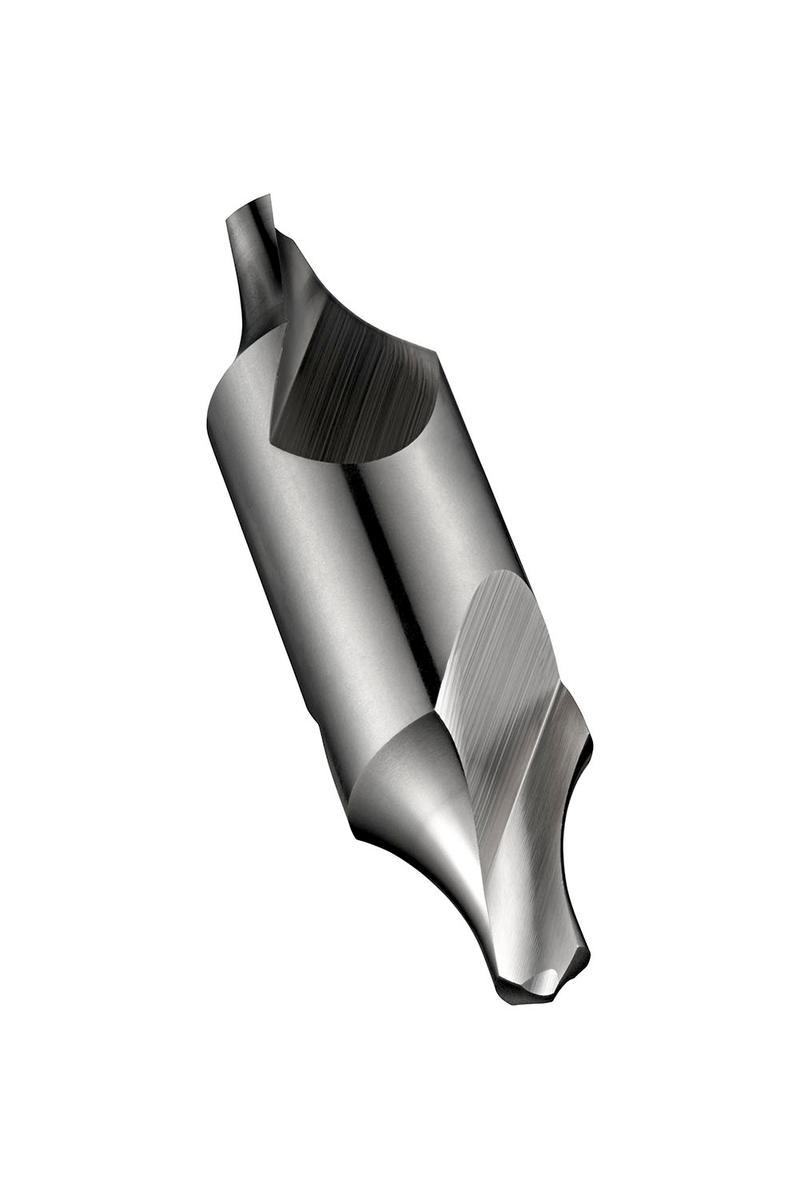

Foret à centrer (combiné foret et chanfreineur) avec forme conique courbe à 60°, double-face et corps cylindrique, diamètre de foret de 5,00 mm, diamètre de corps de 12,50 mm et longueur totale de 63 mm, selon la norme DIN 333R pour produire des trous de centrage normalisés selon la norme DIN 332 partie 1 forme R, HSS et finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2105.0X12.5
GradeLumineux
Product Number5969381
Product FamilyA210

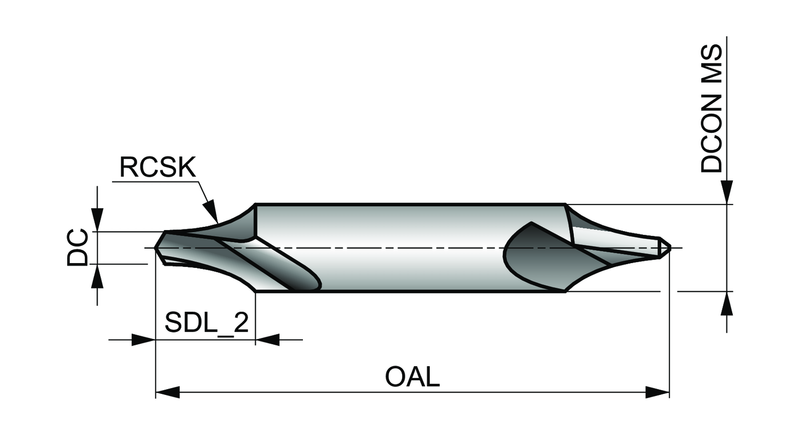

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333R
Reference Numbers
EDP Number31131
EAN7320760031131
File Type Download
A2105.0X12.5 — Line Drawing PDF Download
