A2108.0X20.0
A2108.0X20.0
A2108.0X20.0
A2108.0X20.0

A2108.0X20.0

UGC DOR5969389
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$85.41 CAD - $85.41 CAD
$85.41 CAD
$85.41 CAD - $85.41 CAD
$85.41 CAD

Vendu en lots de : 1

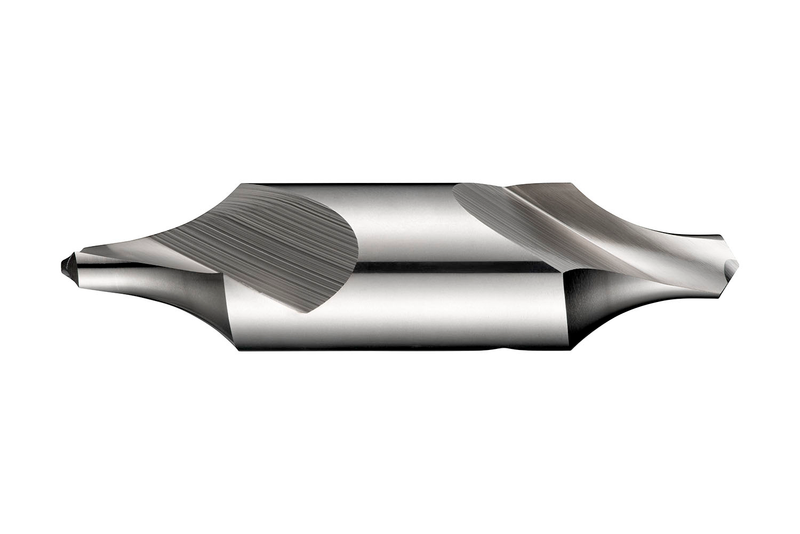

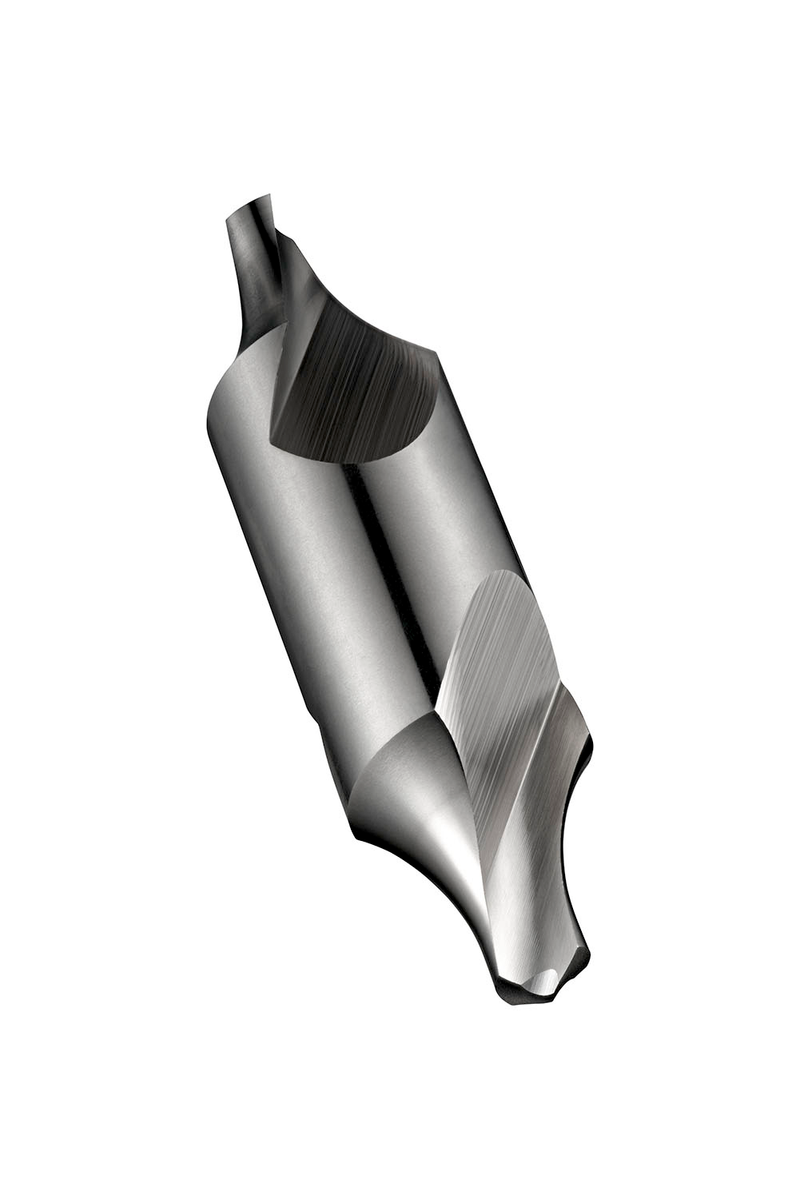

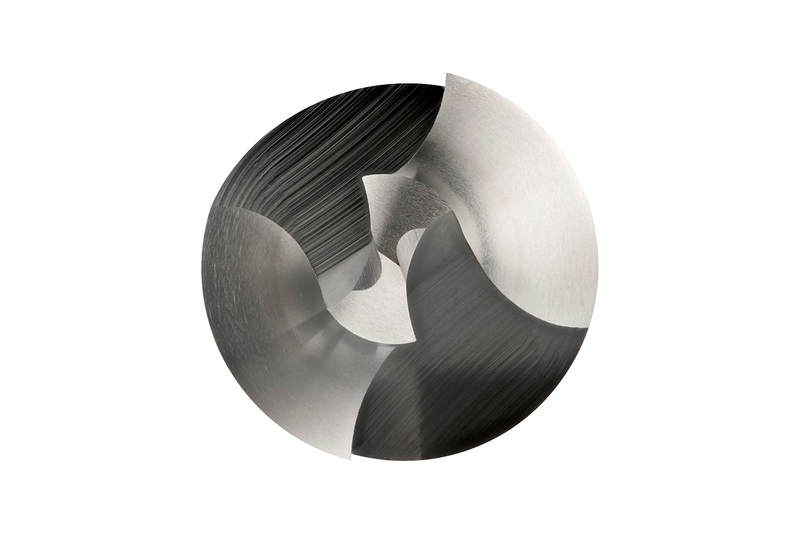

Foret à centrer (combiné perçage et chanfreinage) à forme conique incurvée de 60°, double-face et corps cylindrique, diamètre de perçage de 8,00 mm, diamètre de corps de 20,00 mm et longueur totale de 80 mm, selon la norme DIN 333R pour la production de trous de centrage normalisés selon la norme DIN 332 partie 1 forme R, HSS et finition brillante pour l'usinage d'acier à usinage facile, d'acier au carbone et allié, et de fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2108.0X20.0
GradeLumineux
Product Number5969389
Product FamilyA210

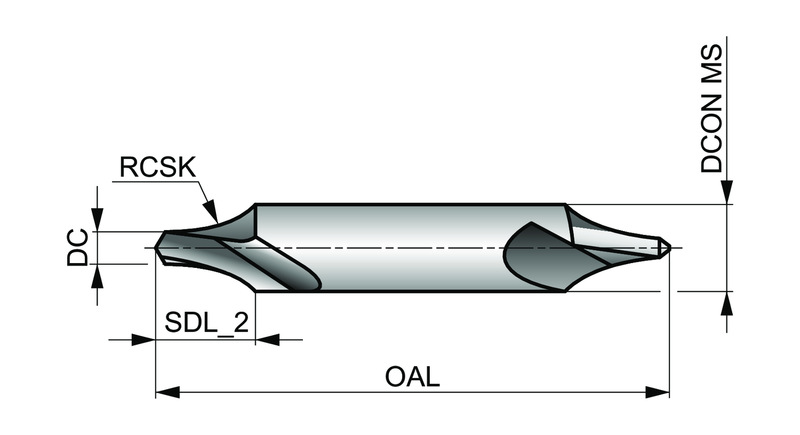

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333R
Reference Numbers
EDP Number31155
EAN7320760031155
File Type Download
A2108.0X20.0 — Line Drawing PDF Download
