A217N2
A217N2

A217N2

UGC DOR5969412
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.40 CAD - $10.40 CAD
$10.40 CAD
$10.40 CAD - $10.40 CAD
$10.40 CAD

Vendu en lots de : 1

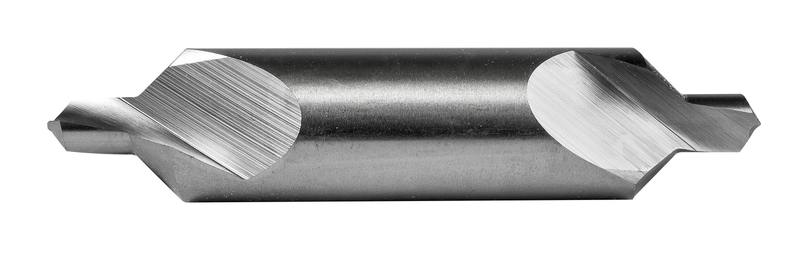

Foret à centrer (combiné perçage et chanfreinage) à forme conique droite de 82°, à double extrémité et corps cylindrique, taille 2 avec diamètre de perçage de 5/64", diamètre du corps de 3/16" et longueur totale de 1,7/8", selon la norme ANSI pour produire des trous de centrage de forme A ou des avant-trous et logements coniques pour vis à tête fraisée de norme américaine, en HSS et finition brillante pour l'usinage des aciers de décolletage, au carbone et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A217N2
GradeLumineux
Product Number5969412
Product FamilyA217
Dimensions
Cutting Diameter — in (DC)0.0781"
Cutting Diameter — mm (DC)1.98 mm
Overall Length — in (OAL)1.875"
Overall Length — mm (OAL)47.63 mm
Flute Length — in (LCF)0.5156"
Flute Length — mm (LCF)13.1 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number239223
EAN7320760239223
File Type Download
A217N2 — Line Drawing PDF Download
