A217N6
A217N6

A217N6

UGC DOR5969422
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.10 CAD - $29.10 CAD
$29.10 CAD
$29.10 CAD - $29.10 CAD
$29.10 CAD

Vendu en lots de : 1

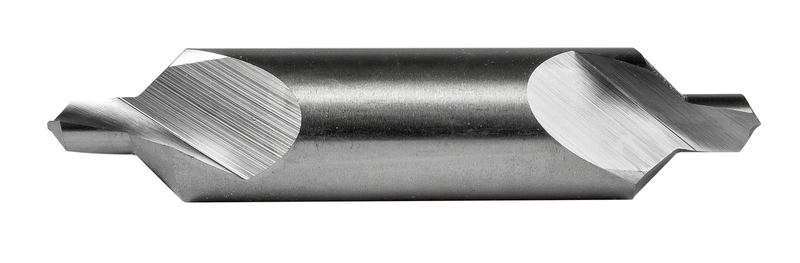

Forets à centrer (forêt et fraise conique combinés) à forme conique droite de 82°, double embout et corps cylindrique, taille 6 avec un diamètre de foret de 7/32", un diamètre de corps de 1/2" et une longueur totale de 3", conforme à la norme ANSI pour la production de trous de centrage de forme A ou de trous pilotes de démarrage et de sièges coniques pour les vis à tête fraisée standard US, en HSS et finition brillante pour l'usinage d'acier à usinage facile, d'acier au carbone et allié et de fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A217N6
GradeLumineux
Product Number5969422
Product FamilyA217
Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Flute Length — in (LCF)1.0"
Flute Length — mm (LCF)25.4 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number239261
EAN7320760239261
File Type Download
A217N6 — Line Drawing PDF Download
