UGC DOR5969428
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.13 CAD - $18.13 CAD
$18.13 CAD
$18.13 CAD - $18.13 CAD
$18.13 CAD

Vendu en lots de : 1

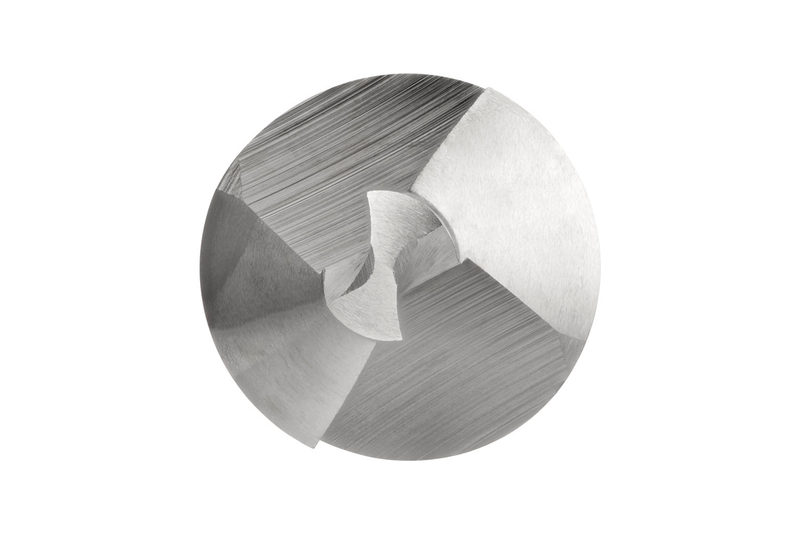

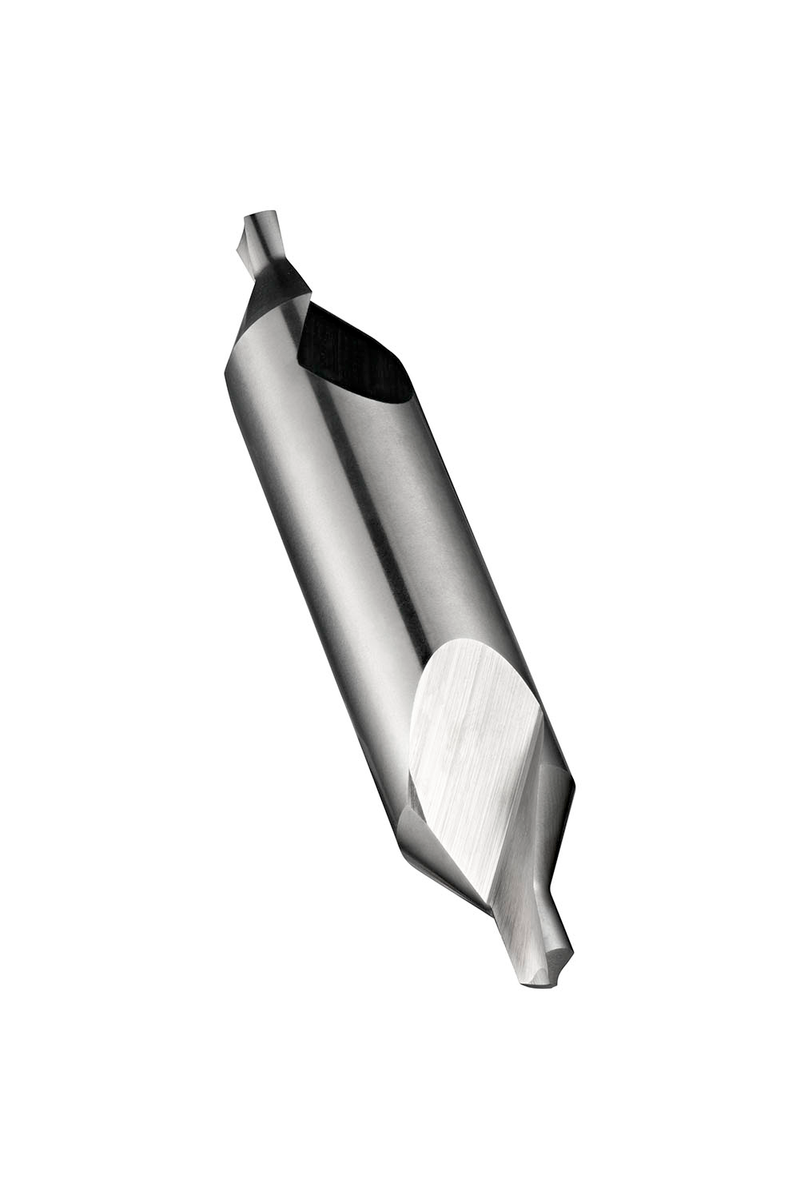

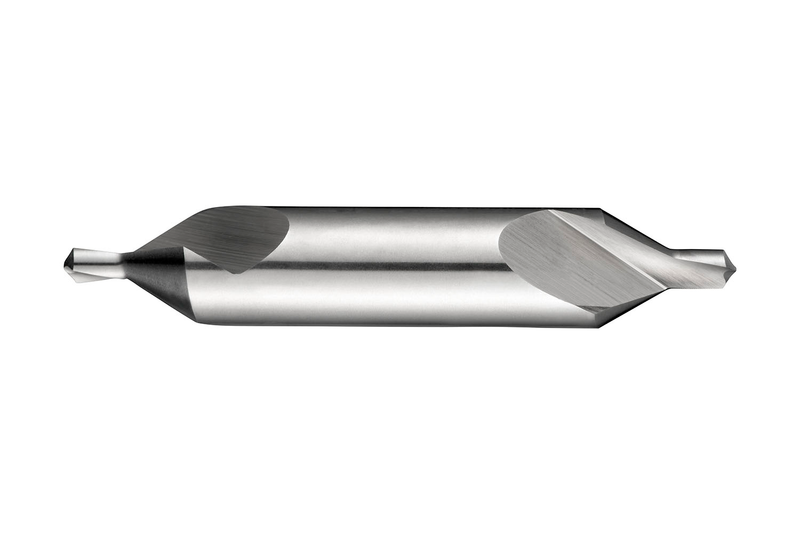

Forets à centrer (forêt et fraise conique combinés) à forme conique droite 60°, double-face et corps cylindrique, diamètre de perçage de 3,15mm, diamètre du corps de 10,00mm et longueur totale de 56mm, selon la norme DORMER pour produire des trous de centrage normalisés selon DIN 332 partie 1 forme A, HSS et finition brillante pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2013.15X10.0
GradeLumineux
Product Number5969428
Product FamilyA201

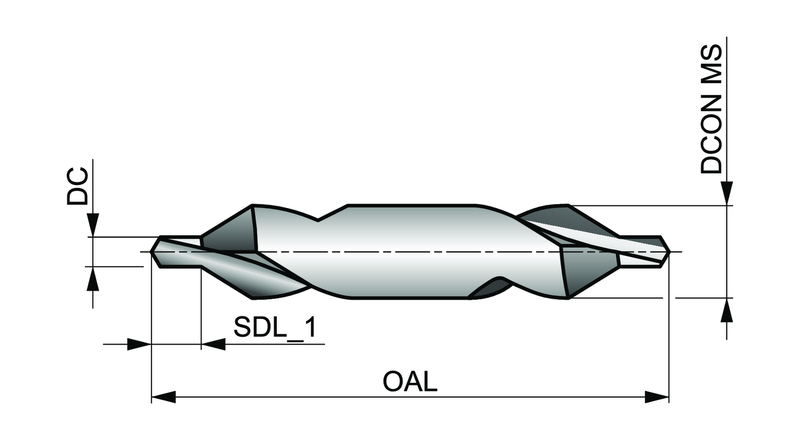

Dimensions
Cutting Diameter — in (DC)0.124"
Cutting Diameter — mm (DC)3.15 mm
Overall Length — in (OAL)2.2047"
Overall Length — mm (OAL)56.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)122°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number215135
EAN7320760215135
File Type Download
A2013.15X10.0 — Line Drawing PDF Download
