UGC DOR5969430
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.99 CAD - $41.99 CAD
$41.99 CAD
$41.99 CAD - $41.99 CAD
$41.99 CAD

Vendu en lots de : 1

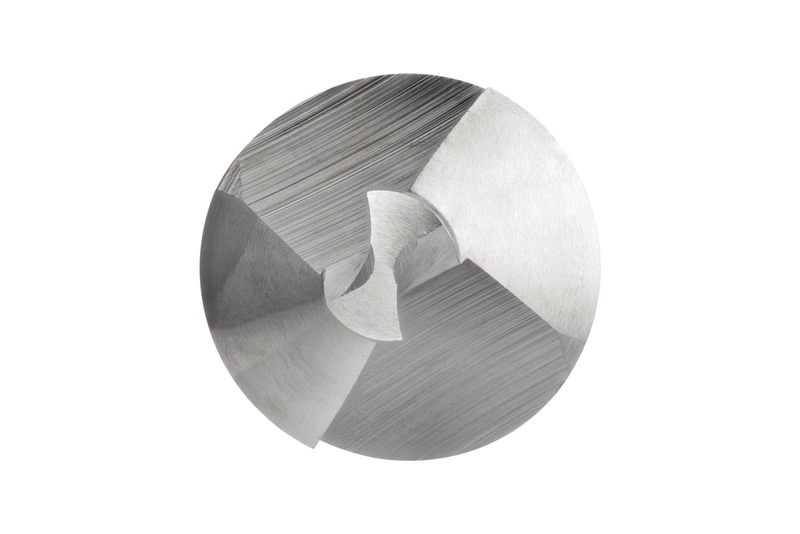

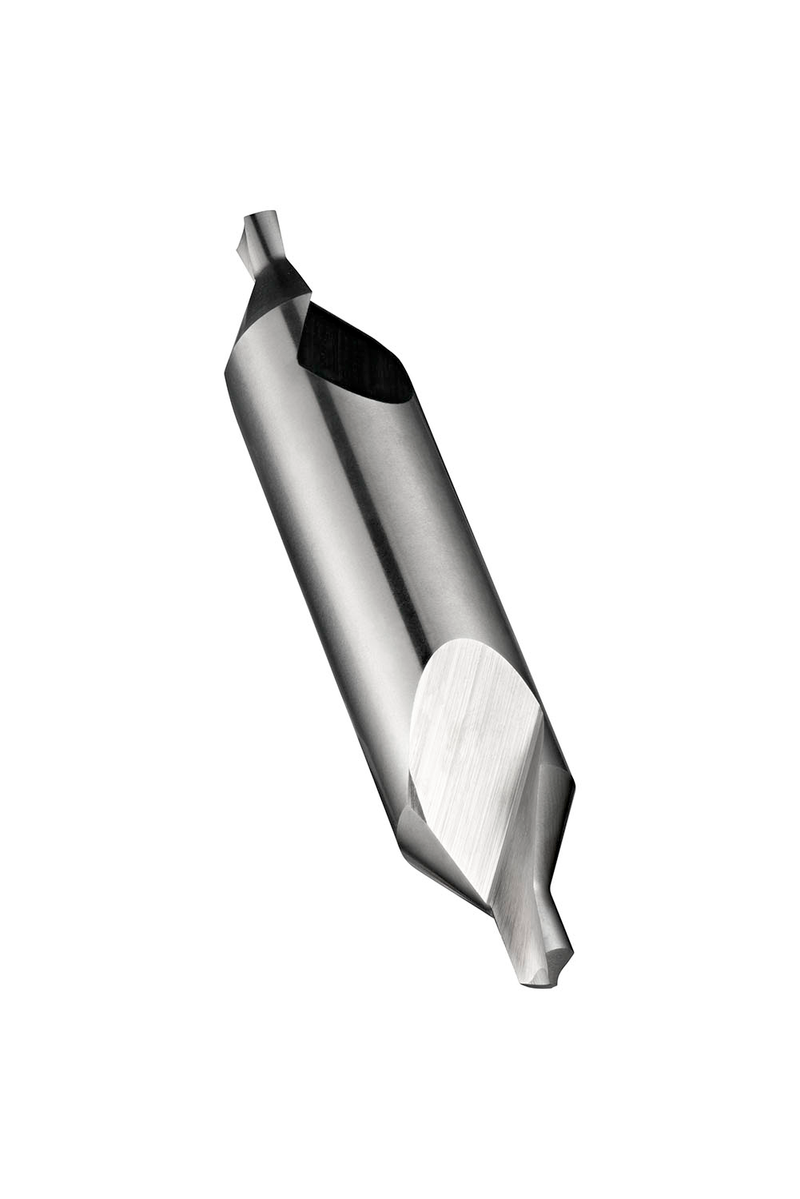

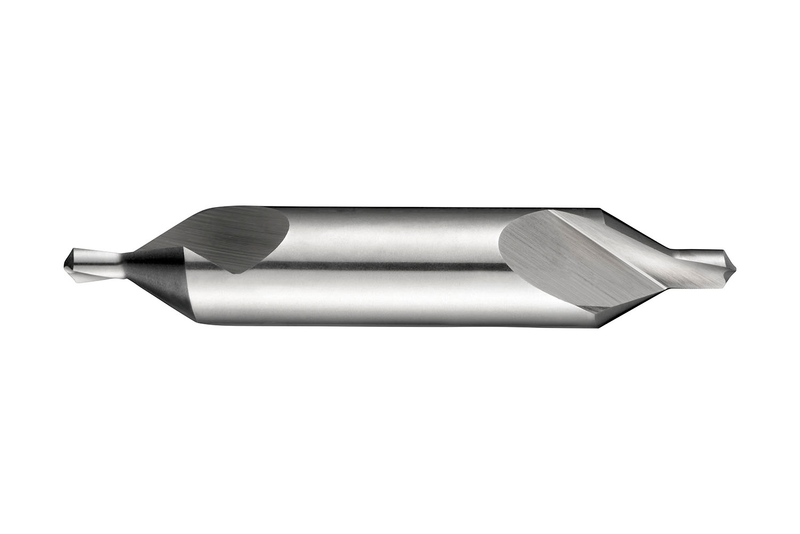

Foret à centrer (foret et fraise à chambrer combinés) à forme conique droite de 60°, à double extrémité et corps cylindrique, diamètre de perçage de 5,00 mm, diamètre de corps de 14,00 mm et longueur totale de 78 mm, selon la norme DORMER pour la production de trous de centrage normalisés selon DIN 332 partie 1 forme A, HSS et finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2015.0X14.0
GradeLumineux
Product Number5969430
Product FamilyA201

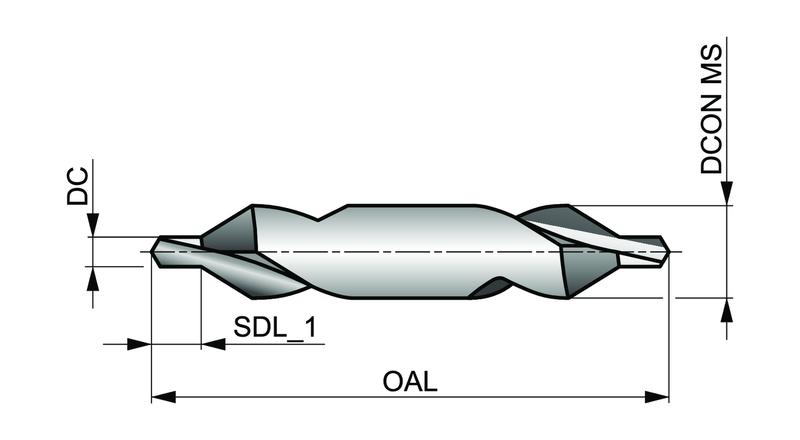

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)3.0709"
Overall Length — mm (OAL)78.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)122°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number138946
EAN7320760138946
File Type Download
A2015.0X14.0 — Line Drawing PDF Download
