A13032,5
A13032,5
A13032,5

A13032,5

UGC DOR5969570
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$395.07 CAD - $395.07 CAD
$395.07 CAD
$395.07 CAD - $395.07 CAD
$395.07 CAD

Vendu en lots de : 1

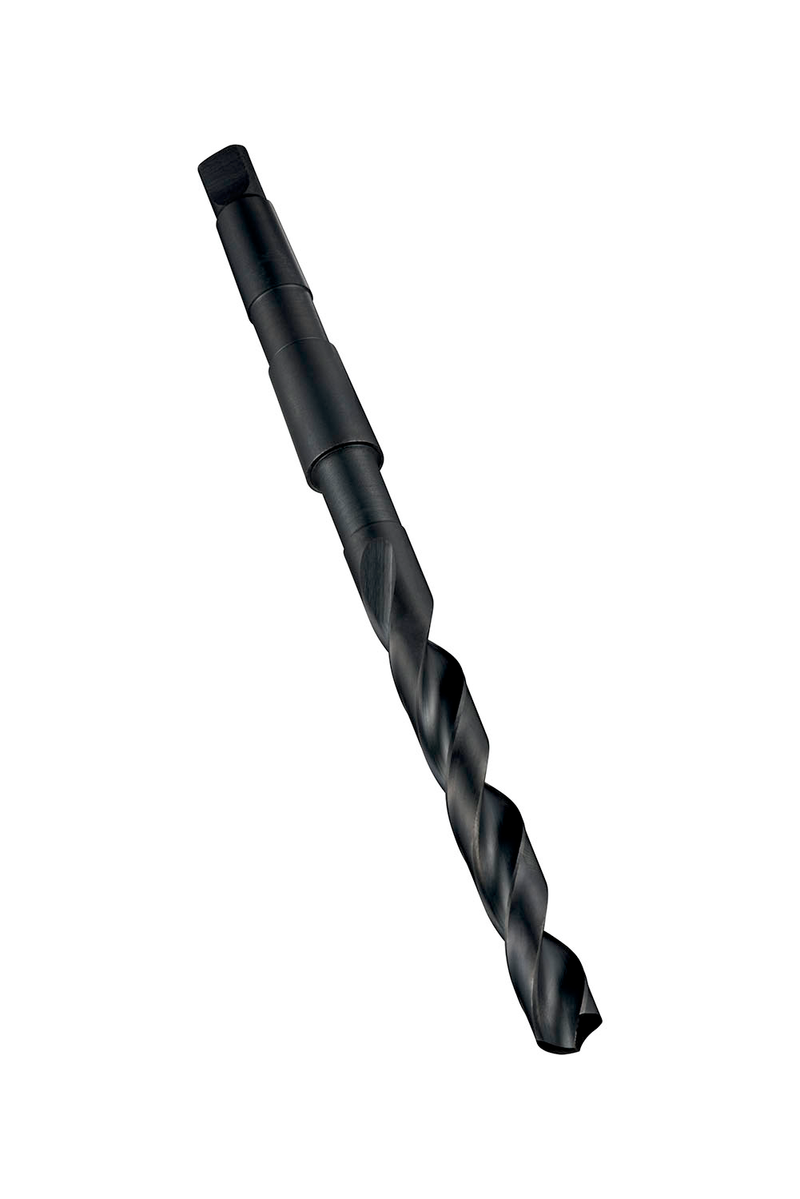

Foret jobber à queue conique, diamètre 32,5 mm, longueur totale 334 mm et longueur de coupe 185 mm selon la norme DIN 345 avec pointe conique amincie de 118°, en HSS avec finition trempée vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)A13032.5
Product Name (ISO)A13032,5
GradeTrempé à la vapeur
Product Number5969570
Product FamilyA130
Dimensions
Cutting Diameter — in (DC)1.2795"
Cutting Diameter — mm (DC)32.5 mm
Overall Length — in (OAL)13.1496"
Overall Length — mm (OAL)334.0 mm
Flute Length — in (LCF)7.2835"
Flute Length — mm (LCF)185.0 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 345
Reference Numbers
EDP Number24478
EAN7320760024478
File Type Download
A13032,5 — 3D Model STP Download
A13032,5 — Line Drawing PDF Download
