A1701.1/16
A1701.1/16
A1701.1/16
A1701.1/16

A1701.1/16

UGC DOR5969714
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$113.09 CAD - $113.09 CAD
$113.09 CAD
$113.09 CAD - $113.09 CAD
$113.09 CAD

Vendu en lots de : 1

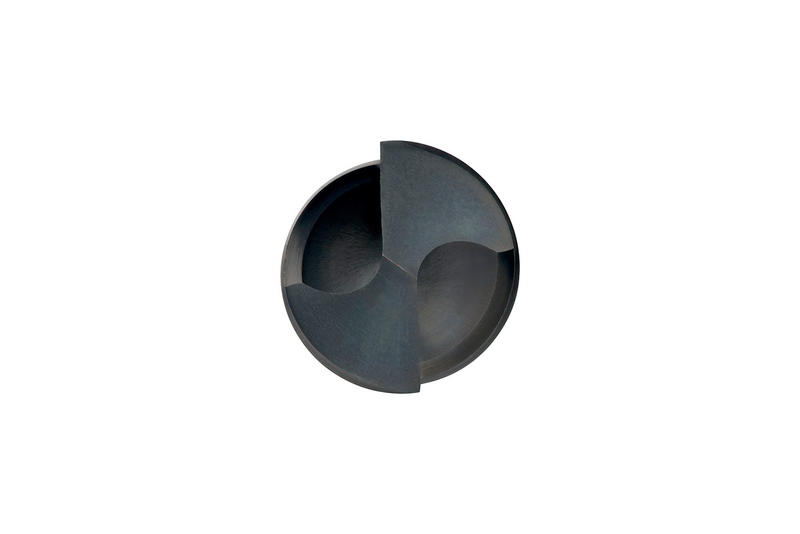

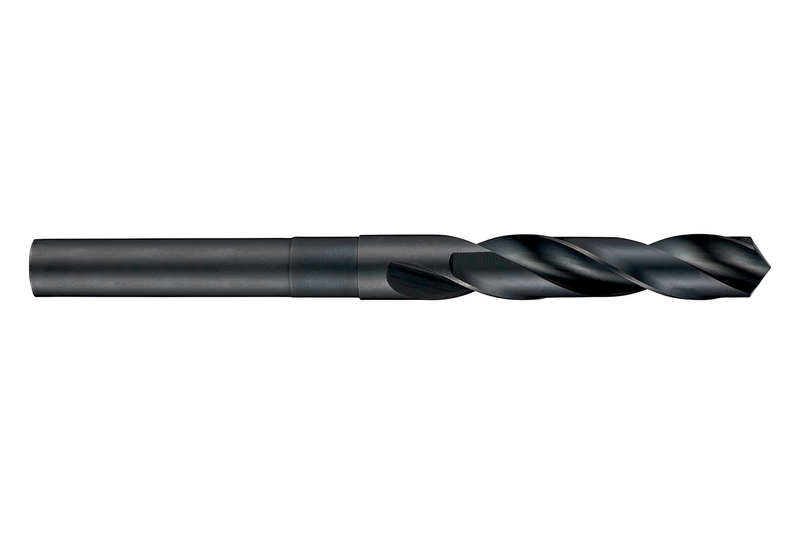

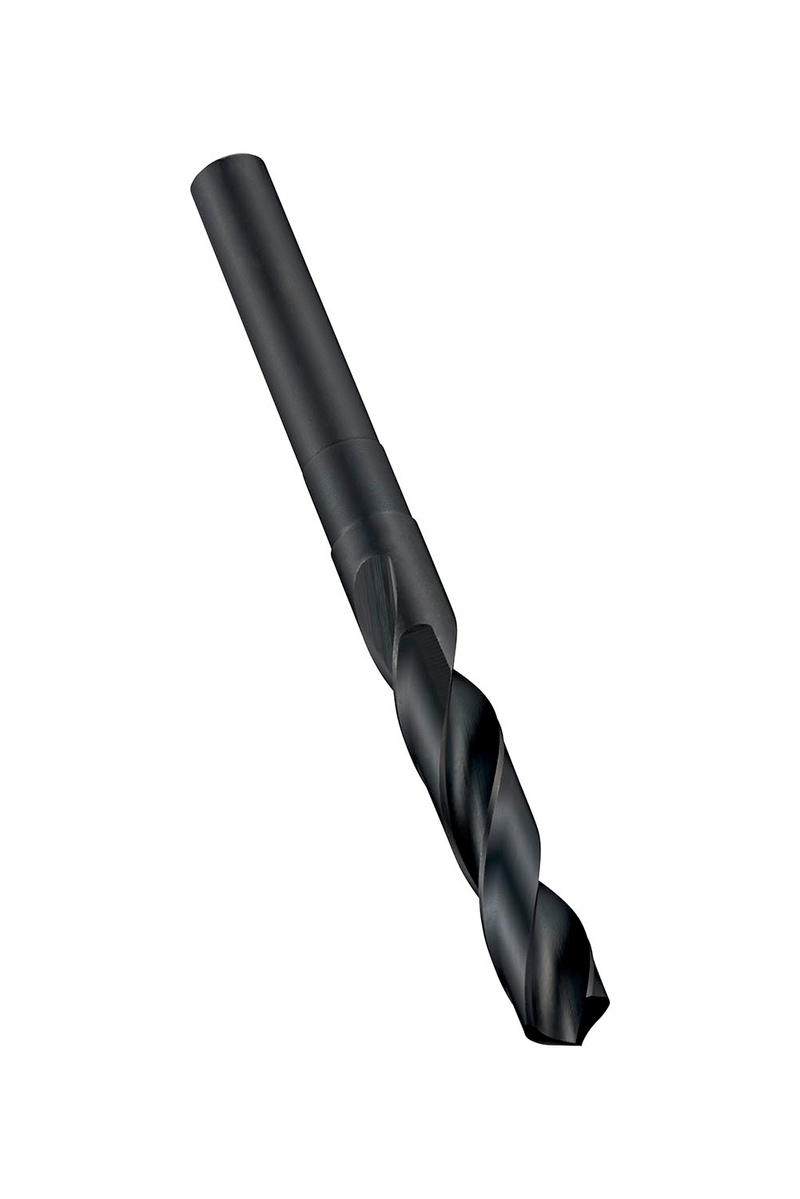

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre de 1,0625" (1.1/16) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme DORMER avec un angle de pointe de 118°, en HSS avec finition trempée vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1701.1/16
GradeTrempé à la vapeur
Product Number5969714
Product FamilyA170
Dimensions
Cutting Diameter — in (DC)1.0625"
Cutting Diameter — mm (DC)26.99 mm
Cutting Diameter — Fractional1.1/16
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique réduite
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number172735
EAN7320760172735
File Type Download
A1701.1/16 — 3D Model STP Download
A1701.1/16 — Line Drawing PDF Download
