A1701.1/32
A1701.1/32
A1701.1/32
A1701.1/32

A1701.1/32

UGC DOR5969721
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$117.37 CAD - $117.37 CAD
$117.37 CAD
$117.37 CAD - $117.37 CAD
$117.37 CAD

Vendu en lots de : 1

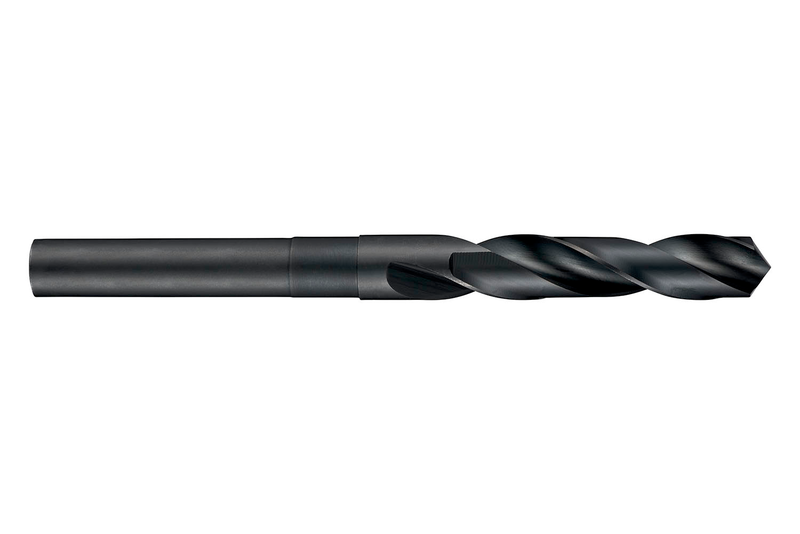

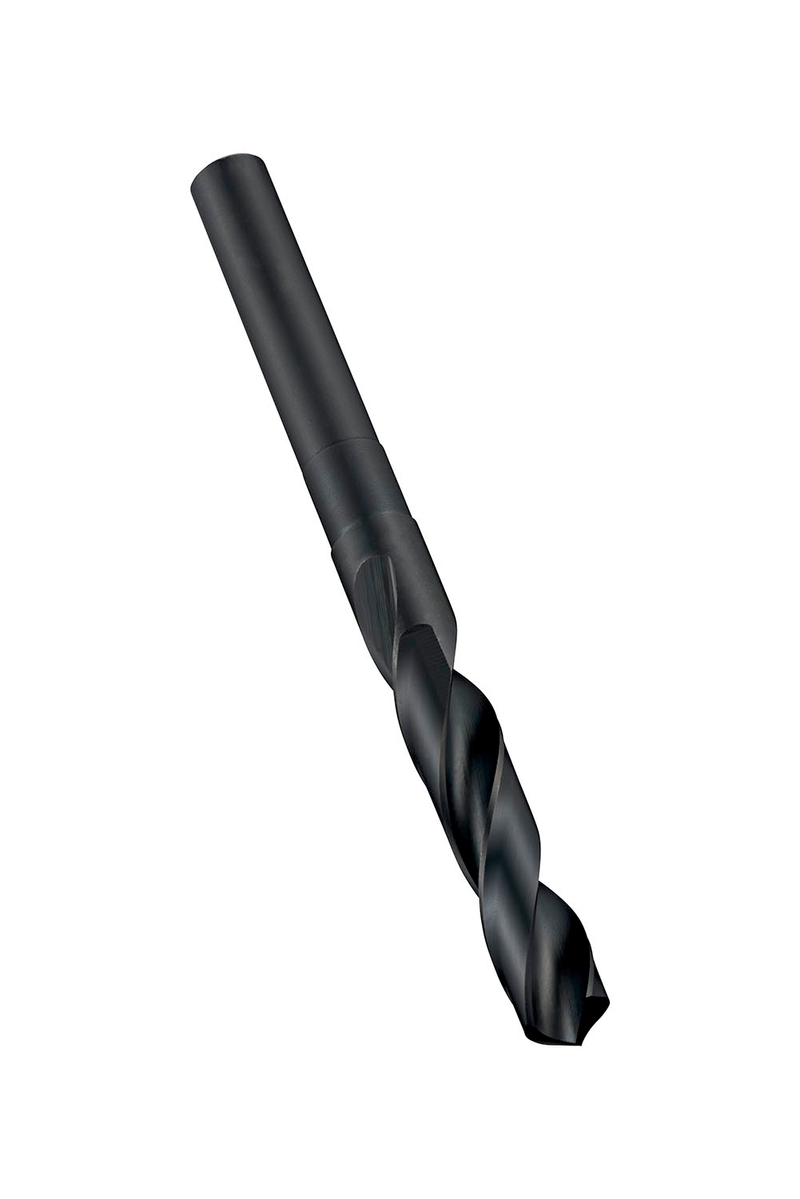

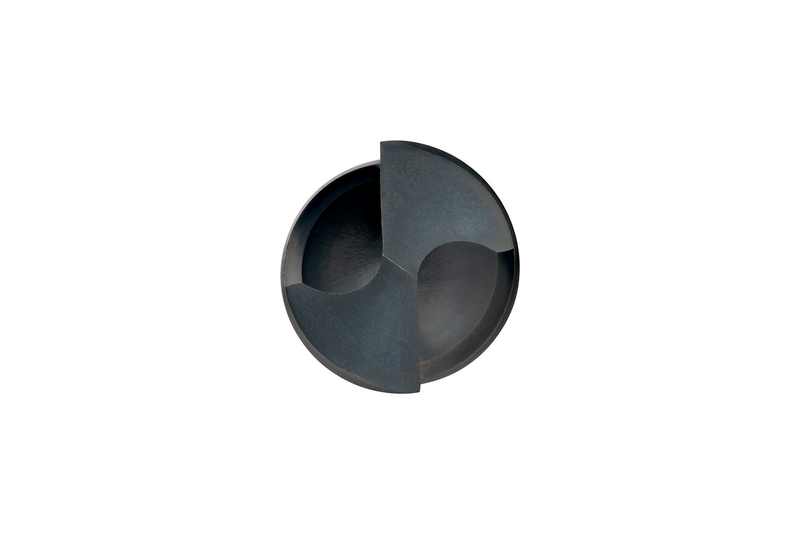

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre de 1,0313" (1.1/32) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme DORMER avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour le perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1701.1/32
GradeTrempé à la vapeur
Product Number5969721
Product FamilyA170
Dimensions
Cutting Diameter — in (DC)1.0313"
Cutting Diameter — mm (DC)26.19 mm
Cutting Diameter — Fractional1,1/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique réduite
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number172728
EAN7320760172728
File Type Download
A1701.1/32 — 3D Model STP Download
A1701.1/32 — Line Drawing PDF Download
