A2001.6X4.0
A2001.6X4.0
A2001.6X4.0
A2001.6X4.0

A2001.6X4.0

UGC DOR5969836
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.90 CAD - $9.90 CAD
$9.90 CAD
$9.90 CAD - $9.90 CAD
$9.90 CAD

Vendu en lots de : 1

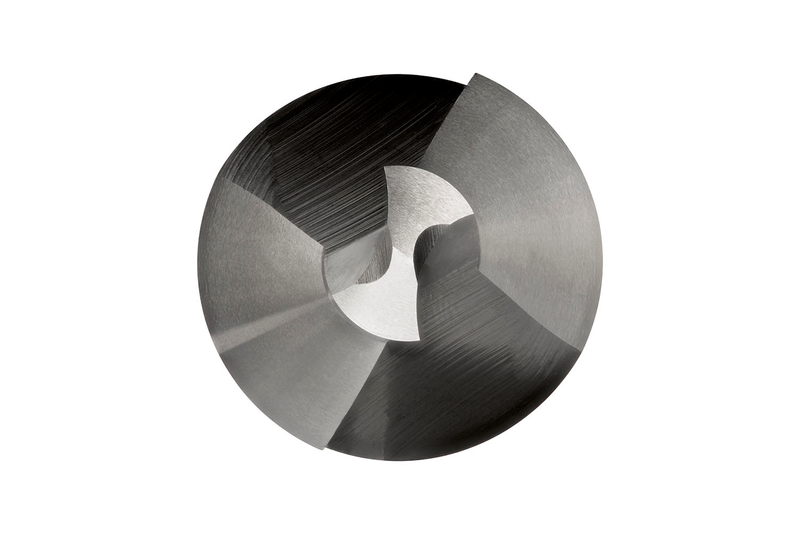

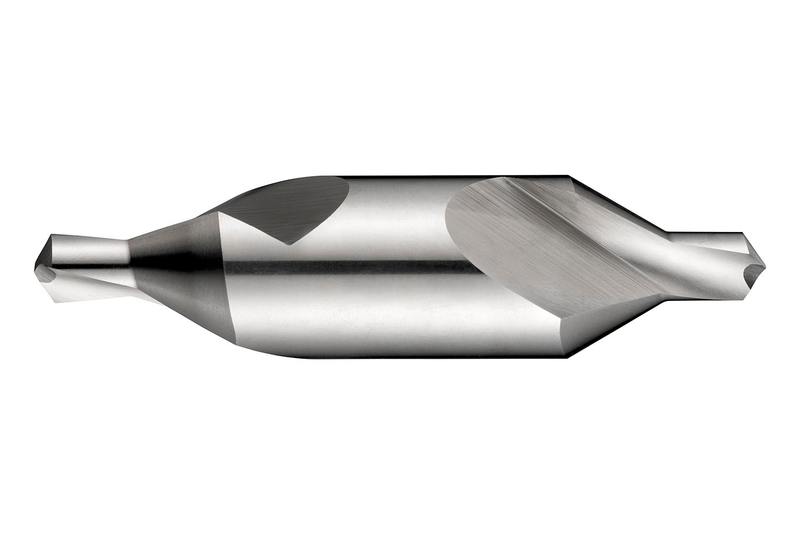

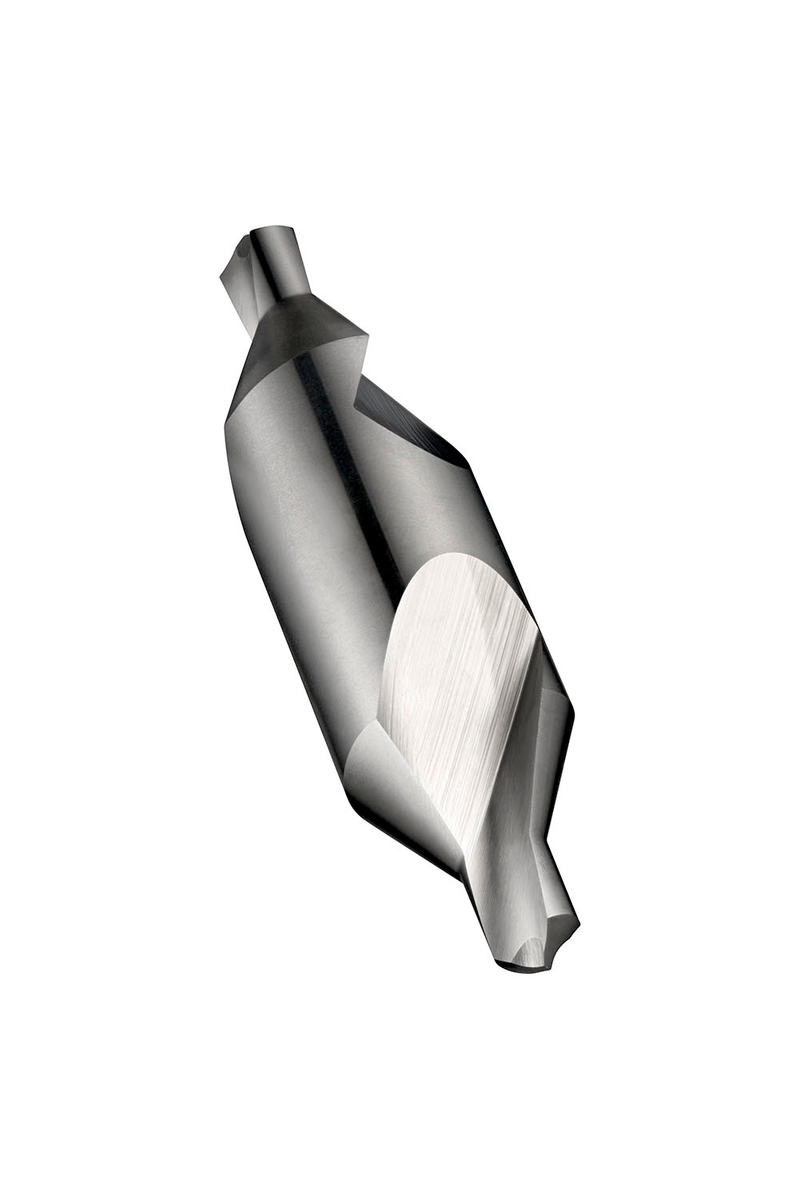

Foret à centrer (foret et chanfrein combinés) avec forme conique droite de 60°, à extrémité unique et corps cylindrique, diamètre de foret de 1,60 mm, diamètre de corps de 4,00 mm et longueur totale de 35 mm, selon la norme DIN 333A pour produire des trous de centrage normalisés selon la norme DIN 332 partie 1 forme A, HSS et finition brillante pour l'usinage des aciers de décolletage, aciers au carbone et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2001.6X4.0
GradeLumineux
Product Number5969836
Product FamilyA200
Dimensions
Cutting Diameter — in (DC)0.063"
Cutting Diameter — mm (DC)1.6 mm
Overall Length — in (OAL)1.378"
Overall Length — mm (OAL)35.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333A
Reference Numbers
EDP Number30721
EAN7320760030721
File Type Download

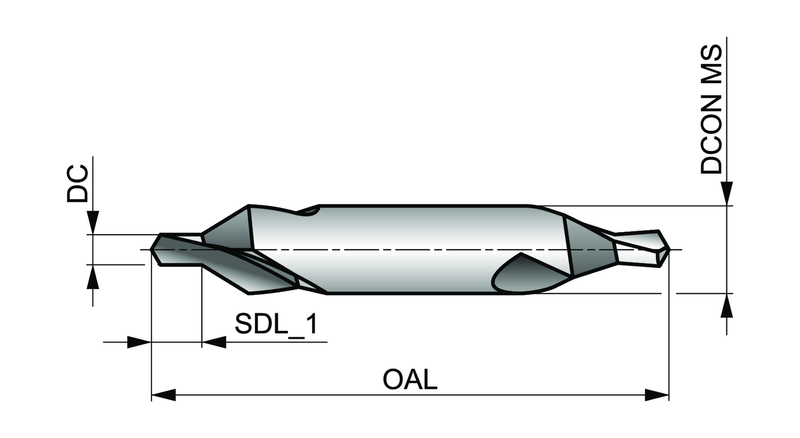

A2001.6X4.0 — Line Drawing PDF Download
