UGC DOR5969841
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$97.34 CAD - $97.34 CAD
$97.34 CAD
$97.34 CAD - $97.34 CAD
$97.34 CAD

Vendu en lots de : 1

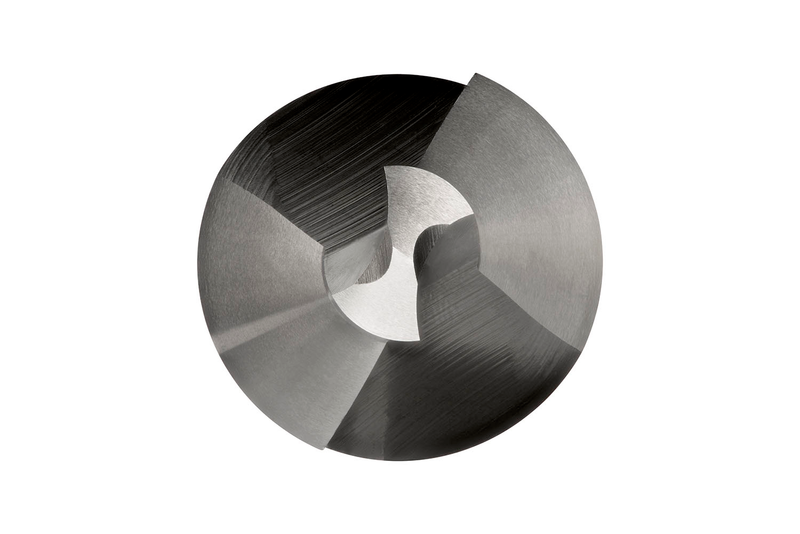

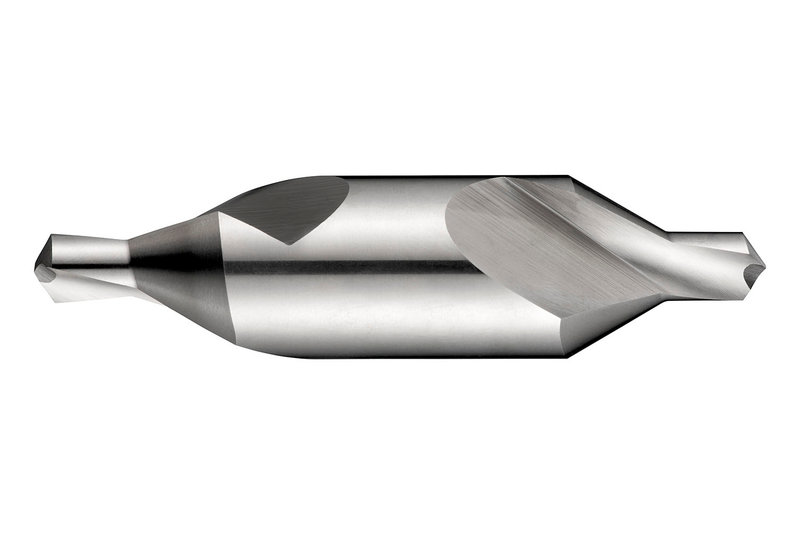

Foret à centrer (foret-taraud combiné) avec forme conique droite de 60°, à simple extrémité et corps cylindrique, diamètre de foret de 10,00 mm, diamètre de corps de 25,00 mm et longueur totale de 100 mm, selon la norme DIN 333A pour produire des trous de centrage normalisés selon la norme DIN 332 partie 1 forme A, HSS et finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone non alliés, des aciers alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20010.0X25.0
GradeLumineux
Product Number5969841
Product FamilyA200

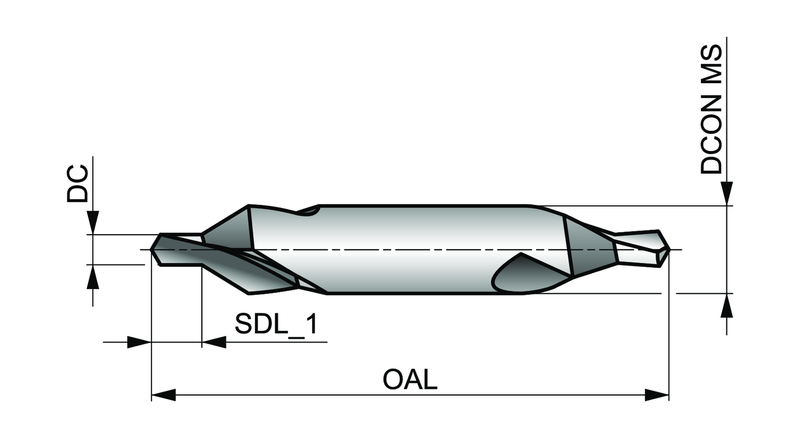

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 333A
Reference Numbers
EDP Number30738
EAN7320760030738
File Type Download
A20010,0X25,0 — Line Drawing PDF Download
