A20012,5X31,5
A20012,5X31,5
A20012,5X31,5
A20012,5X31,5

A20012,5X31,5

UGC DOR5969845
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$248.59 CAD - $248.59 CAD
$248.59 CAD
$248.59 CAD - $248.59 CAD
$248.59 CAD

Vendu en lots de : 1

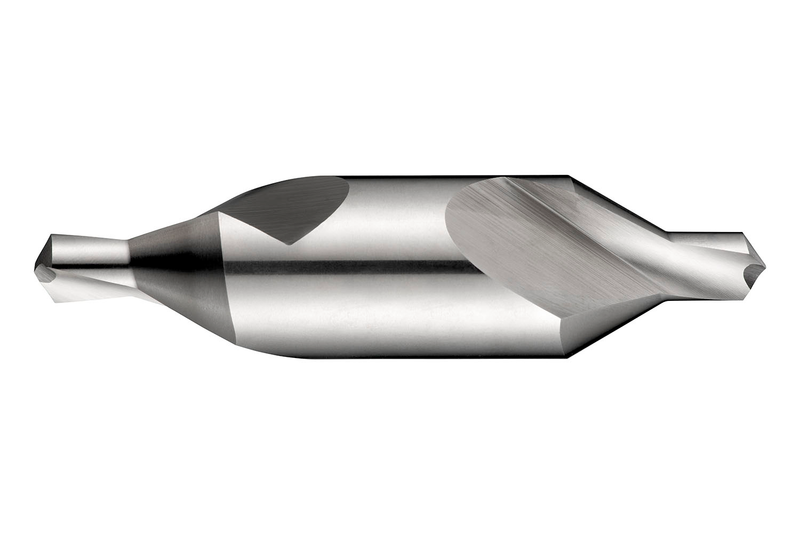

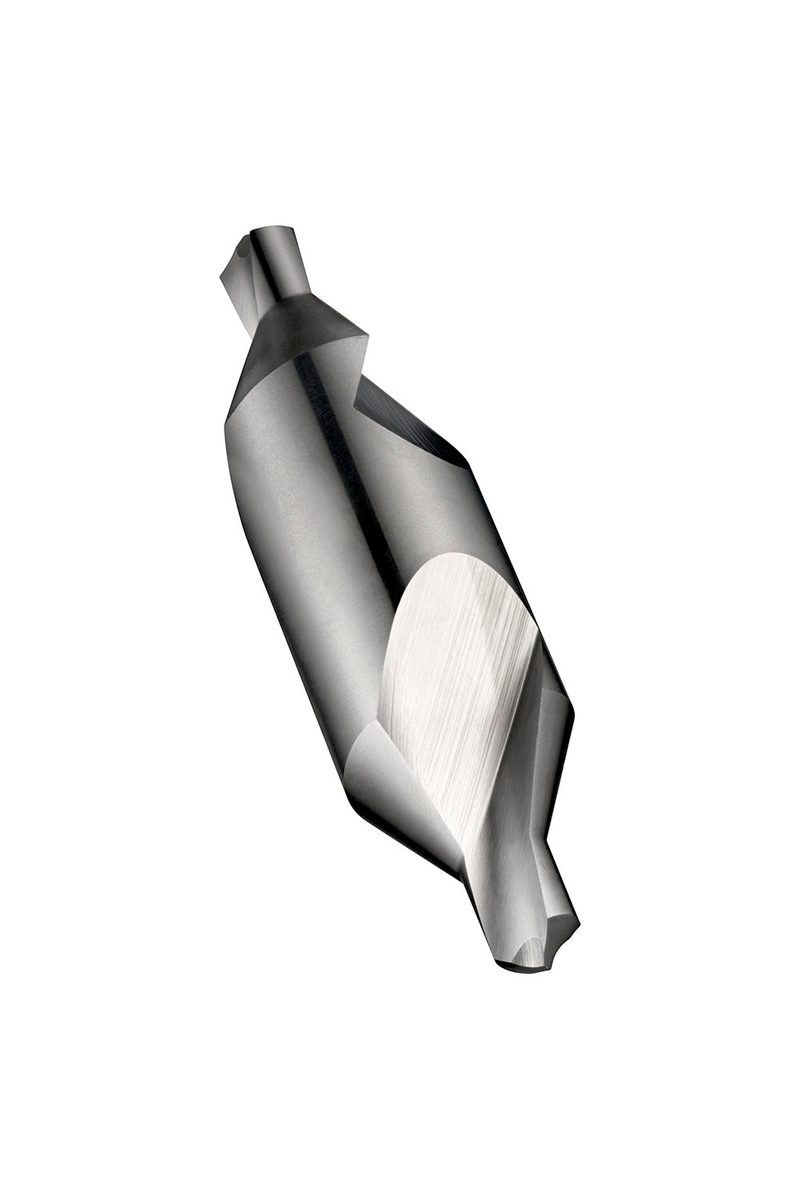

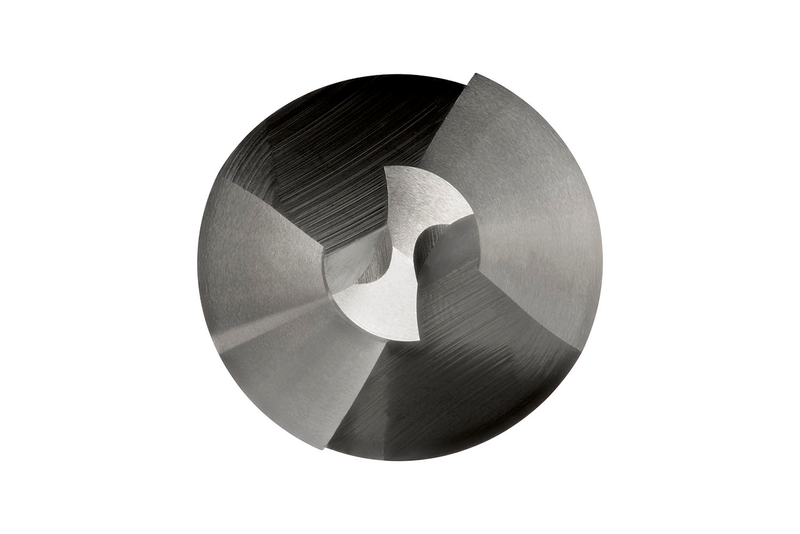

Forets à centrer (combiné perçage et chanfreinage) avec forme conique droite de 60°, à simple extrémité et corps cylindrique, diamètre de perçage de 12,50mm, diamètre de corps de 31,50mm et longueur totale de 125mm, selon la norme DIN 333A pour produire des trous de centrage normalisés selon la norme DIN 332 partie 1 forme A, HSS et finition brillante pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés et fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI)A20012.5X31.5
Product Name (ISO)A20012,5X31,5
GradeLumineux
Product Number5969845
Product FamilyA200
Dimensions
Cutting Diameter — in (DC)0.4921"
Cutting Diameter — mm (DC)12.5 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)1.2402"
Connection Dia. — mm (DCON)31.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333A
Reference Numbers
EDP Number214367
EAN7320760214367
File Type Download

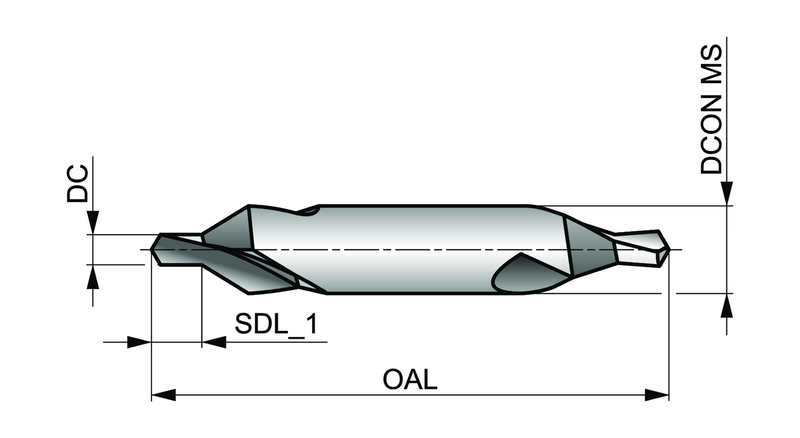

A20012,5X31,5 — Line Drawing PDF Download
