A2008.0X20.0
A2008.0X20.0
A2008.0X20.0
A2008.0X20.0

A2008.0X20.0

UGC DOR5969877
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.69 CAD - $79.69 CAD
$79.69 CAD
$79.69 CAD - $79.69 CAD
$79.69 CAD

Vendu en lots de : 1

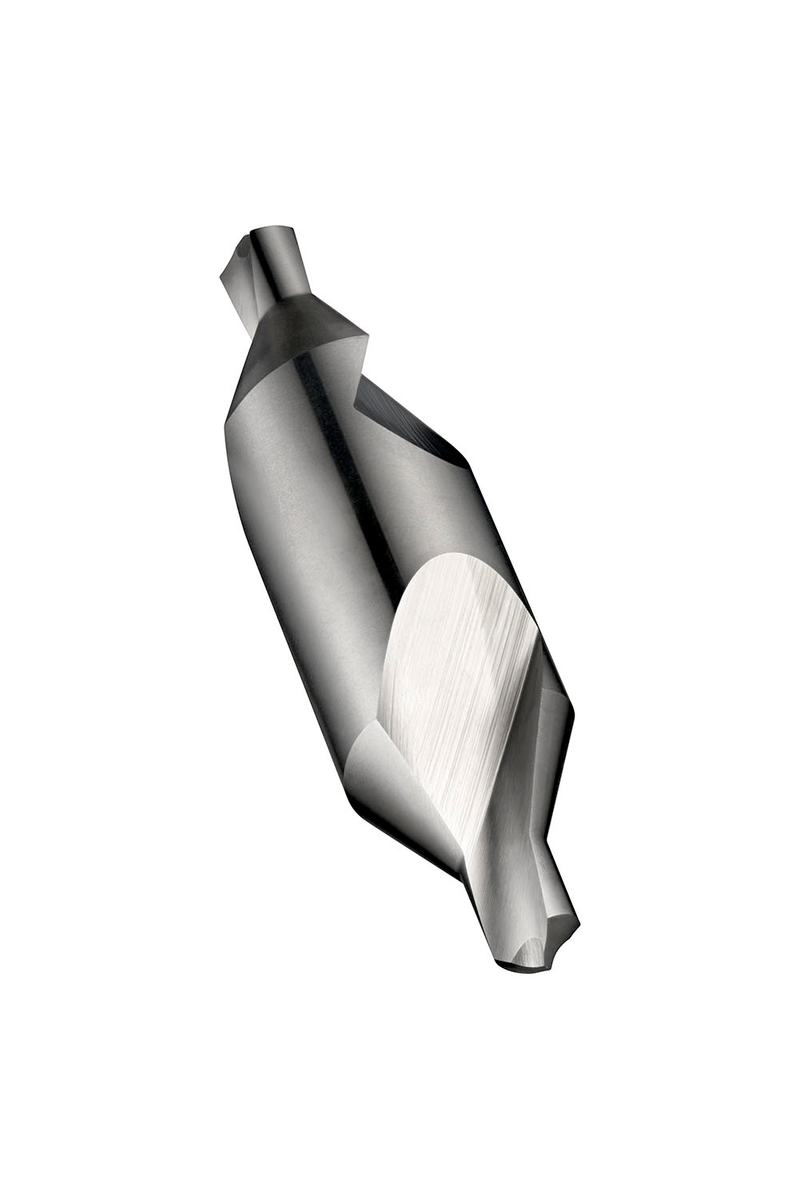

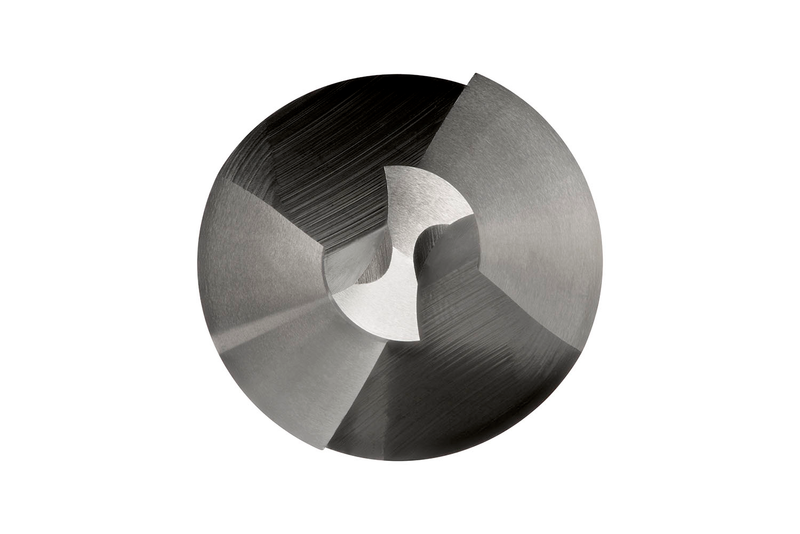

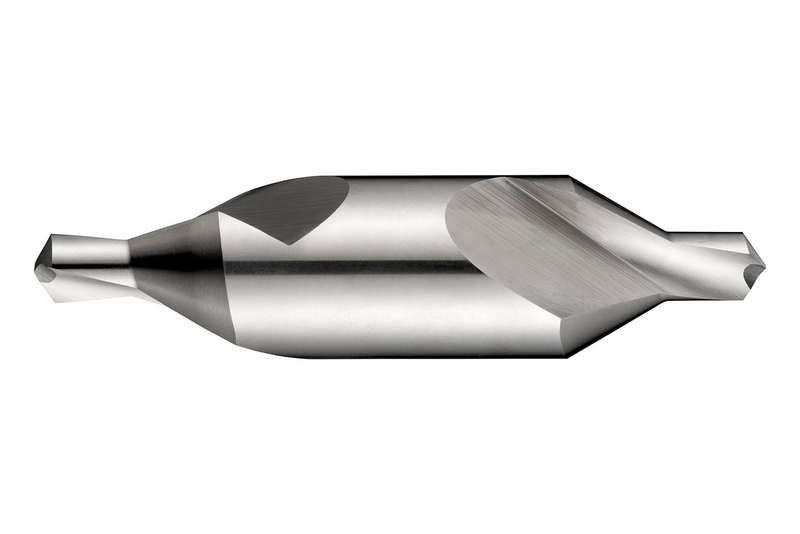

Foret à centrer (combiné perçage et chanfreinage) avec forme conique droite de 60°, à usage unique et corps cylindrique, diamètre de perçage de 8,00 mm, diamètre de corps de 20,00 mm et longueur totale de 80 mm, selon la norme DIN 333A pour produire des trous de centrage normalisés selon la norme DIN 332 partie 1 forme A, HSS et finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone et alliés, et des fontes grises

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2008.0X20.0
GradeLumineux
Product Number5969877
Product FamilyA200
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333A
Reference Numbers
EDP Number30806
EAN7320760030806
File Type Download

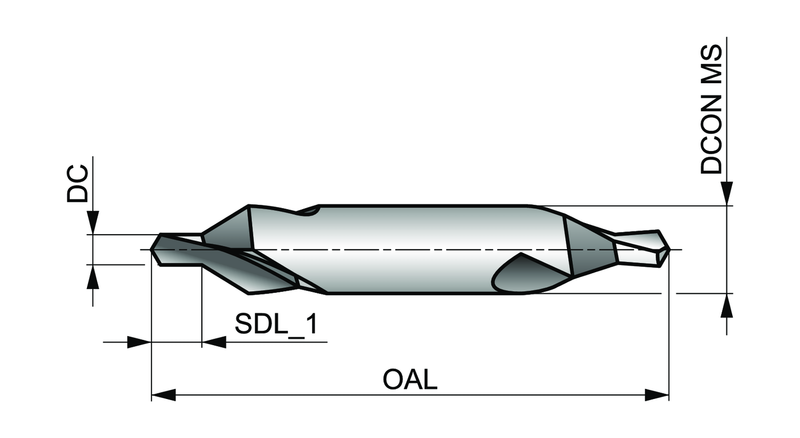

A2008.0X20.0 — Line Drawing PDF Download
